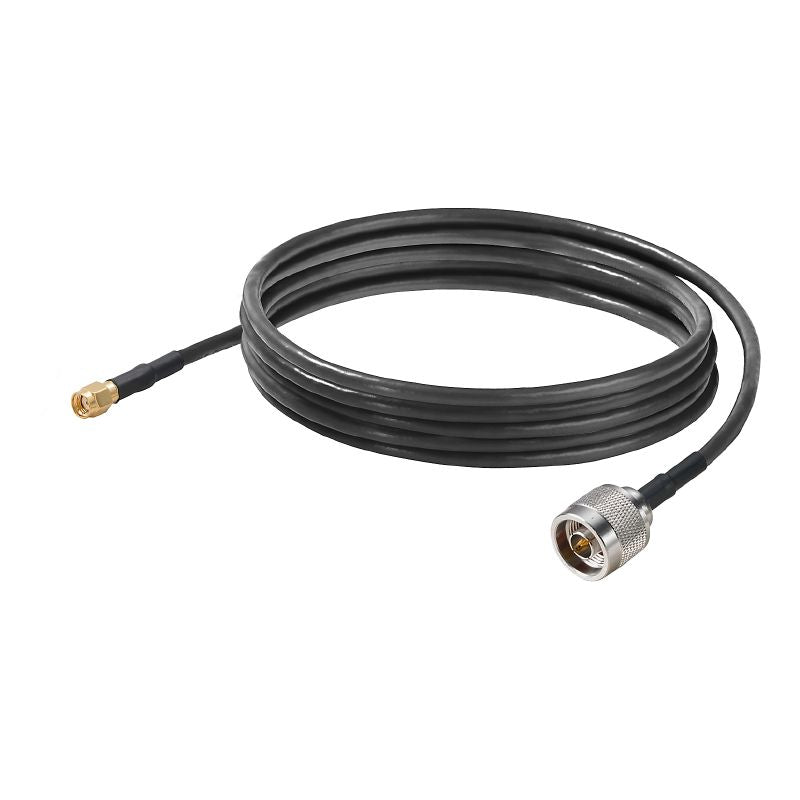

2788060000 - 5m N Male to RP-SMA Male Antenna Cable
2788060000 - 5m N Male to RP-SMA Male Antenna Cable
SKU: SKU: 2788060000 Download PDF
- 2788060000 - 5m N Male to RP-SMA Male Antenna Cable
- 2788060000 - 5m N Male to RP-SMA Male Antenna Cable
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your connectivity with this 5-meter antenna cable, which features an N male connector on one end and an RP-SMA male connector on the other Built to meet environmental standards such as RoHS, this cable also comes with specific exemptions to ensure a safe and compliant experience It is designed to perform effectively in a wide temperature range, from -40 °C to 85 °C, making it versatile for various applications.
Features and Benefits:
•Compliant with RoHS and contains lead in compliance with REACH.
•UV-resistant.
•Black sheath color.
•Min. bending radius of 25 mm.
Specifications:
| Connection 1 | N male |
| Connection 2 | RP-SMA male |
| Length | 5 m |
| Operating temperature | -40 °C...85 °C |
| Attenuation at 2.4 GHz | 0.62 dB/m |
| Attenuation at 2000 MHz | 0.56 dB/m |
| Attenuation at 5 GHz | 0.94 dB/m |
| Attenuation at 800 MHz | 0.34 dB/m |
| Material sheath | PVC |
| Sheath diameter | 5 mm |
| Classifications | {'ETIM 6.0': 'EC001682', 'ETIM 7.0': 'EC001682', 'ETIM 8.0': 'EC001682', 'ETIM 9.0': 'EC001682', 'ETIM 10.0': 'EC001682', 'ECLASS 9.0': '27-06-03-10', 'ECLASS 9.1': '27-06-03-10', 'ECLASS 10.0': '27-06-03-10', 'ECLASS 11.0': '27-06-03-10', 'ECLASS 12.0': '27-06-03-10', 'ECLASS 13.0': '27-06-03-10', 'ECLASS 14.0': '27-06-03-10', 'ECLASS 15.0': '27-06-03-10'} |
