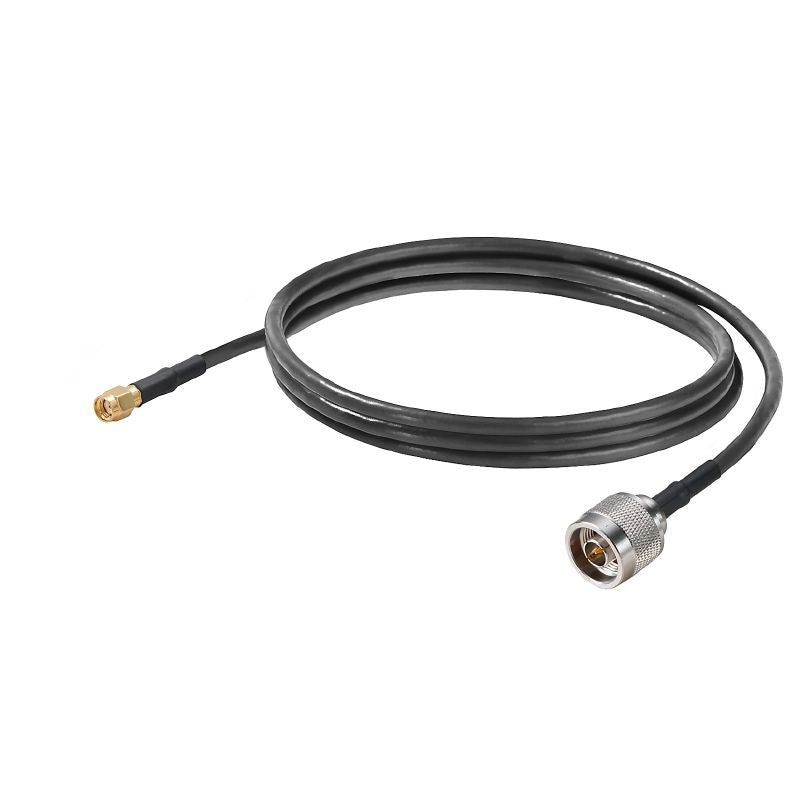

2788050000 - 3m UV-Resistant Antenna Cable with N & RP-SMA Connectors
2788050000 - 3m UV-Resistant Antenna Cable with N & RP-SMA Connectors
SKU: SKU: 2788050000 Download PDF
- 2788050000 - 3m UV-Resistant Antenna Cable with N & RP-SMA Connectors
- 2788050000 - 3m UV-Resistant Antenna Cable with N & RP-SMA Connectors
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Optimize your connectivity with this 3-meter antenna cable, featuring an N male connector on one end and an RP-SMA male connector on the other Compliant with RoHS standards, it ensures safety by being free from hazardous substances like lead Built to withstand the elements, the cable is UV-resistant and encased in a PVC sheath for enhanced durability With an operating temperature range of -40 °C to 85 °C, this cable delivers reliable performance with minimal signal loss across various frequencies.
Perfect for enhancing your electronic connections efficiently.
Features and Benefits:
•N male connector and RP-SMA male connector.
•Length of 3 meters.
•UV-resistant PVC sheath.
•RoHS compliant and free from hazardous lead.
•Designed for extreme temperatures from -40 °C to 85 °C.
Specifications:
| Attenuation at 2.4 GHz | 0.62 dB/m |
| Attenuation at 2000 MHz | 0.56 dB/m |
| Attenuation at 5 GHz | 0.94 dB/m |
| Attenuation at 800 MHz | 0.34 dB/m |
| Min. bending radius, repetitive | 25 mm |
| Sheath diameter | 5 mm |
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption | 6c |
