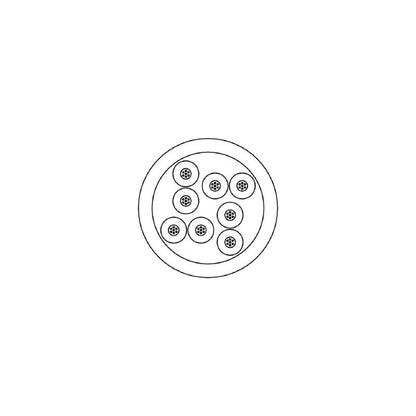

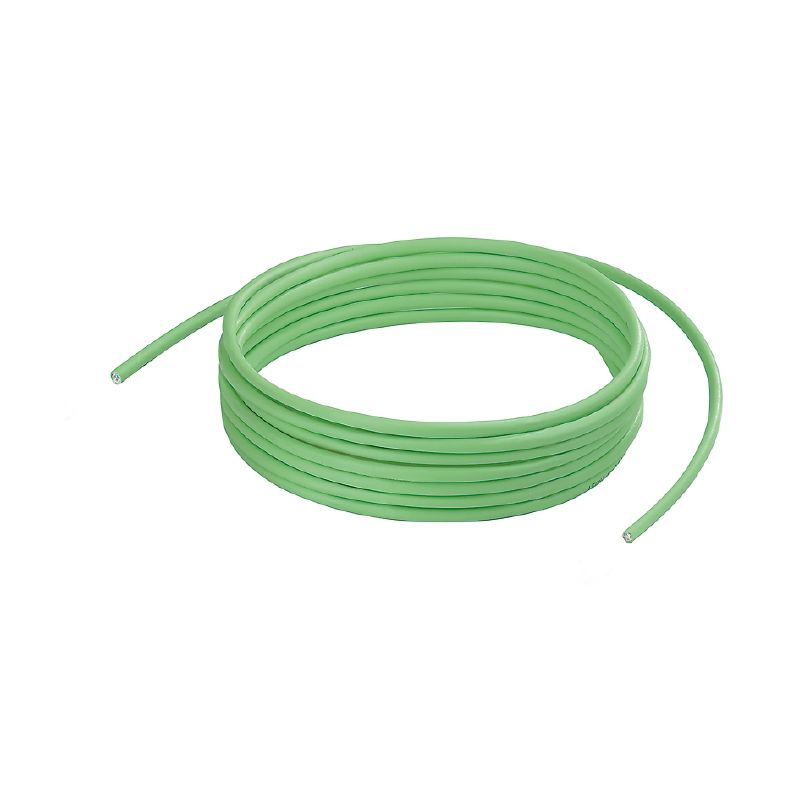

2781890000 - 1000m Cat.5e Dragline Cable with Durable PUR Construction

2781890000 - 1000m Cat.5e Dragline Cable with Durable PUR Construction

SKU: SKU: 2781890000 Download PDF

Variant:
  • 2781890000 - 1000m Cat.5e Dragline Cable with Durable PUR Construction
Regular price Now $5,121.31
Regular price BEFORE   $0.00 Sale price Now $5,121.31
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Dragline cable, a high-performance option that meets Industry standards of Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) With a generous length of 1000 meters, it offers ample coverage for various applications Its durable PUR material ensures longevity, while the cable's lightweight design at just 54 grams makes it easy to handle Designed to operate efficiently in a range of temperatures from -40 °C to 80 °C, this cable is capable of withstanding various environmental conditions, making it an excellent choice for dependable connectivity.

Features and Benefits:

    •Extremely good abrasion resistance.

    •Halogen-free, complying with IEC 60754-2 standards.

    •UV-resistant.

    •Very good resistance to oils.

    •Supports high bending cycles (5 million cycles).

    •Weight is 54 grams.

Specifications:

 Cable Length 1,000 m
 Storage Temperature -40 °C...80 °C
 Operating Temperature -40 °C...80 °C
 Installation Temperature -40 °C...80 °C
 Acceleration 5 m/s²
 Bending Cycles 5 Mio

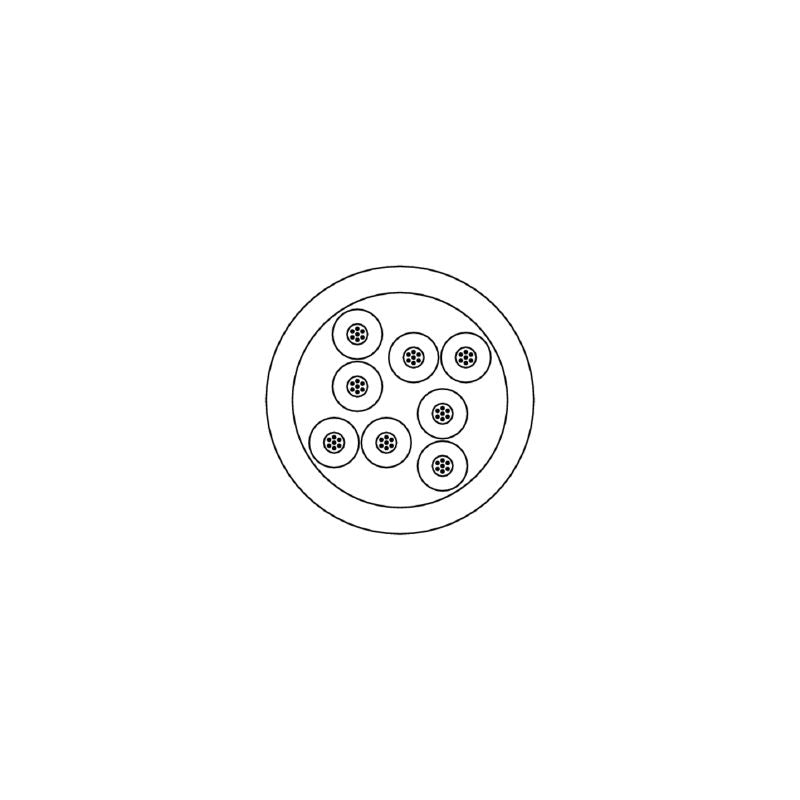

 Number of Poles 8
 Sheathing Colour green (RAL 6018)
 Max Sheath Diameter 6.8 mm
 Min Sheath Diameter 6.5 mm
 Wire Material Stranded tin-plated copper wire
 Characteristic Impedance 100 ± 15 Ω at 1–100 MHz
 Loop Resistance 290 Ω/km
 Operating Voltage 30 V
 Signal Propagation Time 5.55 ns/m
 Capacity at 800 Hz 50 nF/km
 Test Voltage 700 V rms, 50 Hz, 1 min
 Transfer Impedance 100 mΩ/m at 10 MHz
