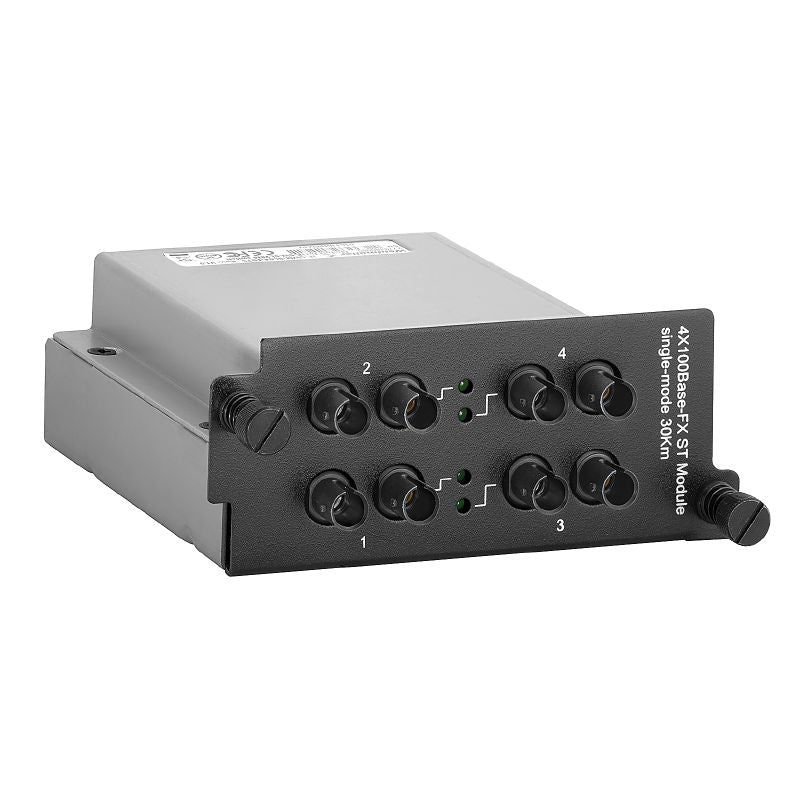

2779180000 - Fast Ethernet Module with 4 ST Ports, -40°C to 85°C
2779180000 - Fast Ethernet Module with 4 ST Ports, -40°C to 85°C
SKU: SKU: 2779180000 Download PDF
- 2779180000 - Fast Ethernet Module with 4 ST Ports, -40°C to 85°C
- 2779180000 - Fast Ethernet Module with 4 ST Ports, -40°C to 85°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your network setup with this media interface module, an essential addition to a modular switch that supports Fast Ethernet connectivity Equipped with four single-mode ST ports, it ensures reliable performance in varied conditions, functioning efficiently in temperatures ranging from -40 °C to 85 °C Ideal for robust networking needs, this module combines versatility with efficiency.
Features and Benefits:
•Compliant with RoHS standards.
•Includes four ST single-mode ports.
•Fast Ethernet transmission with a rate of 100 MBit/s.
•Supports transmission distances of up to 30 km.
Specifications:
| Order No. | 2779180000 |
| GTIN (EAN) | 4064675048541 |
| Depth | 107 mm |
| Height | 40.7 mm |
| Width | 99 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Operating altitude | up to 6000 m |
| Transmission rate | 100 MBit/s |
| Transceiver type | Singlemode |
| Connector type | ST-Duplex |
| Wavelength | 1310 nm |
| Receive power | -34 dBm to 0 dBm |
| Transmission power | -15 dBm to -8 dBm |
| Link-budget | 19 dB |
| MTBF | 401287 hours |
| Supply voltage | via Ethernet switch |
| Housing main material | Metal |
| Speed | Fast Ethernet |
| Type of mounting | Insert in module slot M1,M2,M3 |
