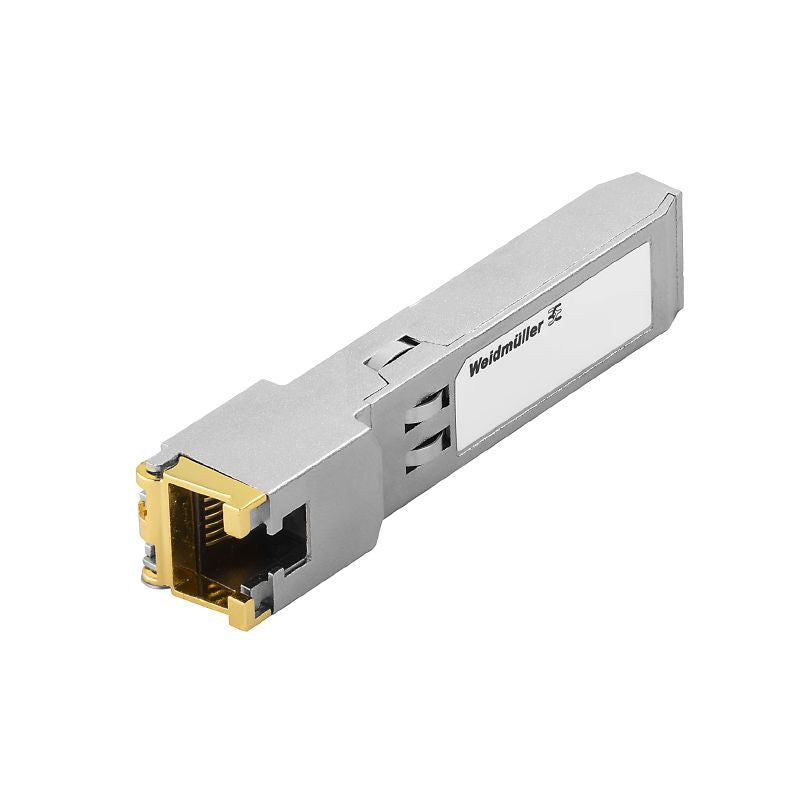

2766120000 - RJ45 SFP Transceiver for 10/100/1000 MBit/s, 0.1 km Range
2766120000 - RJ45 SFP Transceiver for 10/100/1000 MBit/s, 0.1 km Range
SKU: SKU: 2766120000 Download PDF
- 2766120000 - RJ45 SFP Transceiver for 10/100/1000 MBit/s, 0.1 km Range
- 2766120000 - RJ45 SFP Transceiver for 10/100/1000 MBit/s, 0.1 km Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a high-performance SFP transceiver that enables seamless transmission at speeds of 10/100/1000 MBit/s via an RJ45 connector, effective up to a distance of 01 km This robust device operates smoothly within a temperature range of -40 °C to 85 °C, ensuring reliability in various environments It adheres to RoHS regulations and holds a UL certification (E230683) for added assurance Please note that this transceiver does not feature digital diagnostic monitoring (DDM), but it does support auto negotiation and runs in full-duplex mode for efficient data transmission.
Features and Benefits:
•Supports transmission rates of 10/100/1000 MBit/s.
•RJ45 connector type.
•Compliant with RoHS without exemption.
•Operating temperature range of -40 °C to 85 °C.
•Full-duplex mode operation.
Specifications:
| Transmission distance, typ. | 0.1 km |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Supply voltage | 3.3 V (via Ethernet switch) |
| Type of mounting | Insert in SFP slot |
| EMC standards | EN 55032, EN 55035 |
| Safety standard | UL 62368-1 |
