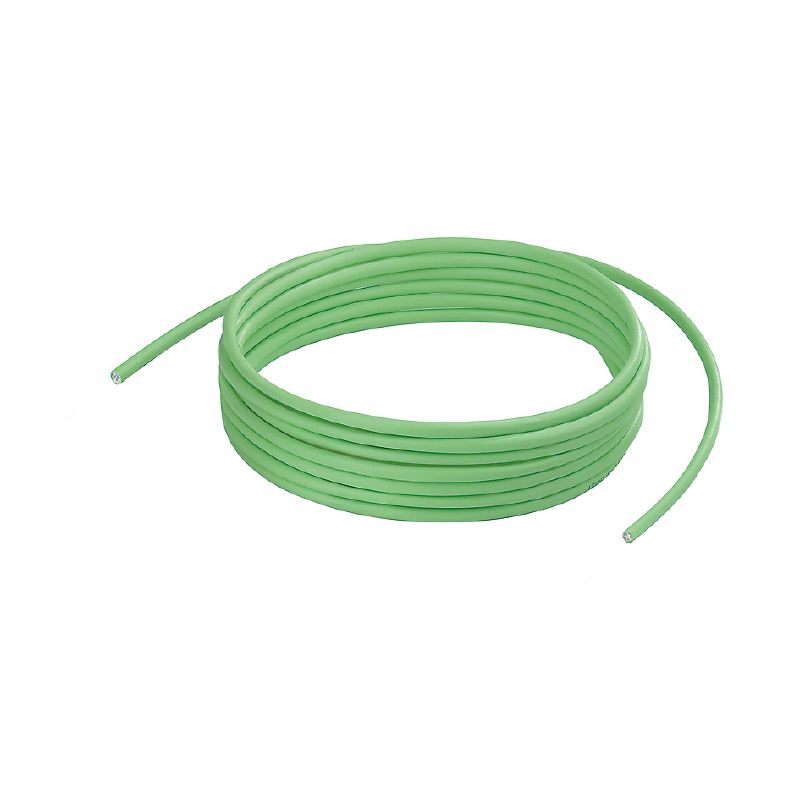

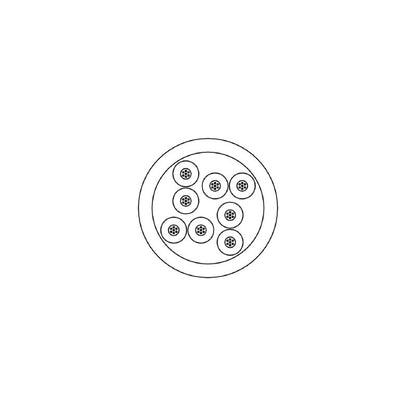

2763440000 - 500m PVC Cat.5 Installation Cable, RoHS Compliant

SKU: SKU: 2763440000 Download PDF

Select a Variant:

2763440000 - 500m PVC Cat.5 Installation Cable, RoHS Compliant

SET THE QTY:

Now $1,319.21 Web pricing policy

~~BEFORE $0.00~~ Now $1,319.21 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliable connectivity with our PVC installation cable, expertly crafted to meet both Cat5 and Cat5e standards This extensive 500-meter cable comes conveniently packaged on a sturdy plywood reel, weighing 11,250 grams It adheres strictly to RoHS regulations without any exemptions and contains no substances of very high concern (SVHC) above 01wt% Designed for versatility, it can operate seamlessly in temperatures ranging from -40 °C up to 80 °C, making it suitable for a variety of environments.

Features and Benefits:

•Designed for Cat.5 and Cat.5e standards.

•PVC sheathing for durability.

•Compliant with RoHS and REACH regulations.

•Stored and operated correctly within specified temperature ranges.

Specifications:

Insulation	PE
Number of poles	8
Number of wires	8
Resistance to oils	No
Resistance to spread of flame	in accordance with IEC 60332-1, EN 13501-6 class ECa
Sheathing colour	green (RAL 6018)
Shielded	Yes
Test voltage: wire-wire-shield	700 V AC
Cable specific standards	Impervious to smoke: No

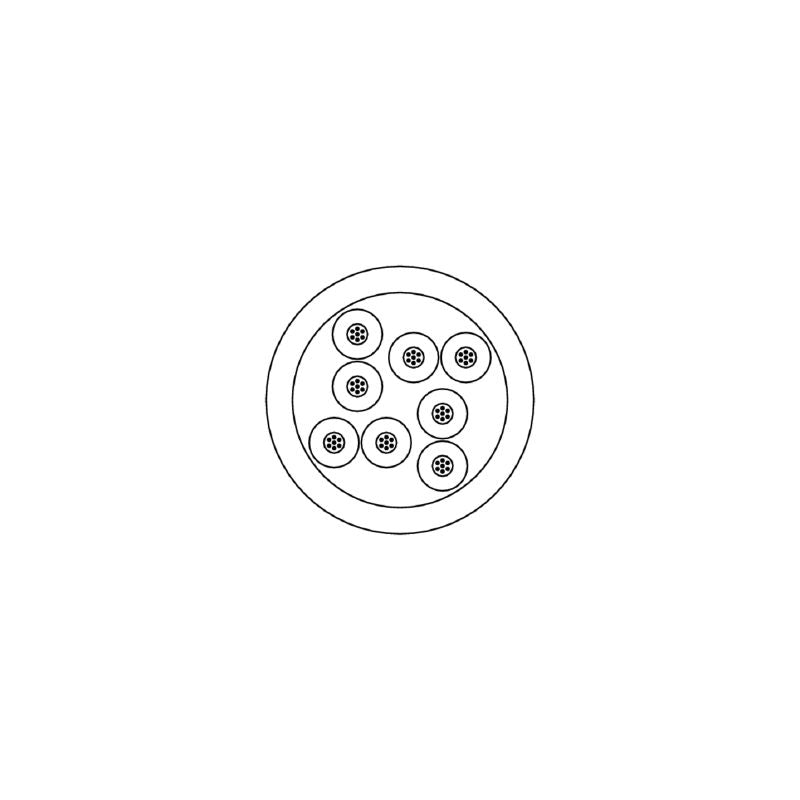

Cable structure	Twisted pair
Colour sequence or wires - wire pairs	white/blue - blue, white/orange - orange, white/green - green, white/brown - brown
Complete shielding	Aluminium foil, Shielding braid made from copper wiring
Cross-section	42AWG 24/1 - 420.205 mm²
Insulation cross-section	1.04 mm
Material sheath	PVC
Overlap of shielding braid	65 %
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.3 mm
Sheathing material thickness	0.5 mm
Shielding	SF/UTP
Shielding braid thickness	0.1 mm
Standard designations	SF/UTP
Strands	1
Wire core insulation thickness	0.25 mm
Wire material	Non-insulated copper wire
Capacity at 1 kHz	50 nF/km
Category	Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance	100 ± 5 Ω at 100MHz
Delay skew	15 ns/100m
Loop resistance	190 Ω/km
Resistance differential	3 %
Shield attenuation	65 dB at 100 Mhz
Signal propagation time	4.5 ns/m
Transfer impedance	{'at 1MHz': '20 mΩ/m', 'at 10 MHz': '10 mΩ/m', 'at 30MHz': '10 mΩ/m'}
Abrasion resistance	good
Fire propagation	No
Impervious to smoke	No
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	10 x cable diameter
