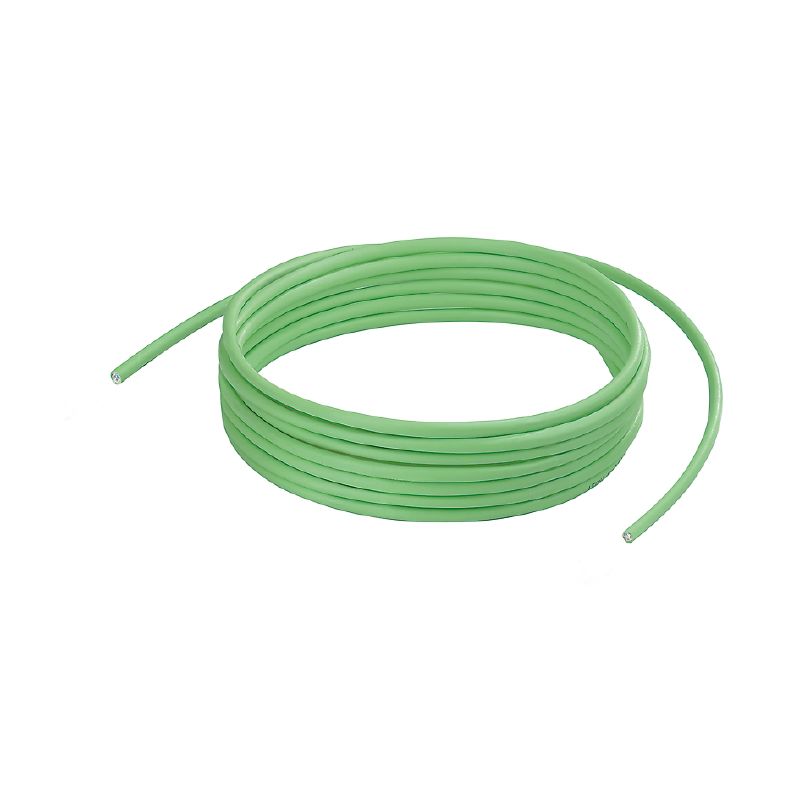

2763430000 - 500m PROFINET Cat.5 Cable, PVC, RoHS Compliant

SKU: SKU: 2763430000 Download PDF

Select a Variant:

2763430000 - 500m PROFINET Cat.5 Cable, PVC, RoHS Compliant

SET THE QTY:

Now $1,605.92 Web pricing policy

~~BEFORE $0.00~~ Now $1,605.92 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a premium installation cable engineered specifically for PROFINET applications, adhering to Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) specifications This robust cable stretches an impressive 500 meters and is conveniently wound on a sturdy plywood reel It meets RoHS standards, ensuring it is free from any substances of very high concern (SVHC) above 01 wt% Designed for exceptional performance, this cable operates effectively in a wide range of temperatures, from -40 °C to 80 °C, making it adaptable for various environments during storage, operation, and installation.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Suitable for ambient temperatures of -40 °C to 80 °C.

•Packaged on a plywood reel for convenience.

•Core cross-section of 0.33 mm².

•Complete shielding with aluminium foil and copper braid.

•UV-resistant, complying with UL 1581.

•Good abrasion resistance.

Specifications:

Core cross-section	0.33 mm²
Insulation	PE
Number of poles	4
Number of wires	4
Resistance to oils	limited
Resistance to spread of flame	in accordance with IEC 60332-1 / UL 1685
Sheathing colour	green (RAL 6018)
Shielded	Yes
Test voltage: wire-wire-shield	2000 V eff, 50 Hz, 1 min
Standard, additional standards	UL-File E11901 Vol.3 Sec.1 Page 2 Verified Cat. 5e
Standard, assembly	UL-Style 21694

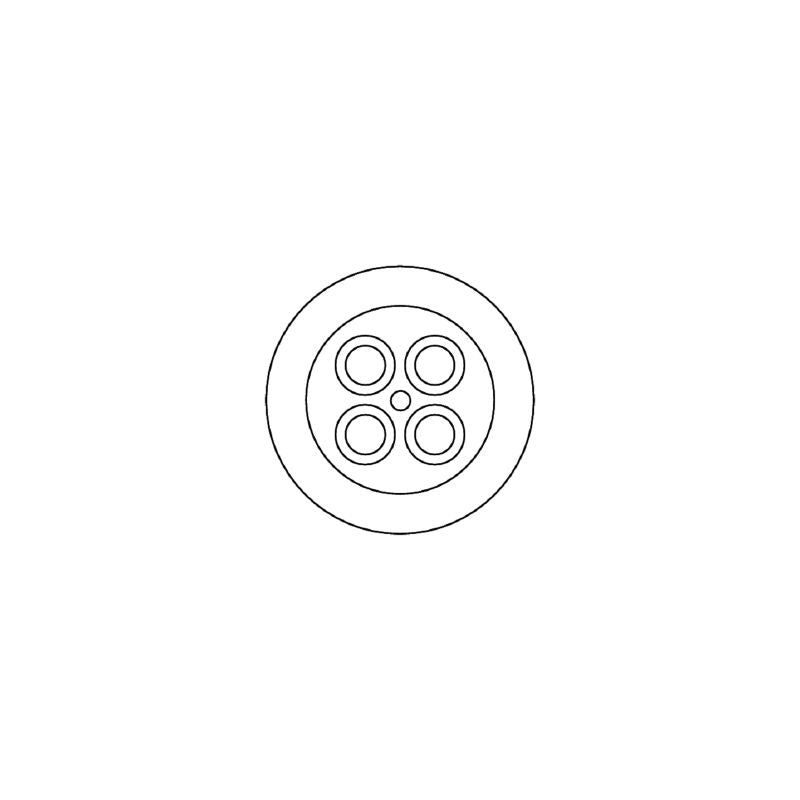

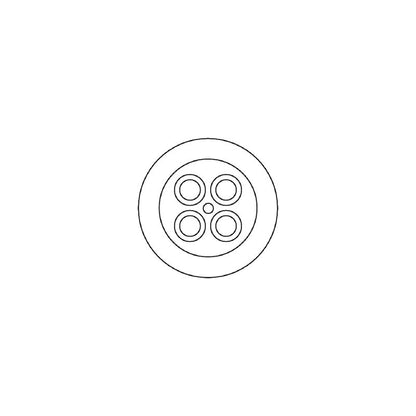

Arrangement of wire cores	Star-quad
Cable structure	4*AWG 22/1 - 0.33 mm²
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.3 mm
Sheathing material thickness	0.9 mm
Electrical properties of cable	{'Capacity at 1 kHz': '52 nF/km', 'Category': 'Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)', 'Characteristic impedance': '100 ± 5 Ω at 100MHz', 'Delay skew': '40 ns/100m', 'Loop resistance': '115 Ω/km', 'Operating voltage (UL rating)': '600 V', 'Signal propagation time': '5.3 ns/m', 'Transfer impedance': '10 mΩ/m at 10 MHz'}
