Description:

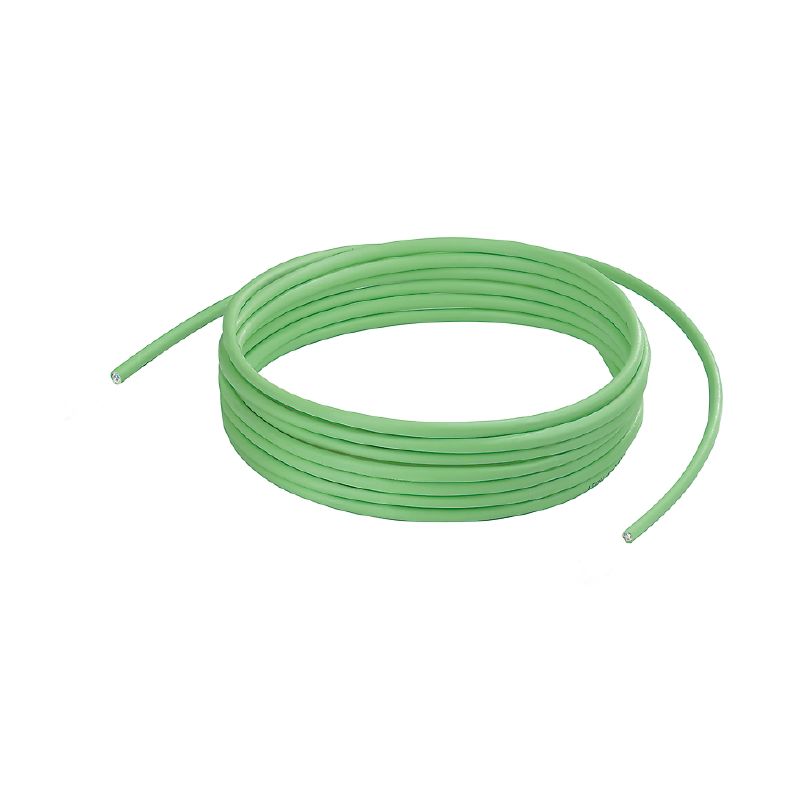

Ensure reliable installations with this 500-meter installation cable that adheres to Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards Crafted from durable PUR material, this cable is wound on a sturdy plywood reel for easy handling Fully compliant with environmental regulations, it meets RoHS criteria without any exemptions and contains no SVHC exceeding 01 wt% It operates effectively in temperatures ranging from -40 °C to 75 °C, making it suitable for installation in environments between -20 °C and 60 °C.

Features and Benefits:

•Halogen-free according to IEC 60754-2.

•Very good abrasion resistance.

•Complete shielding with aluminium foil and copper wiring.

•Twisted pair arrangement.

•Green sheathing color (RAL 6018).

Specifications:

Length	500 m
Net weight	21,500 g
Storage temperature	-40 °C...75 °C
Operating temperature	-40 °C...75 °C
Installation temperature	-20 °C...60 °C
Halogen	halogen-free, according to IEC 60754-2
Insulation	PE
Number of poles	8
Number of wires	8
Resistance to oils	in accordance with IEC 60811-2-1
Resistance to spread of flame	in accordance with IEC 60332-1, EN 13501-6 class FCa
Sheathing material thickness	0.5 mm
Sheath diameter, max	6.7 mm
Sheath diameter, min	6.3 mm
Shielded	Yes
Test voltage: wire-wire-shield	700 V AC
Characteristic impedance	100 ± 5 Ω at 100MHz
Delay skew	15 ns/100m
Loop resistance	190 Ω/km
Shield attenuation	65 dB at 100 Mhz
Signal propagation time	4.5 ns/m
Transfer impedance	{'1MHz': '20 mΩ/m', '10MHz': '10 mΩ/m', '30MHz': '10 mΩ/m'}
Min. bending radius, once only	5 x cable diameter
Min. bending radius, repetitive	10 x cable diameter

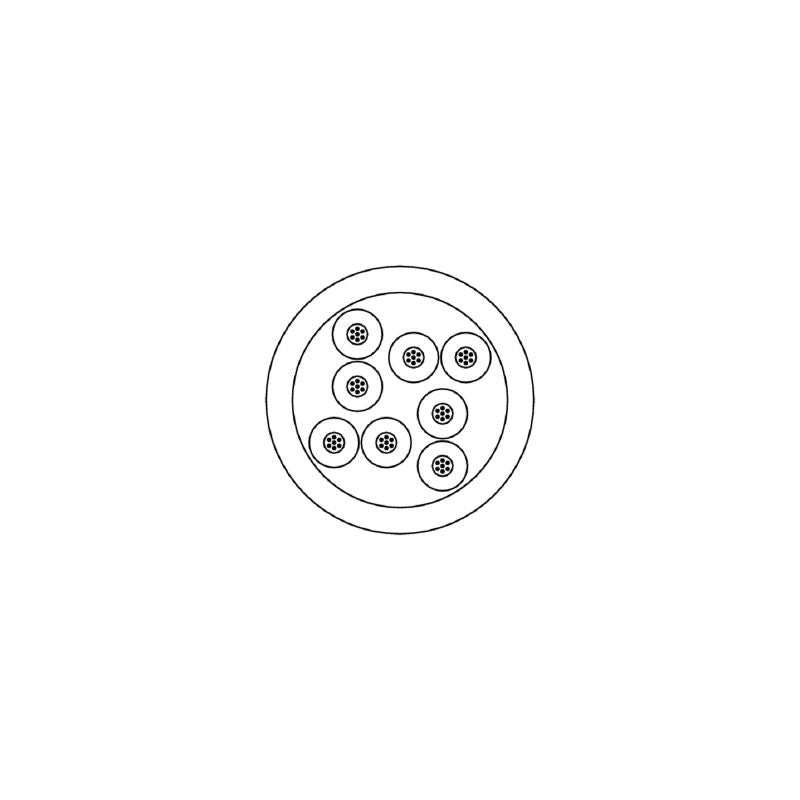

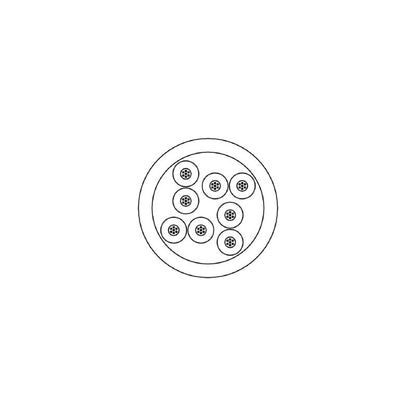

Cable structure	{'Arrangement of wire cores': 'Twisted pair', 'Colour sequence or wires - wire pairs': 'white - blue, white - orange, white - green, white - brown'}
Wire material	Non-insulated copper wire
