2726050400 - 40m M8 SPE Patch Cable with IP67 Rating

SKU: SKU: 2726050400 Download PDF

Select a Variant:

2726050400 - 40m M8 SPE Patch Cable with IP67 Rating

SET THE QTY:

Now $208.06 Web pricing policy

~~BEFORE $0.00~~ Now $208.06 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

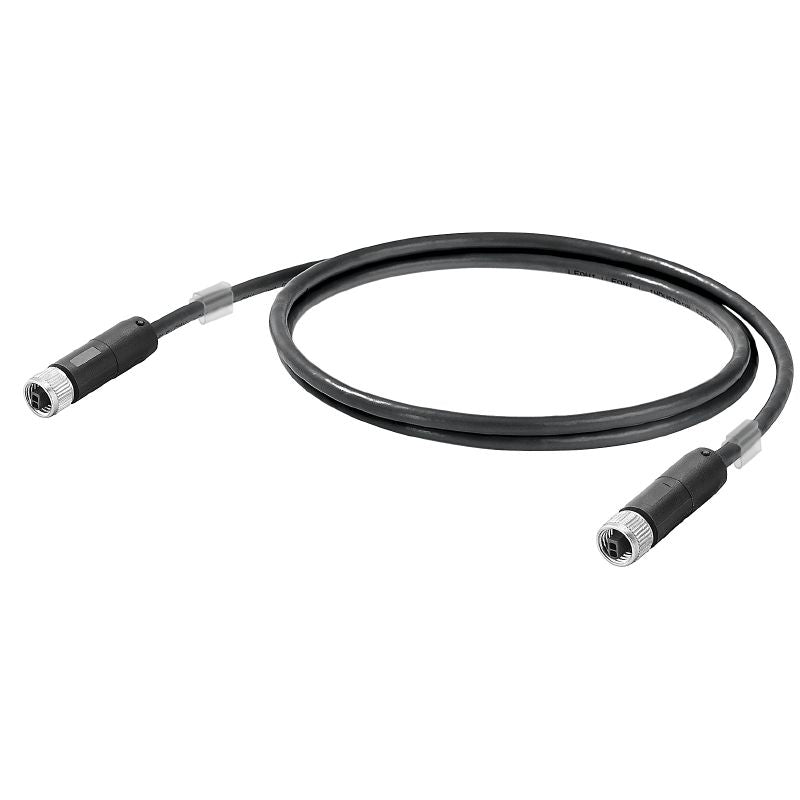

Experience reliable connectivity with this M8 SPE patch cable, engineered for IP67-rated environments Featuring straight M8 SPE connectors that adhere to IEC63171-5 standards, this cable measures an impressive 40 meters in length, making it ideal for various applications where durability and performance are paramount.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•Suitable for operating temperatures from -40 °C to 85 °C.

•Dielectric strength of 1000 V DC between contact-to-contact and 2250 V DC between contact-to-shield.

•Complete shielding made from copper wiring.

•UV-resistant and halogen-free.

•Cable structure includes a PVC sheath and no more than 2 wires with an overlap of shielding braid of 80%.

Specifications:

Order No.	2726050400
Length	40 m
Current-carrying capacity	3.5 A
Rated voltage (DC)	60 V
Nominal current	3.5 A
Transmission rate	10/100 MBit/s, 1000 MBit/s
Sheath diameter, max.	5.3 mm
Sheath diameter, min.	4.9 mm
Colour coding	white / blue
Armour	STP
Capacity at 800 Hz	1.6 nF/km
Characteristic impedance	100 ± 15 Ω at 20 MHz

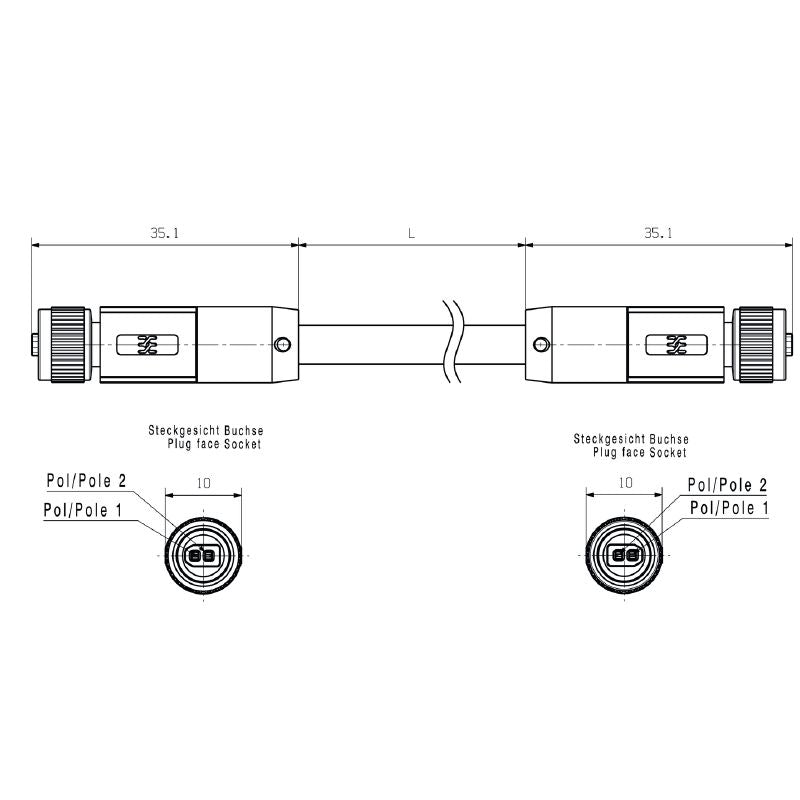

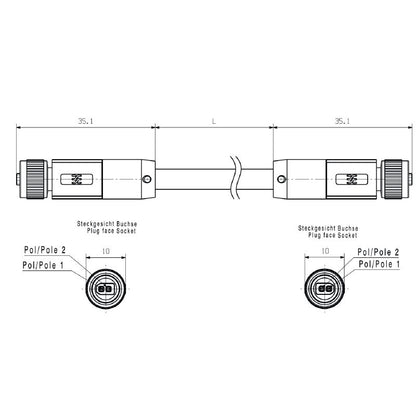

Plug left	M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded
Plug right	M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded
Electrical properties of cable	{'Resistance differential': '2%', 'Test voltage: wire-wire-shield': '1 kV DC, 1 min'}
