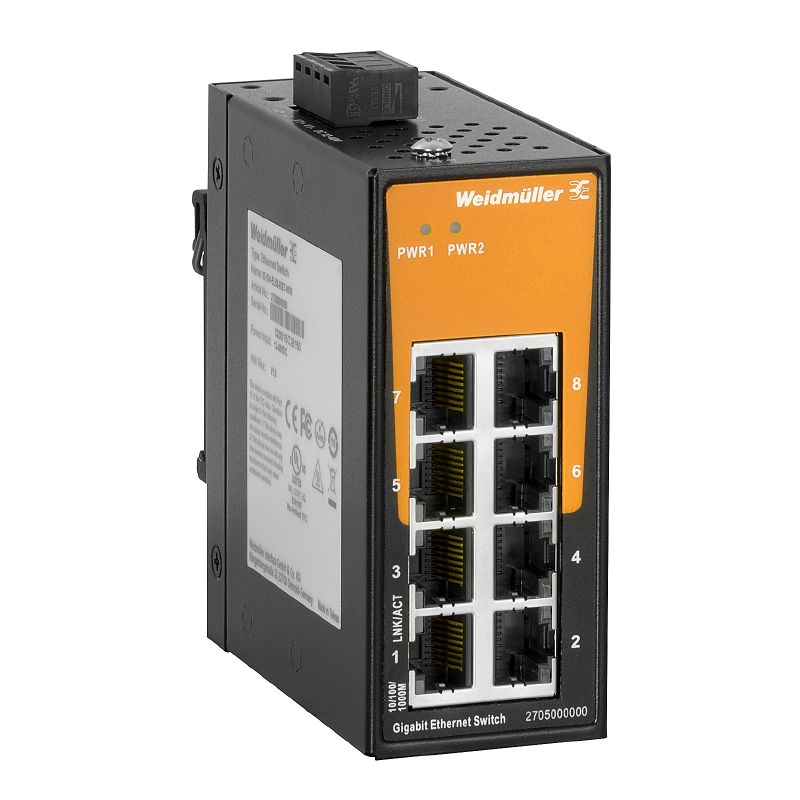

2705000000 - 8-Port Gigabit Ethernet Network Switch, -40°C to 75°C
2705000000 - 8-Port Gigabit Ethernet Network Switch, -40°C to 75°C
SKU: SKU: 2705000000 Download PDF
- 2705000000 - 8-Port Gigabit Ethernet Network Switch, -40°C to 75°C
- 2705000000 - 8-Port Gigabit Ethernet Network Switch, -40°C to 75°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience seamless connectivity with this unmanaged network switch, featuring eight RJ45 ports optimized for Gigabit Ethernet Engineered to operate in challenging conditions, it boasts an IP30 rating and a temperature tolerance of -40 °C to 75 °C With UL certification number E141197, this switch meets multiple industry standards, making it an ideal choice for reliable performance in varied environments, whether in operation or storage.
Features and Benefits:
•Supports eight RJ45 ports for high-speed connectivity.
•Compliant with RoHS.
•Metal housing with IP30 protection.
•Designed for DIN rail mounting.
•Unmanaged switch technology for straightforward installation.
Specifications:
| Depth | 90 mm |
| Height | 95 mm |
| Width | 41 mm |
| Net weight | 365 g |
| Temperature range (Operating) | -40 °C to 75 °C |
| Temperature range (Storage) | -40 °C to 85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Supply voltage | 12/24/48 V DC |
| Current consumption (12 V) | 0.42 A |
| Current consumption (24 V) | 0.17 A |
| Current consumption (48 V) | 0.09 A |
| Bandwidth backplane | 16 Gbit/s |
| MAC table size | 4 K |
| Packet buffer size | 1.5 Mbit |
| Protection degree | IP30 |
| EMC standards | EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A |
| Switch type | unmanaged |
| Jumbo frame support | up to 9 KB |
| Flow control | IEEE 802.3x flow control |
