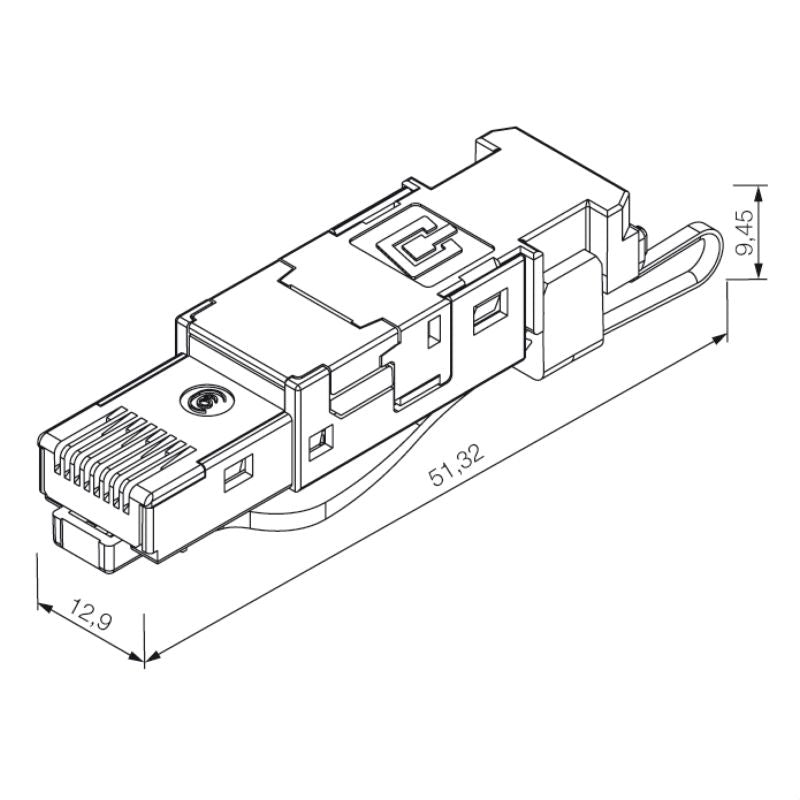

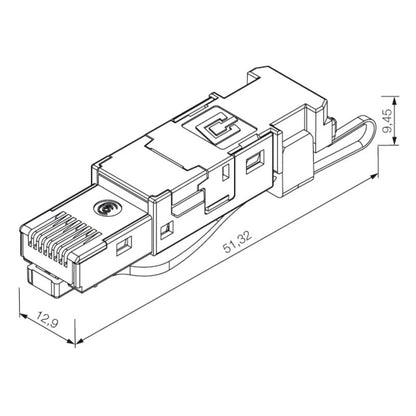

2703730000 - Compact RJ45 IDC Plug with Locking Lever for Communication Systems (Pack of 120)

2703730000 - Compact RJ45 IDC Plug with Locking Lever for Communication Systems (Pack of 120)

SKU: 2703730000   Download PDF

Select a Variant:
  • 2703730000 - Compact RJ45 IDC Plug with Locking Lever for Communication Systems (Pack of 120)
Qty:
Now $2,585.56   Web pricing policy
BEFORE   $0.00 Now $2,585.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

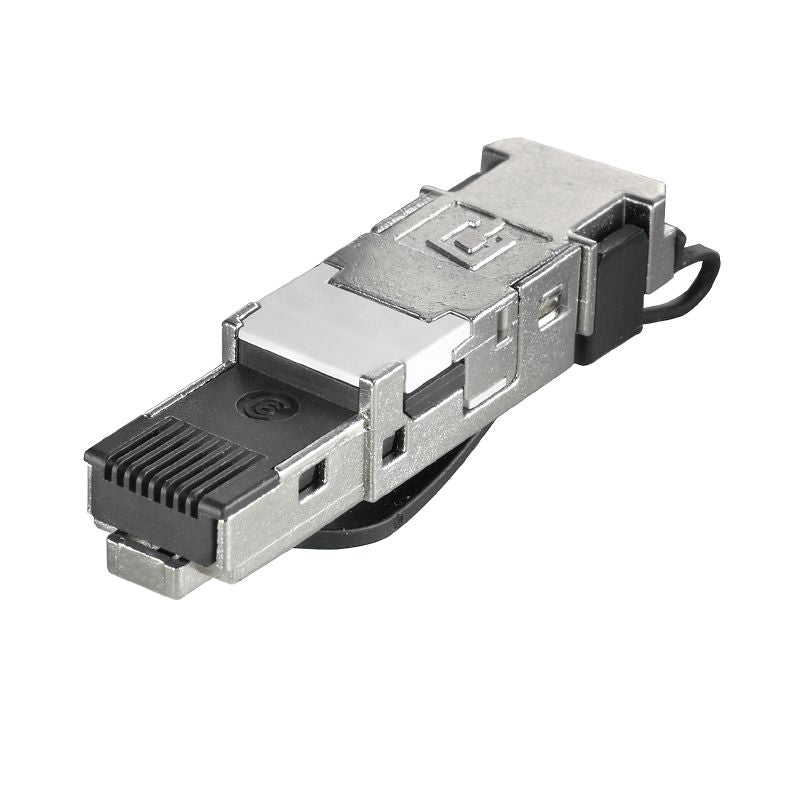

Introducing the RJ45 IDC plug from the IE-PS-RJ45-FH-BK series, identifiable by the order number 2703730000 This versatile plug boasts a compact design, making it perfect for a wide range of applications Equipped with a robust integrated locking lever made from PA UL94-V0 material, it ensures a secure connection The insulation accommodates wire cross-sections ranging from 085 mm to 16 mm Featuring eight field-assembled color-coded wires, this plug is essential for communication systems and is compatible with TIA A/B/ProfiNet standards, making it ideal for multiport use.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Ability to withstand 750 plugging cycles.

    •High-quality gold over nickel contact surface.

    •Zinc diecast housing for durability.

    •Supports various conductor connection cross-sections.

    •MICE classification ratings provide assurance of performance.

    •PROFINET installation.

Specifications:

 Connection 1 RJ45
 Material locking lever PA UL94-V0
 Material strain relief PA UL94-V0

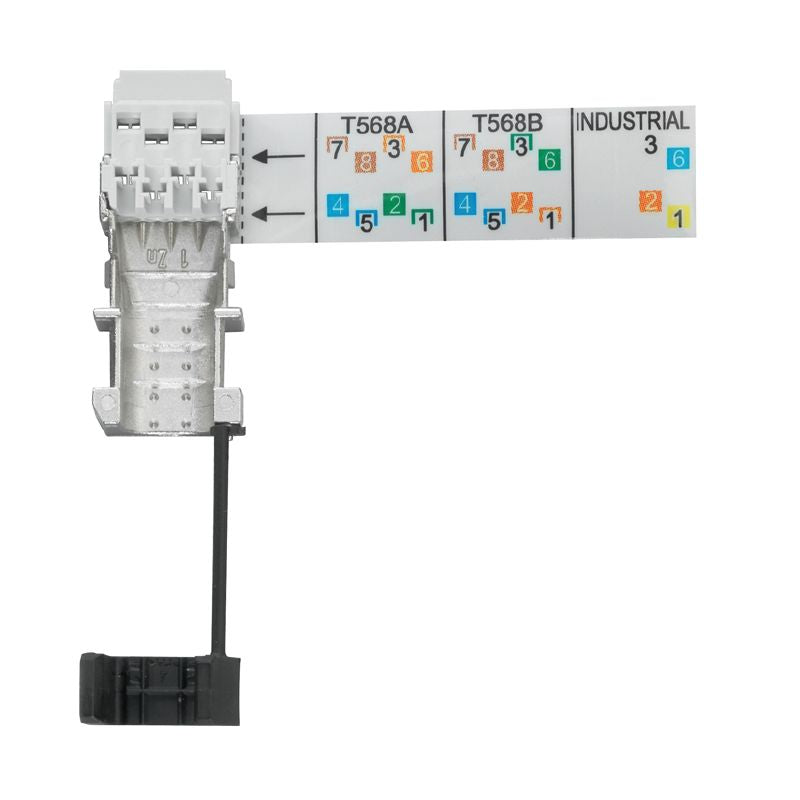

 Composition Eight-wire field-assembled RJ45 plug with colour coding on the plug, TIA A/B/ProfiNet, multiport-ready
 Housing main material Zinc diecast
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.6 mm
 Contact material Phosphorus bronze
 Contact surface Gold over nickel
 Connection diameter, solid 0.41...0.64 mm
 Conductor connection cross-section, solid (AWG) AWG 24/1...AWG 22/1
 Connection diameter, flexible 0.48...0.76 mm
 Conductor connection cross-section, flexible (AWG) AWG 26/7...AWG 22/7
 Wire connection cross section, finely stranded, min. 0.141 mm²
 Conductor connection cross-section, flexible 0.14...0.35 mm²
 MICE classification M M1
 MICE classification I I1
 MICE classification C C1
 MICE classification E E3
 Sheath diameter, min. 5.5 mm
 Sheath diameter, max. 8.5 mm
 Shielding 360° shield contact
 Insertion force ≤ 30 N
 Ability to reconnect ≥ 10 cycles (for the same or larger cross-section)
 Electrical properties {'Contact resistance': '≤ 20 mΩ', 'Current-carrying capacity at 50 °C': '1 A', 'Dielectric strength, contact/contact': '≥ 1000 V AC/DC', 'Dielectric strength, contact/shield': '≥ 1500 V AC/DC', 'Insulation resistance': '≥ 500 MΩ'}
 PoE / PoE+ conforming to IEEE 802.3at
 General standards PROFINET installation instructions, IEC 60529, UL 1863
 ETIM classification EC001121
 ECLASS 27-44-03-90
