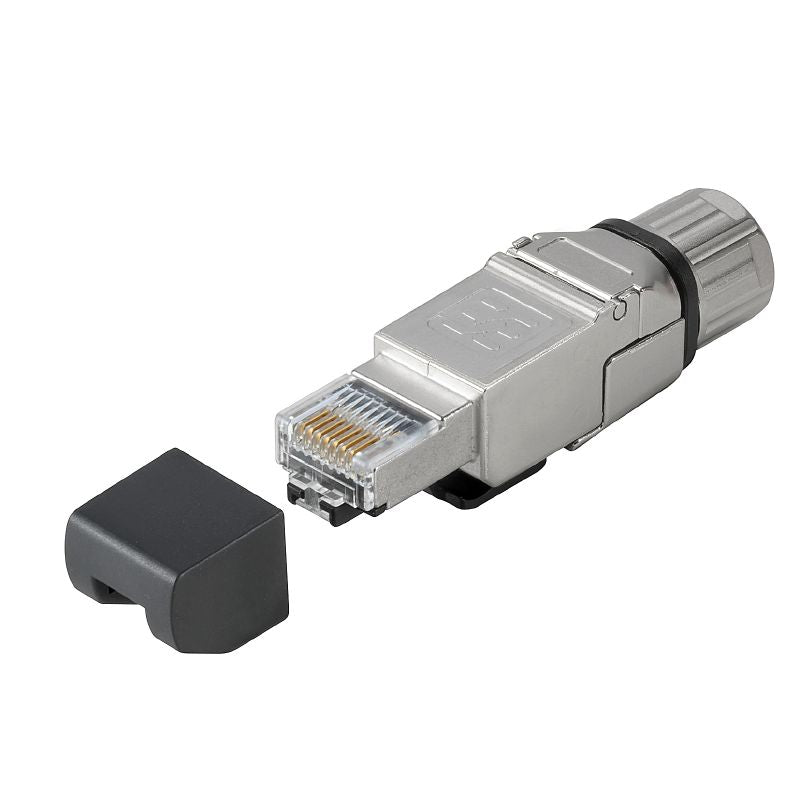

2703390000 - RJ45 Plug with Piercing Contacts for Cat 6A, -40°C to 85°C

2703390000 - RJ45 Plug with Piercing Contacts for Cat 6A, -40°C to 85°C

SKU: 2703390000   Download PDF

Select a Variant:
  • 2703390000 - RJ45 Plug with Piercing Contacts for Cat 6A, -40°C to 85°C
Qty:
Now $20.57   Web pricing policy
BEFORE   $0.00 Now $20.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the versatile RJ45 plug, specifically engineered for use with Category 6A/Class EA cables, compliant with the ISO/IEC 11801 2010 standard and satisfying EIA/TIA T568 A specifications Featuring piercing contacts and a straightforward outlet direction, this plug is equipped with an integrated cable gland for added functionality Weighing in at 2386 grams, it performs effectively within a temperature range of -40 °C to 85 °C.

Constructed from nickel-plated zinc diecast, it offers robust durability, and its insulation accommodates a cross-section between 11 mm and 16 mm With a maximum contact resistance of ≤ 20 mΩ and a current-carrying capacity of 1 A at 50 °C, this connector is compliant with PoE/PoE+ standards per IEEE 8023at, making it an excellent choice for high-performance networking applications.

Features and Benefits:

    •RoHS compliant without exemption.

    •No SVHC above 0.1 wt%.

    •360° all-round enclosure for shielding.

    •750 plugging cycles.

    •Ability to reconnect up to 4 times with the same cross-section.

    •Designed for very finely stranded line connections, with necessary approvals.

Specifications:

 Operating temperature -40 °C...85 °C
 Connection 1 RJ45
 Connection 2 Piercing
 Wiring standard EIA/TIA T568 A
 Housing main material Zinc diecast, nickel-plated
 Insulation cross-section, min. 1.1 mm
 Insulation cross-section, max. 1.6 mm
 Category Cat.6 A / Class E A
 Contact surface Gold over nickel
 Plugging cycles 750
 Current-carrying capacity at 50 °C 1 A
 Dielectric strength, contact/contact ≥ 1000 V AC/DC
 Dielectric strength, contact/shield ≥ 1500 V AC/DC
 Insulation resistance ≥ 500 MΩ
 PoE/PoE+ conforming to IEEE 802.3at
 Protection degree IP20
