2685570000 - IP68 Rated Screw Module, 5 Poles, 50m Water Protection

2685570000 - IP68 Rated Screw Module, 5 Poles, 50m Water Protection

SKU: 2685570000 Download PDF

Variant:
  • 2685570000 - IP68 Rated Screw Module, 5 Poles, 50m Water Protection
Now $15.70
BEFORE   $0.00 Now $15.70
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

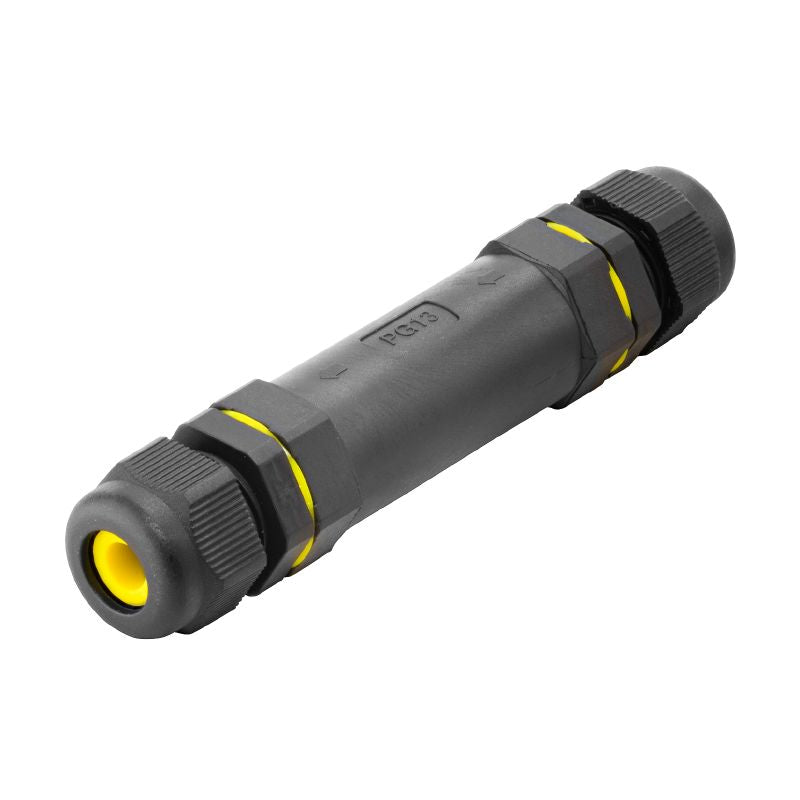

Introducing our reliable connecting module, engineered with a screw-type connection for enhanced stability It boasts an impressive IP68 rating, providing superior water and dust resistance for depths of up to 50 meters over a 24-hour period Complying with RoHS standards, this module is also UL certified (Certificate No E486077) Suitable for both solid and finely stranded wires, it features five poles and supports a variety of wire cross-sections, making it a versatile choice for your connectivity needs.

Features and Benefits:

    •IP68 protection degree for reliable use in harsh environments.

    •Compliant with RoHS regulations.

    •Versatile wire cross-section compatibility ranging from AWG 18 to AWG 14 and 0.75 mm² to 2.5 mm² for flexible connections.

Specifications:

 Operating temperature -40 °C...105 °C
 Number of poles 5
 Connection 1 Screw
 Connection 2 Screw
 Housing main material Nylon, Glass fibre, UL recognized
 Contact material Brass, nickel plated
 Contact surface Nickel-plated CuZn
 Conductor connection cross-section, solid (AWG) AWG 18...AWG 14
 Wire connection cross section, finely stranded, min. 0.75 mm²
 Wire connection cross section, finely stranded, max. 2.5 mm²
 Sheath diameter, min. 6.5 mm
 Sheath diameter, max. 8.5 mm

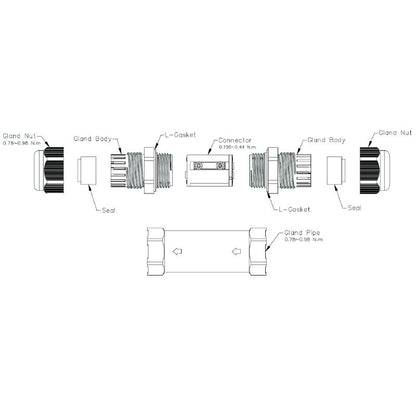

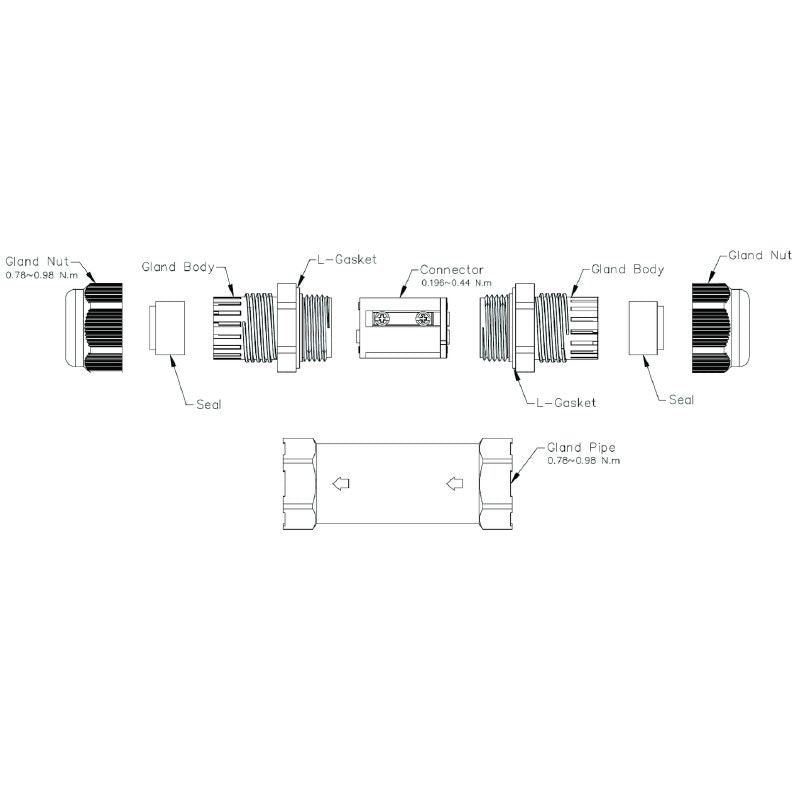

 Tightening torque connecting module, min. 0.196 Nm
 Tightening torque connecting module, max. 0.44 Nm
 Tightening torque gland nut, min. 0.78 Nm
 Tightening torque gland nut, max. 0.98 Nm
 Tightening torque gland pipe, min. 0.78 Nm
 Tightening torque gland pipe, max. 0.98 Nm
 Nominal voltage 600 V
 Rated current 8 A
