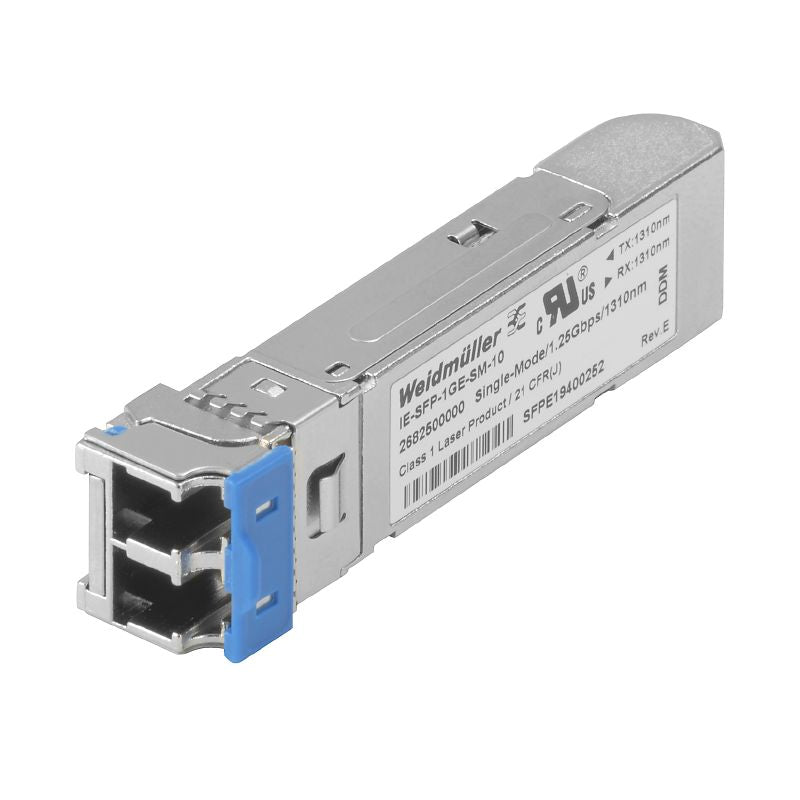

2682500000 - 1000 Mbps Singlemode SFP Transceiver with LC-Duplex, 10 km Range
2682500000 - 1000 Mbps Singlemode SFP Transceiver with LC-Duplex, 10 km Range
SKU: SKU: 2682500000 Download PDF
- 2682500000 - 1000 Mbps Singlemode SFP Transceiver with LC-Duplex, 10 km Range
- 2682500000 - 1000 Mbps Singlemode SFP Transceiver with LC-Duplex, 10 km Range
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the SFP Transceiver, a high-performance device that achieves a transmission rate of 1000 Mbps This transceiver utilizes Singlemode technology and features an LC-Duplex connector, allowing for communication over distances of up to 10 km Built to endure a wide temperature range from -40 °C to 85 °C, it ensures reliability in various environments It complies with RoHS standards, eliminating substances of very high concern as mandated by REACH regulations.
Additionally, it boasts a digital diagnostic monitoring function for enhanced performance oversight.
Features and Benefits:
•Supports transmission distances up to 10 km.
•Compatible with LC-Duplex connectors.
•Works within an operating temperature range of -40 °C to 85 °C.
•Meets EMC standards EN 55032 and EN 55035.
•RoHS compliant without exemptions.
Specifications:
| Transmission rate | 1000 Mbps |
| Transceiver type | Singlemode |
| Operating temperature | -40 °C to 85 °C |
| Storage temperature | -40 °C to 85 °C |
| Supply voltage | 3.3 V (via Ethernet switch) |
| Transmission distance, typ. | 10 km |
| Receive power min. | -20 dBm |
| Receive power max. | -3 dBm |
| Transmission power min. | -9 dBm |
| Transmission power max. | -3 dBm |
| Link-budget | 11 dB |
| Humidity | 5 to 95 % (non-condensing) |
| Digital diagnostic monitor function (DDM) | Supported |
