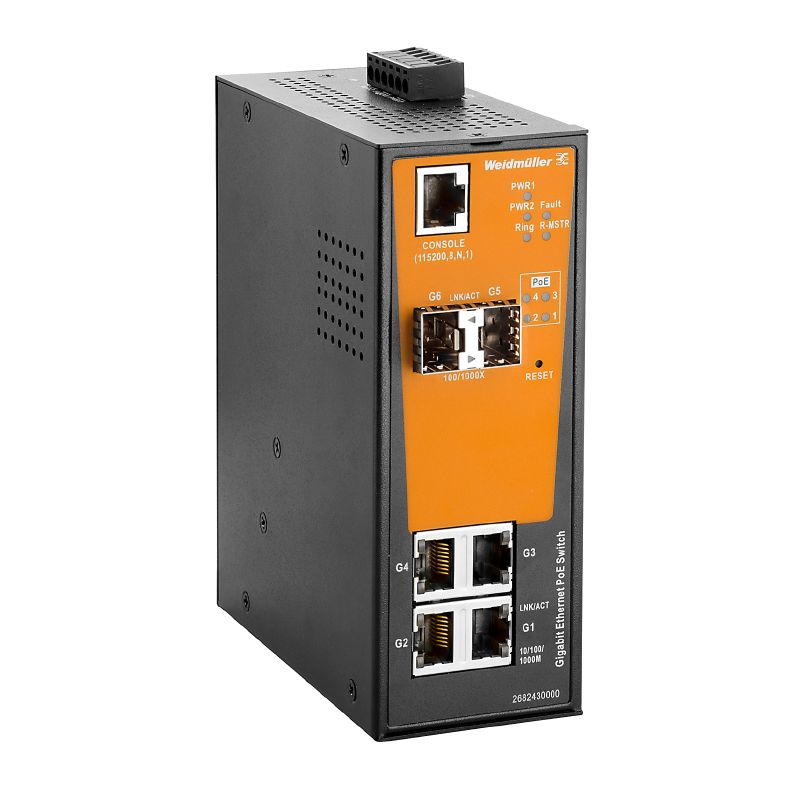

2682430000 - Managed PoE Switch with 4 Ports & 2 SFP Slots
2682430000 - Managed PoE Switch with 4 Ports & 2 SFP Slots
SKU: SKU: 2682430000 Download PDF
- 2682430000 - Managed PoE Switch with 4 Ports & 2 SFP Slots
- 2682430000 - Managed PoE Switch with 4 Ports & 2 SFP Slots
Couldn't load pickup availability

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable connectivity with our managed PoE Network switch, which offers 4 RJ45 ports for 10/100/1000BaseT(X) PoE+ and 2 slots for 100/1000Base SFP Engineered to perform in challenging conditions, it operates effectively within a temperature range of -40 °C to 75 °C and adheres to the IP30 rating This switch is versatile for various applications, with compact dimensions of 120 mm (D) x 145.
1 mm (H) x 543 mm (W) and a lightweight design at just 910 g For optimal storage, it can withstand temperatures from -40 °C to 85 °C and humidity levels from 5% to 95% without condensation Furthermore, it complies with multiple EMC standards such as EN 55032 and EN 55035, ensuring its dependable performance across diverse environments.
Features and Benefits:
•Supports IEEE 802.3af and IEEE 802.3at PoE standards.
•Simplified device configuration via web browser and SNMP.
•Includes a managed PoE switch that promotes energy efficiency.
•Network redundancy features like Spanning Tree Protocol and Rapid Spanning Tree Protocol.
Specifications:
| Depth | 120 mm |
| Height | 145.1 mm |
| Width | 54.3 mm |
| Operating temperature | -40 °C to 75 °C |
| Storage temperature | -40 °C to 85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Power over Ethernet output current | 600 mA (IEEE 802.3at) |
| Power over Ethernet output power | 30 W (IEEE 802.3at) |
| MTBF | 495,624 hours |
| Protection degree | IP30 |
| Housing material | Metal |
| Number of ports | 4 * RJ45 10/100/1000BaseT(X) PoE+, 2x 100/1000BaseSFP Slot |
