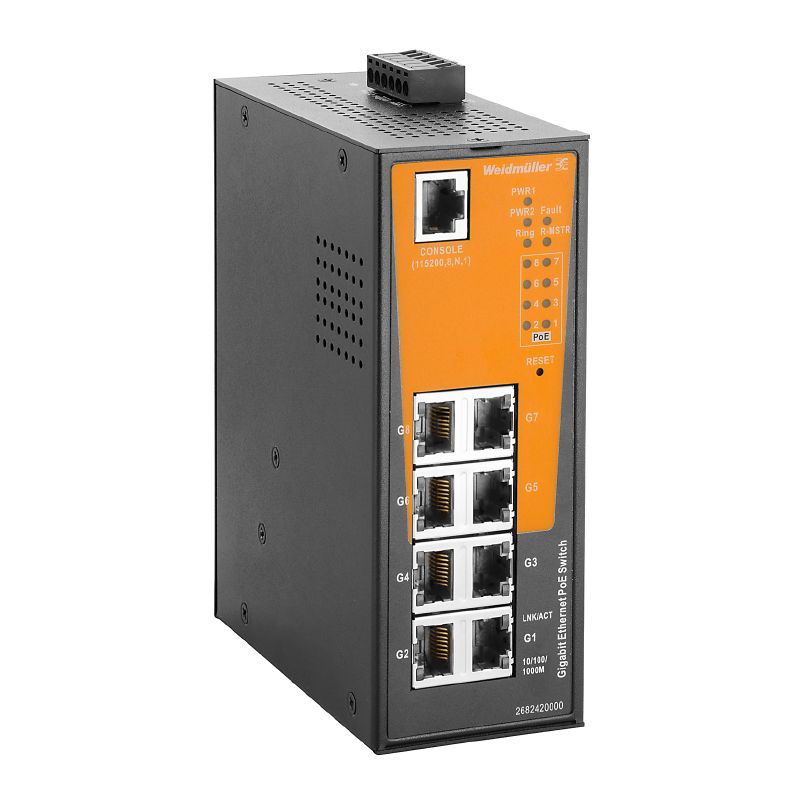

2682420000 - 8-Port Managed PoE Switch, Gigabit Ethernet IP30 Rated

2682420000 - 8-Port Managed PoE Switch, Gigabit Ethernet IP30 Rated

SKU: SKU: 2682420000 Download PDF

Variant:
  • 2682420000 - 8-Port Managed PoE Switch, Gigabit Ethernet IP30 Rated
Regular price Now $1,330.71
Regular price BEFORE   $0.00 Sale price Now $1,330.71
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Elevate your network capabilities with this managed Power over Ethernet (PoE) switch, featuring 8 Gigabit Ethernet ports (RJ45, 10/100/1000 BaseT(X) PoE+) Engineered to perform in extreme conditions, it operates efficiently in temperatures ranging from -40 °C to 75 °C and boasts an IP30 rating for protection Additionally, this device meets RoHS compliance for environmental standards Perfect for enhancing your networking setup!.

Features and Benefits:

    •Compact design suitable for DIN rail mounting.

    •Supports a variety of management features including SNMP and web browser configuration.

    •Provides Power over Ethernet (PoE) capabilities with different standards.

    •High bandwidth with backplane speed of 16 Gbit/s.

    •Includes features for network redundancy such as STP and RSTP.

Specifications:

 Operating temperature -40 °C...75 °C
 Storage temperature -40 °C...85 °C
 Net weight 915 g
 Number of ports 8x RJ45 10/100/1000 BaseT(X) PoE+
 Protection degree IP30
 Dimensions 120 mm (D) x 145.1 mm (H) x 54.3 mm (W)
 ALARM contact 1 relay output with a current capacity of 1 A at 24 V DC
 Compliance standards UL 61010-1, UL 61010-2-201, EN 55032, EN 55035
 Power over Ethernet output current IEEE 802.3af - 350 mA, IEEE 802.3at - 600 mA
 Total PoE power budget 60W (12-23.9V), 120W (24-57V)
 MTBF 495670 hours according to Telcordia SR-332
