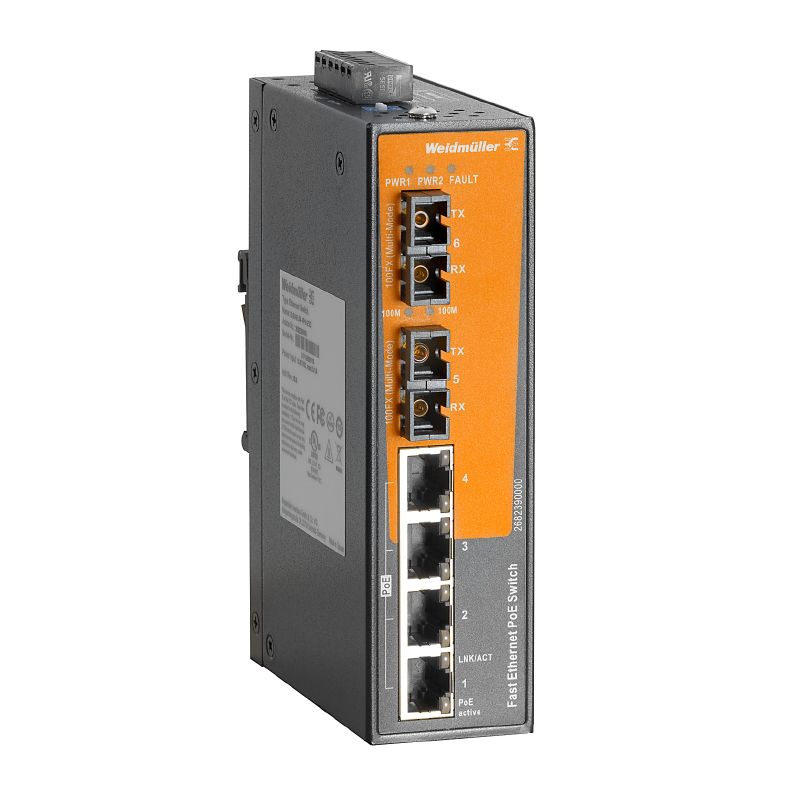

2682390000 - Unmanaged PoE Switch with 4 Ports, IP30 Protection
2682390000 - Unmanaged PoE Switch with 4 Ports, IP30 Protection
SKU: SKU: 2682390000 Download PDF
- 2682390000 - Unmanaged PoE Switch with 4 Ports, IP30 Protection
- 2682390000 - Unmanaged PoE Switch with 4 Ports, IP30 Protection
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile unmanaged PoE switch tailored for Fast Ethernet needs This device features four PoE+ RJ45 ports that are compatible with 10/100 BaseT(X) standards, complemented by two SC multimode ports Built to withstand demanding environments, it comes with an IP30 protection rating and operates efficiently in temperatures ranging from -40 °C to 75 °C Additionally, this switch meets various environmental standards, including RoHS, and has successfully passed EMC conformity tests, ensuring reliability and compliance.
Features and Benefits:
•IP30 rated for protection.
•Supports PoE+ with 350 mA to 600 mA output current.
•Compliant with multiple EMC standards including FCC and IEC standards.
•DIN rail mountable.
•Ideal for connecting Ethernet devices in a network.
Specifications:
| Depth | 94.9 mm |
| Height | 144.3 mm |
| Width | 41 mm |
| Net weight | 680 g |
| Operating temperature | -40 °C to 75 °C |
| Storage temperature | -40 °C to 85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Fibre optic transceiver characteristics | {'Transmission rate': '100 Mbps', 'Transceiver type': 'Multimode', 'Connector type': 'SC-Duplex', 'Transmission distance, typ.': '2 km', 'Wavelength': '1,310 nm', 'Receive power': 'min. -31 dBm, max. 0 dBm', 'Transmission power': 'min. -23.5 dBm, max. -14 dBm'} |
| Total PoE power budget | {'Voltage type': 'DC', 'Voltage, min.': '24 V', 'Voltage, max.': '49.9 V', 'Power budget': '60 W'} |
| Power supply | {'Connection type': '1 removable 6-pin terminal block', 'Voltage': '24 V, 57 V', 'Current': '2.8 A, 2.2 A'} |
| Switch characteristics | {'Bandwidth backplane': '1.2 Gbit/s', 'MAC table size': '1 K', 'Packet buffer size': '448 kBit'} |
| Housing main material | Metal |
| Protection degree | IP30 |
| Type of mounting | DIN rail |
| Technology | Data switching |
| Flow control | IEEE 802.3x flow control |
