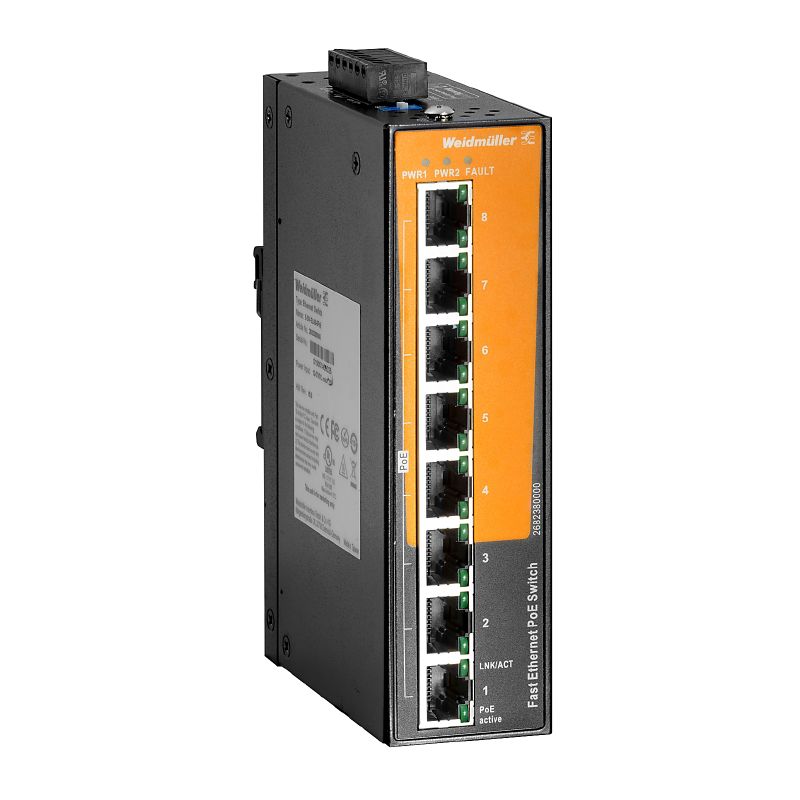

2682380000 - 8-Port PoE Switch, -40 to 75°C, IP30 Protection
2682380000 - 8-Port PoE Switch, -40 to 75°C, IP30 Protection
SKU: SKU: 2682380000 Download PDF
- 2682380000 - 8-Port PoE Switch, -40 to 75°C, IP30 Protection
- 2682380000 - 8-Port PoE Switch, -40 to 75°C, IP30 Protection
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your network capabilities with this unmanaged Power over Ethernet (PoE) switch, which provides Fast Ethernet functionality across eight RJ45 10/100 BaseT(X) PoE+ ports It operates seamlessly within a temperature range of -40 °C to 75 °C, making it suitable for diverse environments With its IP30 rating, this switch is built for professional networking setups needing reliable power and data transmission.
Features and Benefits:
•RoHS compliant with exemptions.
•Supports up to 120W PoE power budget.
•Offers overload and reverse polarity protection.
•Two redundant inputs for power supply.
•Designed for DIN rail mounting.
•Flow control compliant with IEEE 802.3x.
•Fast Ethernet speed for efficient network performance.
Specifications:
| Depth | 94.9 mm |
| Height | 144.3 mm |
| Width | 41 mm |
| Net weight | 600 g |
| Operating temperature | -40 °C to 75 °C |
| Storage temperature | -40 °C to 85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Number of ports | 8x RJ45 10/100 BaseT(X) PoE+ |
| Power supply | 12/24/48 V DC |
| MTBF | 744,974 h |
| Protection degree | IP30 |
| Data switching technology | Store and Forward |
