2682320000 - Managed Network Switch with 24 RJ45 Ports - Rugged Design
2682320000 - Managed Network Switch with 24 RJ45 Ports - Rugged Design
SKU: SKU: 2682320000 Download PDF
- 2682320000 - Managed Network Switch with 24 RJ45 Ports - Rugged Design
- 2682320000 - Managed Network Switch with 24 RJ45 Ports - Rugged Design
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

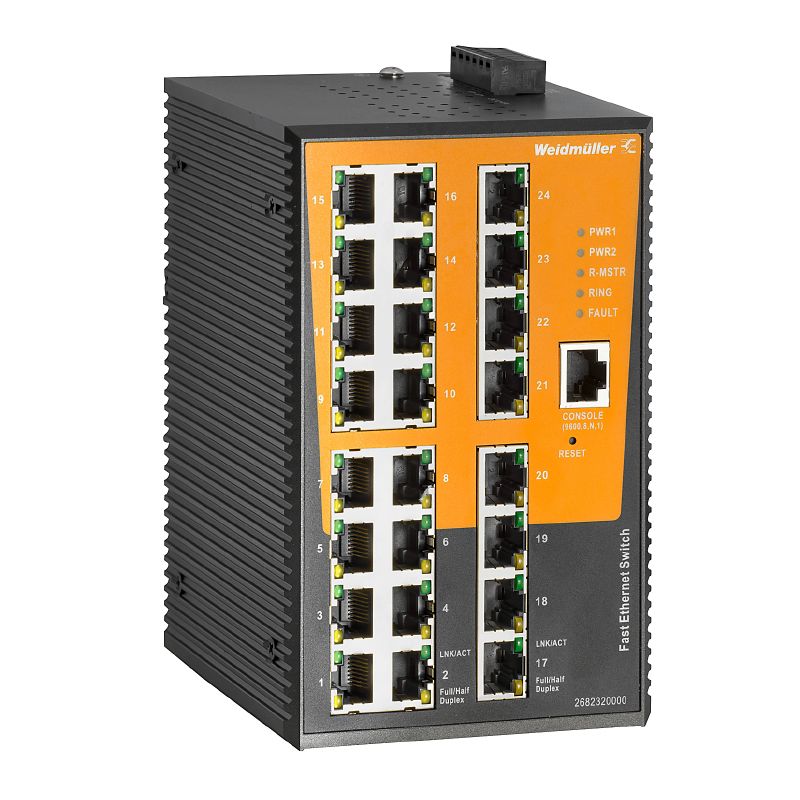

Introducing the IE-SW-AL24M-24TX managed network switch, equipped with 24 RJ45 ports and designed for Fast Ethernet connectivity This robust device operates effectively in extreme conditions, with a temperature range from -40 °C to 75 °C It boasts advanced management capabilities, enabling device configuration via a web browser and support for SNMP protocols The switch also incorporates multiple network redundancy features, including the Spanning Tree Protocol and Link Aggregation Control Protocol.
For enhanced security, it offers VLAN segmentation and user authentication following IEEE 8021X standards, all while adhering to various EMC regulations.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Supports quality of service and differentiated services.
•Features redundancy protocols for network reliability.
•Equipped with alarm contact and console port interface.
•Housing material is metal with IP30 protection degree.
Specifications:
| Operating temperature | -40 °C to 75 °C |
| Storage temperature | -40 °C to 85 °C |
| Dimensions | Width: 96.4 mm, Height: 154 mm, Depth: 108.5 mm |
| Net weight | 1,369 g |
| Power supply | 12/24/48 V DC with redundant inputs |
| Mac table size | 8 K |
| Number of ports | 24x RJ45 |
| Current consumption | 1.2 A at 12 V, 0.6 A at 24 V, 0.3 A at 48 V |
| Protection degree | IP30 |
| Packet buffer size | 1 Mbit |
| Bandwidth backplane | 4.8 Gbit/s |
| VLAN-ID max | 4095 |
| Network redundancy support | Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), O-Ring |
