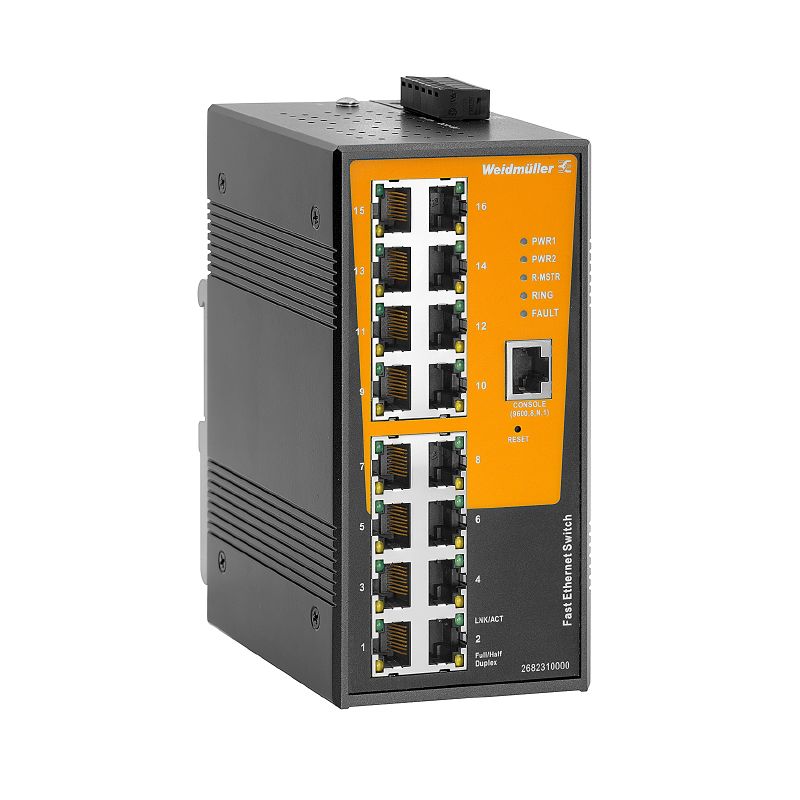

2682310000 - 16-Port Managed Network Switch for Fast Ethernet, Industrial Use
2682310000 - 16-Port Managed Network Switch for Fast Ethernet, Industrial Use
SKU: SKU: 2682310000 Download PDF
- 2682310000 - 16-Port Managed Network Switch for Fast Ethernet, Industrial Use
- 2682310000 - 16-Port Managed Network Switch for Fast Ethernet, Industrial Use
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable network performance with this managed network switch, optimized for Fast Ethernet applications It comes equipped with 16 RJ45 ports to effortlessly connect multiple devices Built to withstand extreme environments, this switch functions effectively in temperatures ranging from -40 °C to 75 °C and meets various environmental compliance standards Its robust design makes it an excellent choice for diverse industrial settings, ensuring stable operation in challenging conditions.
Features and Benefits:
•Compliant with ROHS regulations.
•Capable of operating at temperatures from -40 °C to 75 °C.
•Humidity tolerance from 5% to 95% (non-condensing).
•Supports various management features including SNMP, command line interface, and web configuration.
•IP30 protection degree for increased durability.
•DIN rail mounting suitable for easy installation.
Specifications:
| Dimensions | {'Depth': '107.5 mm', 'Height': '153.6 mm', 'Width': '74.3 mm'} |
| Operating Temperature | -40 °C to 75 °C |
| Storage Temperature | -40 °C to 85 °C |
| Weight | 1,188 g |
| Power Supply | {'Connection Type': '1 removable 6-pin terminal block', 'Supply Voltage': '12/24/48 V DC', 'Overload Protection': 'Yes', 'Reverse Polarity Protection': 'Yes'} |
| Switch Characteristics | {'Bandwidth Backplane': '3.2 Gbit/s', 'MAC Table Size': '8K', 'Packet Buffer Size': '1 Mbit', 'VLAN ID Range': '1 to 4094', 'Priority Queues': '4'} |
| Safety Standards | ['SELV according to EN 62368-1', 'UL 61010-1', 'UL 61010-2-201'] |
| Environment | {'Protection Degree': 'IP30', 'Free Fall Compliance': 'according to IEC 60068-2-31'} |
