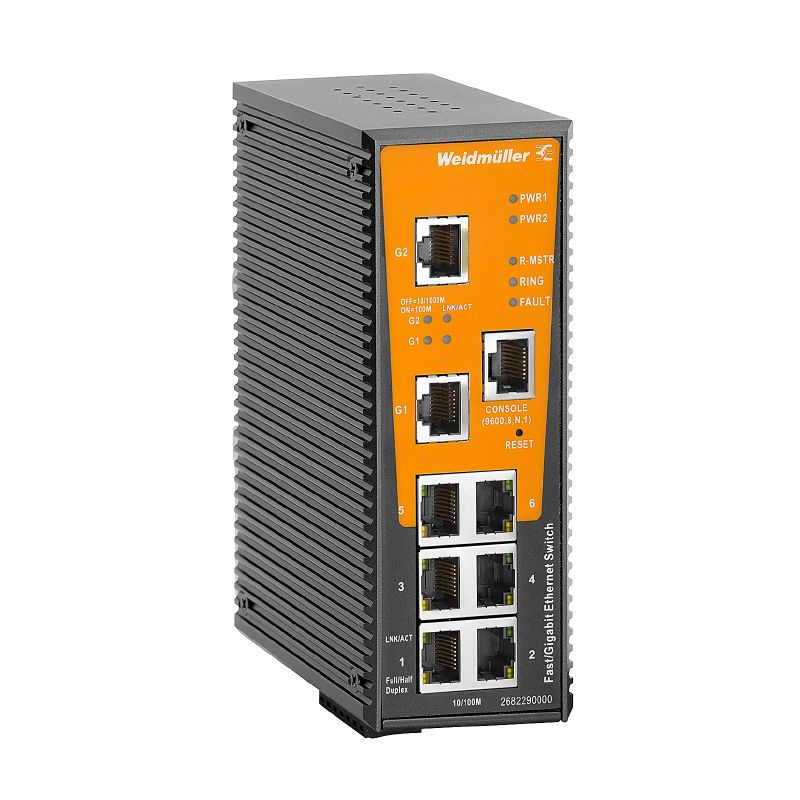

2682290000 - 6-Port Managed Network Switch, IP30 Metal, -40°C to 75°C
2682290000 - 6-Port Managed Network Switch, IP30 Metal, -40°C to 75°C
SKU: SKU: 2682290000 Download PDF
- 2682290000 - 6-Port Managed Network Switch, IP30 Metal, -40°C to 75°C
- 2682290000 - 6-Port Managed Network Switch, IP30 Metal, -40°C to 75°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable networking with this managed switch, featuring a robust configuration of 6 RJ45 10/100BaseT(X) ports and 2 RJ45 10/100/1000BaseT(X) ports for enhanced connectivity Built to perform in extreme temperature ranges from -40 °C to 75 °C, it adheres to IP30 standards for effective dust resistance The durable metal housing is designed for easy mounting on a DIN rail Weighing approximately 817 grams, it combines efficiency and resilience for your networking needs.
Features and Benefits:
•Supports IP30 environmental rating.
•Management features including web browser configuration, SNMP, and command line interface.
•Advanced network redundancy protocols such as STP and RSTP.
•Flexible power supply with 12/24/48 V DC options.
Specifications:
| Depth | 107.1 mm |
| Height | 144.3 mm |
| Width | 52 mm |
| Net weight | 817 g |
| Operating temperature | -40 °C...75 °C |
| Storage temperature | -40 °C...85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Power supply current consumption | 12V: 0.83 A, 24V: 0.41 A, 48V: 0.19 A |
| Current capacity relay output | 1 A at 24 V DC |
| Bandwidth | 5.6 Gbit/s |
| MAC table size | 8 K |
| Max number of VLANs | 4095 |
| Device configuration | Webbrowser (HTTP/HTTPS), SNMP v1/v2c/v3 |
