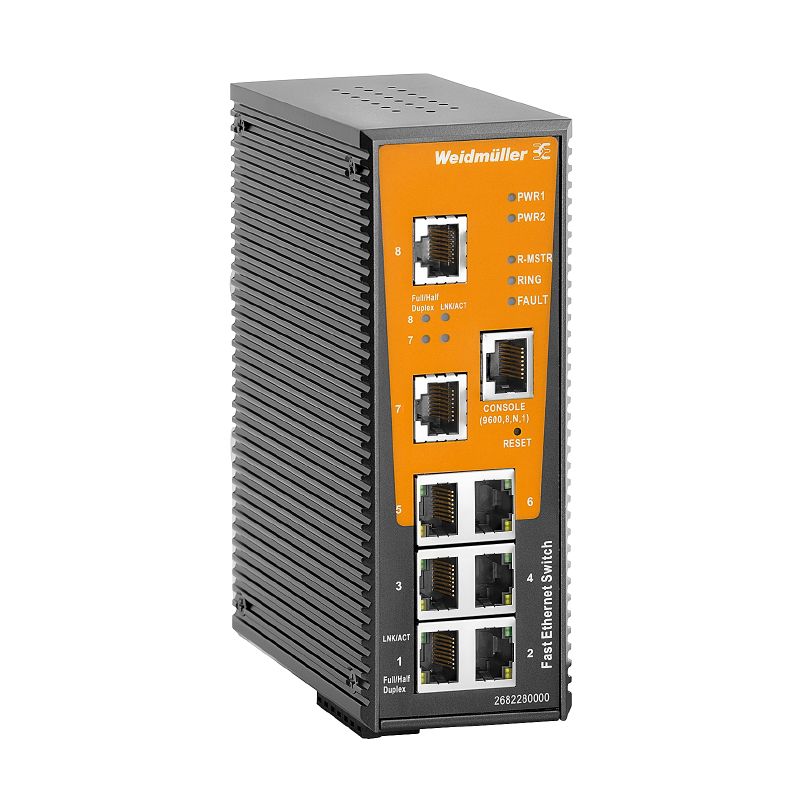

2682280000 - Managed 8-Port Fast Ethernet Switch, Temp Range -40°C to 75°C

2682280000 - Managed 8-Port Fast Ethernet Switch, Temp Range -40°C to 75°C

SKU: SKU: 2682280000 Download PDF

Variant:
  • 2682280000 - Managed 8-Port Fast Ethernet Switch, Temp Range -40°C to 75°C
Regular price Now $507.08
Regular price BEFORE   $0.00 Sale price Now $507.08
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a high-performance managed network switch designed for seamless connectivity This device boasts Fast Ethernet capabilities and comes with 8 RJ45 ports, allowing for effective network management in various settings It operates efficiently in extreme temperatures, with a range from -40 °C to 75 °C, and can be stored in environments ranging from -40 °C to 85 °C Compliance with RoHS standards and UL certification number E141197 ensures its reliability and safety.

Additionally, the switch supports a variety of protocols for device management and network redundancy, making it an excellent choice for industrial applications.

Features and Benefits:

    •Compliant with RoHS and UL standards.

    •Multiple management features including SNMP and web-based configuration.

    •Support for VLAN segmentation and network redundancy protocols.

    •Compact DIN rail mounting design.

    •Suitable for use in industrial networking environments.

    •Can be deployed in applications requiring robust network management and traffic control.

Specifications:

 Depth 107.1 mm
 Height 144.3 mm
 Width 52 mm
 Net weight 812 g
 Operating temperature -40 °C to 75 °C
 Storage temperature -40 °C to 85 °C
 Humidity 5 to 95 %
 Supply voltage 12/24/48 V DC
 Current consumption 0.47 A at 12 V, 0.24 A at 24 V, 0.12 A at 48 V
 IP Protection Degree IP30
 Housing main material Metal
 Bandwidth backplane 1.6 Gbit/s
 MAC table size 8 K
 Max. number of available VLANs 4095
 Packet buffer size 1 Mbit
 Priority queues 4
