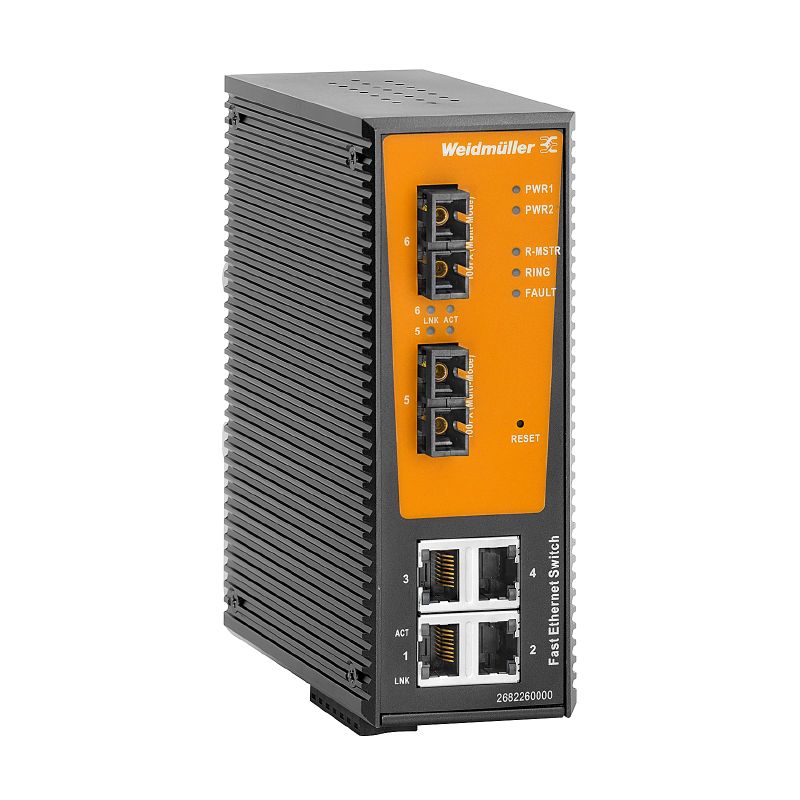

2682260000 - Lite Managed Switch with 4 RJ45 & 2 SC Ports
2682260000 - Lite Managed Switch with 4 RJ45 & 2 SC Ports
SKU: SKU: 2682260000 Download PDF
- 2682260000 - Lite Managed Switch with 4 RJ45 & 2 SC Ports
- 2682260000 - Lite Managed Switch with 4 RJ45 & 2 SC Ports
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a lightweight managed network switch tailored for Fast Ethernet connectivity This reliable device features 4 RJ45 ports along with 2 SC multimode ports, making it versatile for various applications Designed to perform efficiently in temperature ranges from -40 °C to 75 °C, it also adheres to IP30 standards With multiple compliance approvals, this switch is an excellent choice for diverse environments.
Features and Benefits:
•Compliant with RoHS and UL standards.
•Energy-efficient design with low power consumption.
•Multiple management features including web browser configuration and SNMP support.
•Redundant power supply inputs to enhance reliability.
•Supports VLAN segmentation and various industrial protocols such as Modbus/TCP.
Specifications:
| Depth | 107.1 mm |
| Height | 145.4 mm |
| Width | 54.2 mm |
| Net weight | 799 g |
| Operating temperature | -40 °C...75 °C |
| Storage temperature | -40 °C...85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Transceiver type | Multimode |
| Number of ports | 4 x RJ45, 2 * SC Multi-mode |
| Power supply | 12/24/48 V DC |
| Protection degree | IP30 |
| Standard | IEEE 802.3 for 10BaseT |
