Description:

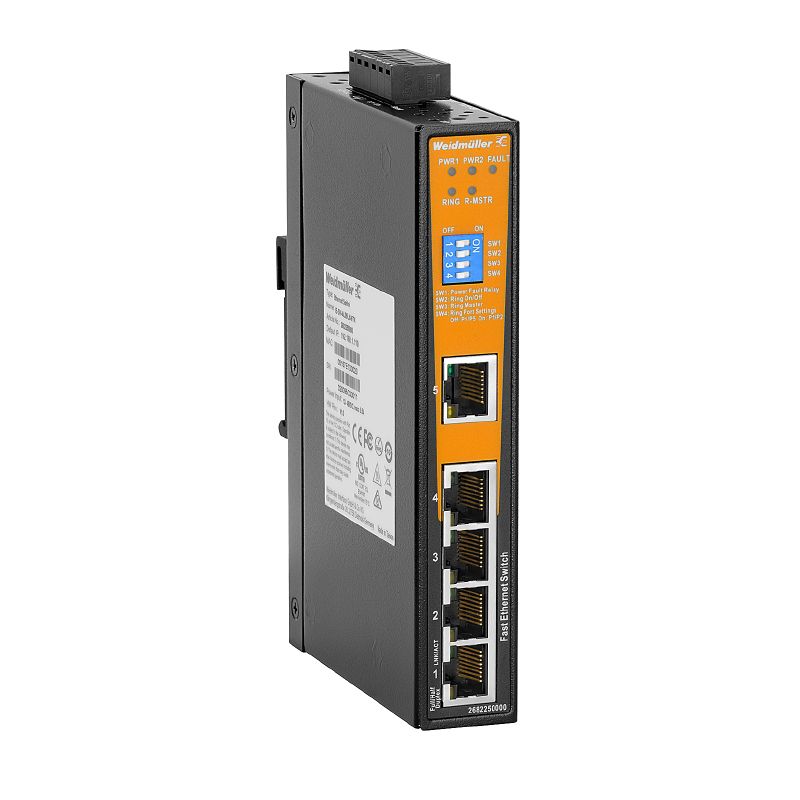

Introducing the IE-SW-AL05LM-5TX, a lightweight managed network switch tailored for Fast Ethernet applications Equipped with five RJ45 ports, this switch operates efficiently in extreme temperatures ranging from -40 °C to 75 °C It adheres to essential certifications, including RoHS and UL, ensuring high standards of safety and environmental compliance With support for web interface management, SNMP, and various redundancy protocols, this switch offers a robust suite of features designed to enhance your network operations.
Features and Benefits:
•Lite managed switch with 5x RJ45 ports.
•Supports Fast Ethernet with auto-negotiation.
•Temperature range from -40 °C to 75 °C.
•IP30 protection rating.
•DIN rail mountable.
•Redundant power supply inputs.
Specifications:
| Depth | 95 mm |
| Height | 144.3 mm |
| Width | 26.1 mm |
| Net weight | 396 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...75 °C |
| Operating altitude, max | 2,000 m |
| Bandwidth backplane | 1 Gbit/s |
| MAC table size | 2 K |
| Packet buffer size | 1 Mbit |
| Current consumption | {'12 V': '0.29 A', '24 V': '0.14 A', '48 V': '0.08 A'} |
| Power supply | 12/24/48 V DC, 2 redundant inputs |
| Protection degree | IP30 |
