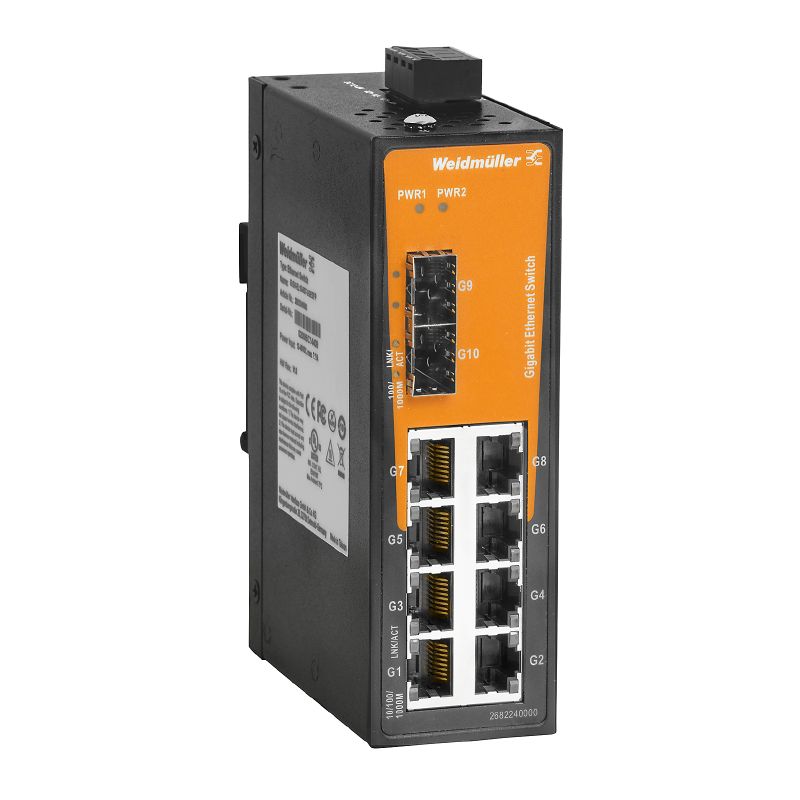

2682240000 - Unmanaged Gigabit Ethernet Switch with 8 Ports & 2 SFP Slots
2682240000 - Unmanaged Gigabit Ethernet Switch with 8 Ports & 2 SFP Slots
SKU: SKU: 2682240000 Download PDF
- 2682240000 - Unmanaged Gigabit Ethernet Switch with 8 Ports & 2 SFP Slots
- 2682240000 - Unmanaged Gigabit Ethernet Switch with 8 Ports & 2 SFP Slots
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile unmanaged network switch that boasts impressive Gigabit Ethernet performance This device is equipped with 8 RJ45 ports along with 2 slots designed specifically for 100/1000Base SFP connections Engineered to operate efficiently within a broad temperature range of -40 °C to 75 °C, it is rated IP30 for added durability With compliance to RoHS standards and specific certifications including cULus, this network switch is a reliable choice for robust network setups.
Features and Benefits:
•Supports 8x 10/100/1000BaseT(X) RJ45 ports with auto-negotiation.
•Equipped with 2x 100/1000Base SFP slots.
•Operating altitude maximum of 6,000 m.
•Metal housing providing durability.
•IP30 protection degree.
Specifications:
| Dimensions (Depth): | 90 mm (3.543 inches) |
| Dimensions (Height): | 127 mm (5 inches) |
| Dimensions (Width): | 41 mm (1.614 inches) |
| Storing temperature range | -40 °C to 85 °C |
| Operating temperature range | -40 °C to 75 °C |
| Humidity | 5 to 95 % (non-condensing) |
| MTBF | 1,056,516 hours according to Telcordia SR-332 |
| Power supply connection type | 1 removable 4-pin terminal block |
| Current consumption at 12V | 0.41 A |
| Current consumption at 24V | 0.2 A |
| Current consumption at 48V | 0.11 A |
| Voltage supply range | 12/24/48 V DC with 2 redundant inputs |
| Bandwidth backplane | 20 Gbit/s |
| MAC table size | 4 K |
| Packet buffer size | 1.5 Mbit |
| Protection degree | IP30 |
| Technology | Data switching with Store and Forward |
| Jumbo frame support | up to 9 KB |
| Flow control | IEEE 802.3x flow control |
