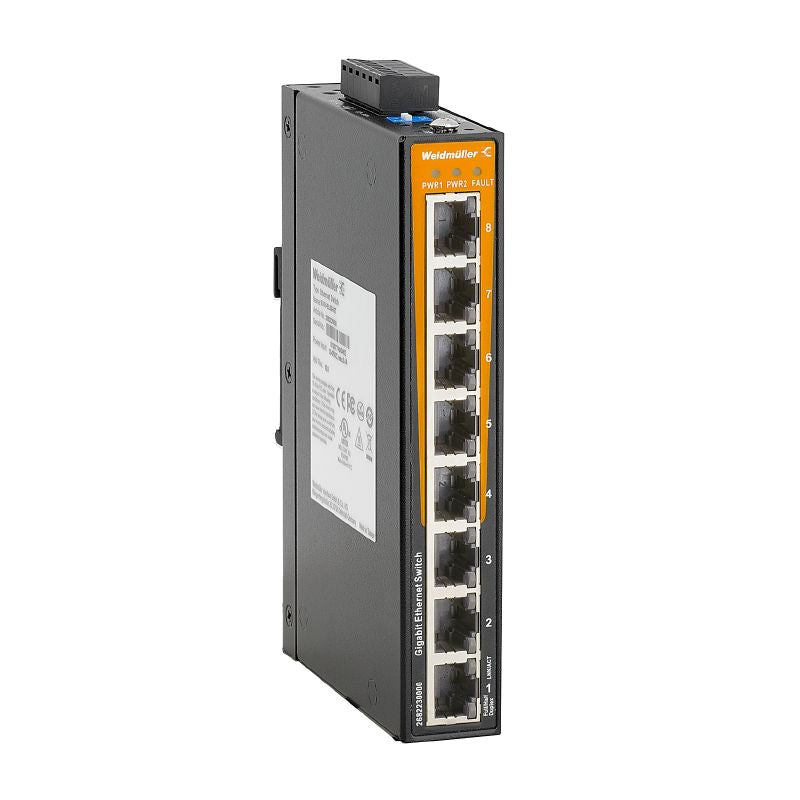

2682230000 - 8-Port Gigabit Ethernet Unmanaged Switch, IP30 Rated
2682230000 - 8-Port Gigabit Ethernet Unmanaged Switch, IP30 Rated
SKU: SKU: 2682230000 Download PDF
- 2682230000 - 8-Port Gigabit Ethernet Unmanaged Switch, IP30 Rated
- 2682230000 - 8-Port Gigabit Ethernet Unmanaged Switch, IP30 Rated
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your networking capabilities with this efficient unmanaged network switch, featuring Gigabit Ethernet and 8 RJ45 ports It functions optimally within a temperature range of -40 °C to 75 °C, while meeting the IP30 standard for durability Built to handle diverse operating conditions, this switch is certified for safety and EMC standards, making it suitable for a variety of applications.
Features and Benefits:
•Compliant with RoHS and other environmental standards.
•Non-condensing humidity tolerance of 5 to 95%.
•Up to 9216 Bytes jumbo frame support.
•DIN rail mountable.
•Storage temperature range of -40 °C to 85 °C.
•Includes overload current and reverse polarity protection.
•Ideal for installations requiring unmanaged Gigabit Ethernet connections.
Specifications:
| Operating temperature | -40 °C to 75 °C |
| Number of ports | 8x RJ45 |
| Net weight | 425 g |
| Dimensions (W x H x D) | 26.1 mm x 144.3 mm x 94.9 mm |
| Protection degree | IP30 |
| Power supply | 12/24/48 V DC |
| Power consumption | 24 V, 0.2 A |
| Operating altitude max. | 2000 m |
| Switch characteristics | Bandwidth backplane: 16 Gbit/s |
| MTBF | 926,332 hours |
