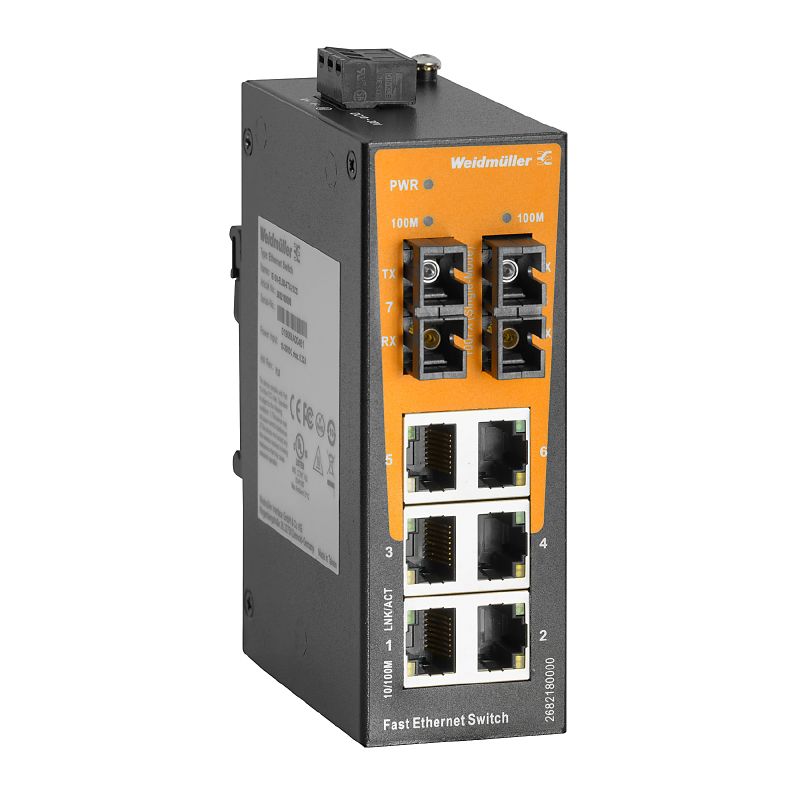

2682180000 - 6-Port Unmanaged Ethernet Switch for Harsh Environments
2682180000 - 6-Port Unmanaged Ethernet Switch for Harsh Environments
SKU: SKU: 2682180000 Download PDF
- 2682180000 - 6-Port Unmanaged Ethernet Switch for Harsh Environments
- 2682180000 - 6-Port Unmanaged Ethernet Switch for Harsh Environments
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Optimize your networking capabilities with this unmanaged switch, tailored for Fast Ethernet systems Featuring six RJ45 ports alongside two SC single-mode fiber ports, it supports a wide array of networking tasks Its temperature tolerance ranges from -40 °C to 75 °C, ensuring dependable performance even in extreme conditions Built to IP30 standards, the switch is housed in a sturdy metal casing, making it perfect for DIN rail installation and suitable for various environments.
Features and Benefits:
•Complies with RoHS and UL safety standards.
•Offers a bandwidth backplane of 1.6 Gbit/s.
•Supports auto negotiation and full-/half-duplex modes for RJ45 ports.
•Designed for low latency and high throughput.
•Includes overload and reverse polarity protection.
Specifications:
| Number of ports | 6x RJ45, 2x SC Single-mode |
| Depth | 84 mm |
| Height | 115 mm |
| Width | 41 mm |
| Net weight | 350 g |
| Operating temperature | -40 °C to 75 °C |
| Storage temperature | -40 °C to 85 °C |
| Power supply voltage | 12/24 V DC |
| Current consumption | 0.14 A |
| MAC table size | 1 K |
| Packet buffer size | 448 kBit |
| Protection degree | IP30 |
| EMC standards | EN 55032, EN 55024 |
