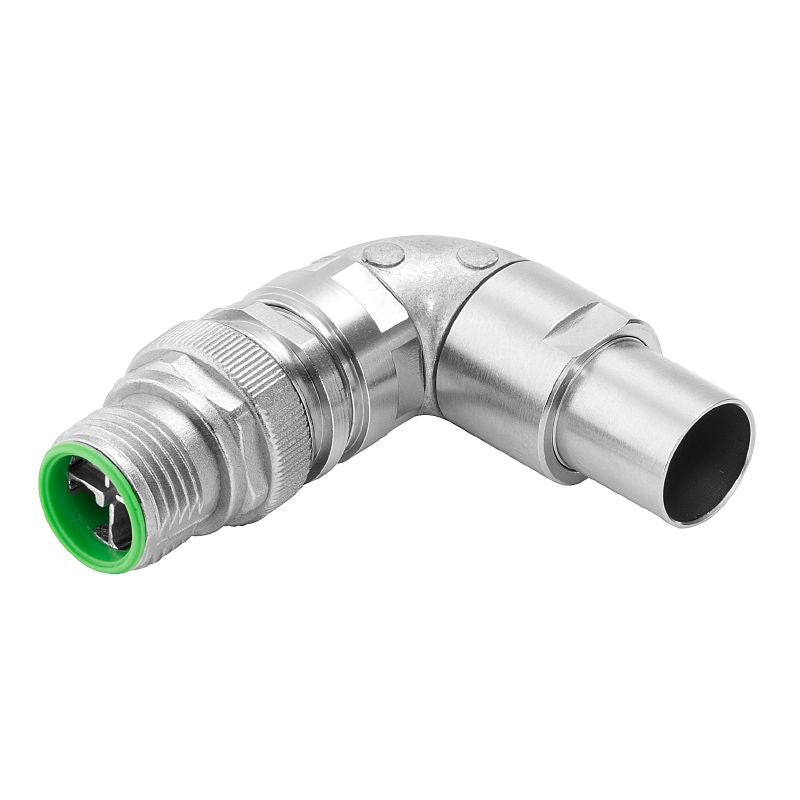

2662110000 - X-Coded Gold-Plated Connector, 9mm Max Diameter, Customizable Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the IE-PS-M12X-90-P-TH-SC-ST connector, a RoHS-compliant solution that offers a customizable plug-in design Weighing just 31 grams, it accommodates cables with diameters ranging from 4 mm to a maximum of 9 mm Featuring X-coded encoding and a gold-plated contact surface, this connector is built for reliability with a nominal current of 2 A and a voltage rating of 30 V It comprises 8 poles and is engineered to withstand a minimum of 500 plugging cycles.

The robust housing is crafted from nickel-plated copper alloy, and it includes a securely crimped shield connection This connector adheres to the IEC 61076-2-109 standards, ensuring quality and compatibility for your applications.

Features and Benefits:

•Customizable plug-in connectors.

•Gold-plated contact surface.

•Constructed from Cu alloy Ni plated material.

•Suitable for up to 500 plugging cycles.

•Designed for connection with a maximum cable diameter of 9 mm and a minimum of 4 mm.

Specifications:
