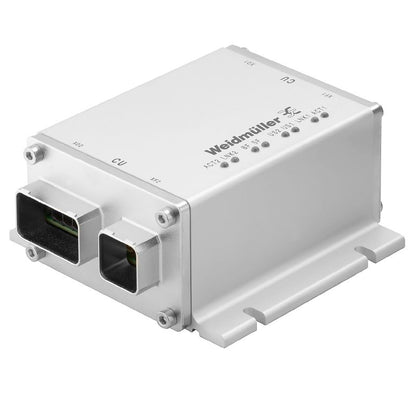

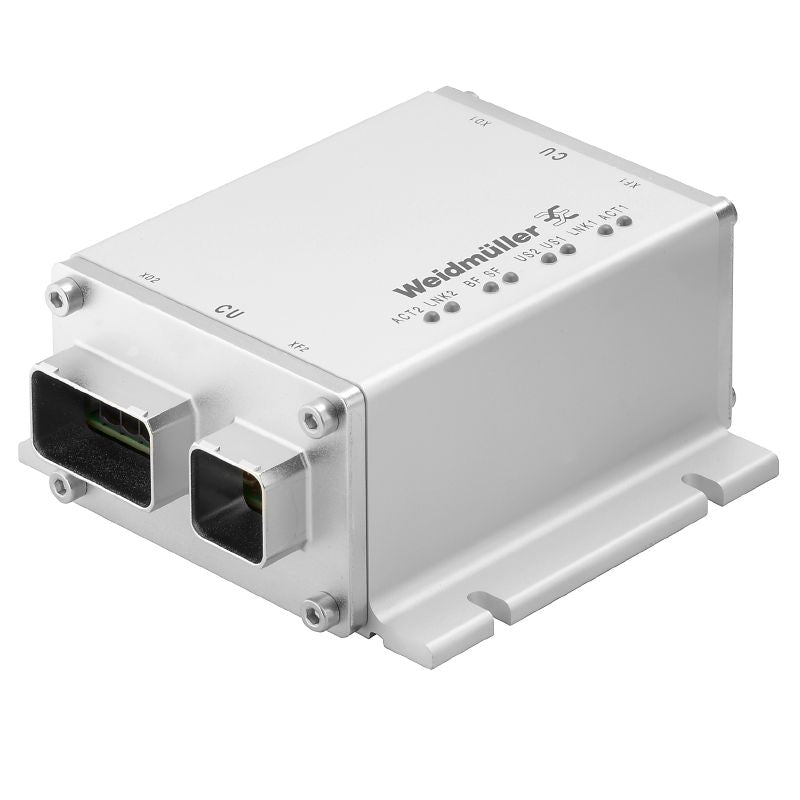

2581810000 - IP65 PROFINET Copper Repeater with 100 MBit/s Speed

Description:

Introducing the IE-CDR-V14MRJ/VAPM-C PROFINET copper repeater, an exceptional solution designed to excel in challenging environments This device adheres to RoHS standards, including all applicable exemptions Its sturdy construction features a lightweight aluminum housing paired with a durable die-cast zinc cover that is electroplated for added resilience With an impressive IP65 rating, this repeater offers superior protection against dust and moisture, making it ideal for industrial settings.

It operates at a baud rate of 100 MBit/s and functions effectively with a voltage input range of 18 to 30 V DC, ensuring seamless connectivity for your industrial applications .

Features and Benefits:

•Housing made from aluminium profile and die-cast zinc cover, electroplated.

•Mounting using 4 screws.

•IP65 protection degree for durability in harsh environments.

•LED indicators for monitoring status of connections and errors.

•Compliant with RoHS and other environmental standards.

•Industrial networking via PROFINET.

Specifications:
