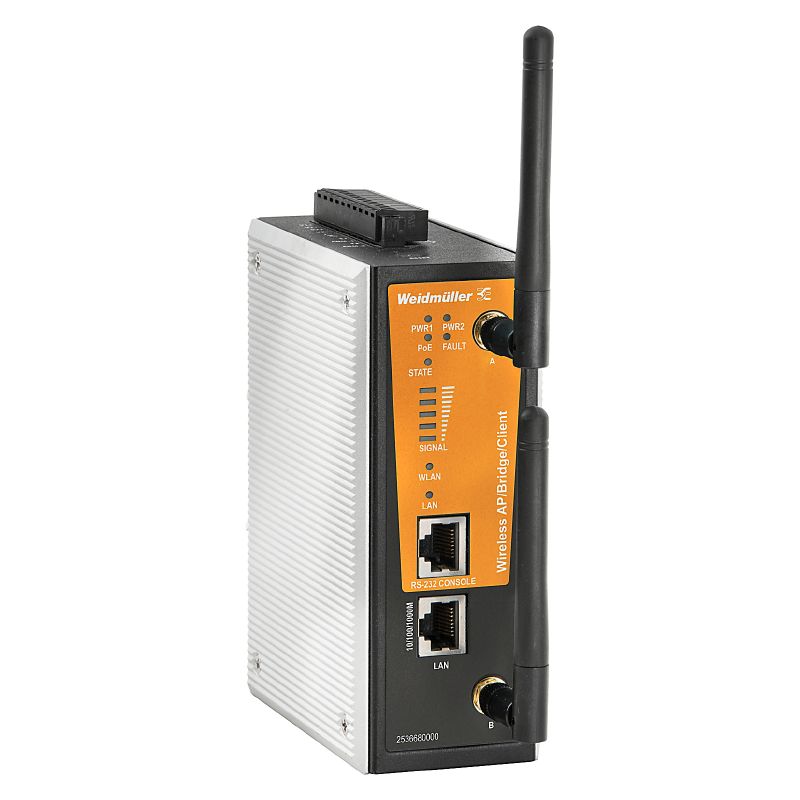

2536680000 - EU Wireless Access Point/Bridge/Client, IP30, -25 to 60°C
2536680000 - EU Wireless Access Point/Bridge/Client, IP30, -25 to 60°C
SKU: SKU: 2536680000 Download PDF
- 2536680000 - EU Wireless Access Point/Bridge/Client, IP30, -25 to 60°C
- 2536680000 - EU Wireless Access Point/Bridge/Client, IP30, -25 to 60°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your connectivity with this versatile wireless device, which functions as an access point, bridge, or client It adheres to IEEE 80211 a/b/g/n standards, making it compatible across various networks Built specifically for the EU market, it operates efficiently in temperatures ranging from -25 °C to 60 °C and boasts an IP30 rating for effective protection against dust and mechanical impacts Perfect for robust networking needs in a variety of environments.
Features and Benefits:
•Supports Wi-Fi standards IEEE 802.11 a/b/g/n.
•Operating temperature range of -25 °C to 60 °C.
•Compliant with RoHS and REACH SVHC regulations.
•Equipped with 1 relay output with a current capacity of 1 A at 24 V DC.
•Includes 2x RP-SMA female connectors for external antennas.
•DIN rail mounting type.
Specifications:
| Order No. | 2536680000 |
| Depth | 105 mm |
| Height | 135 mm |
| Width | 52.7 mm |
| Net weight | 880 g |
| Material | metal |
| Protection degree | IP30 |
| Operating temperature (min) | -25 °C |
| Operating temperature (max) | 60 °C |
| Storage temperature (min) | -40 °C |
| Storage temperature (max) | 85 °C |
| Current consumption | 0.6 A at 12 V DC; 0.15 A at 48 V DC |
| Power consumption | 7.2 W |
| Supply voltage | 24 V DC; 48 V DC Power-over-Ethernet (IEEE 802.3af) |
| Transmission rate | 802.11b: 1, 2, 5.5, 11 MBit/s; 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 MBit/s; 802.11n: 6.5 to 300 MBit/s |
| EMC standards | EN 61000-6-2; EN 61000-6-4; CISPR 22; FCC Part 15B Class B |
| Wireless standards | EN 301 489-1/17; EN 300 328; EN 301893 |
| MTBF | 570,854 hours |
| Operating channels | EU: 2.412 to 2.472 GHz (13 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels); 5.500 to 5.700 GHz (11 channels) |
