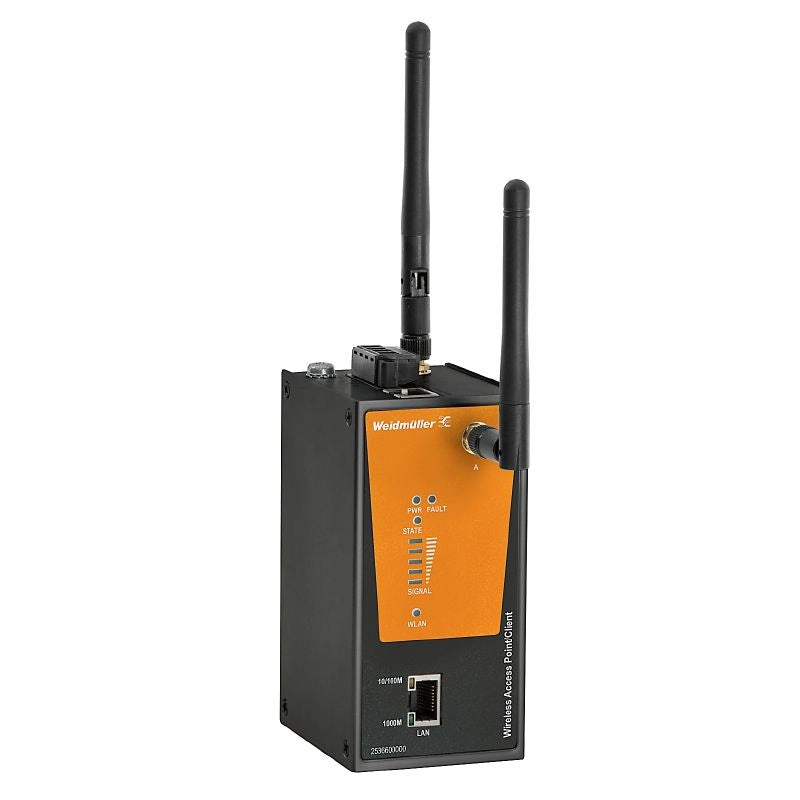

2536600000 - EU Wireless Access Point, 300 Mbps, IEEE 802.11 a/b/g/n
2536600000 - EU Wireless Access Point, 300 Mbps, IEEE 802.11 a/b/g/n
SKU: SKU: 2536600000 Download PDF
- 2536600000 - EU Wireless Access Point, 300 Mbps, IEEE 802.11 a/b/g/n
- 2536600000 - EU Wireless Access Point, 300 Mbps, IEEE 802.11 a/b/g/n
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience seamless connectivity with this Wireless Access Point/Client, built to support the IEEE 80211 a/b/g/n standards Ideal for EU usage, it boasts an IP30 rating for protection Operating effectively in temperatures ranging from 0 °C to 60 °C, this device is equipped with a range of certifications, including RoHS and UL, ensuring safety and compliance
Designed for versatility, it features connectors for external antennas, multiple RJ45 ports, and adheres to rigorous EMC compliance standards.
With a maximum power consumption of 696 W and integrated reverse polarity protection, it guarantees reliable performance Supporting WLAN data transmission speeds of up to 300 Mbps, this access point is also compliant with environmental regulations, making it a smart choice for your networking needs.
Features and Benefits:
•Meets ROHS compliance status with exemptions.
•Includes operating channels for EU standards.
•Equipped with multiple connectivity options including 10/100/1000M TP ports.
•Includes two RP-SMA female connectors for external antennas.
•Supports extensive wireless protocols and security mechanisms.
Specifications:
| Depth | 70 mm |
| Height | 115 mm |
| Width | 58 mm |
| Net weight | 330 g |
| Operating temperature range | 0 °C to 60 °C |
| Storage temperature range | -40 °C to 85 °C |
| Power supply | 24 V DC with 2 redundant inputs |
| Current consumption | 0.56 A at 12 V DC; 0.14 A at 48 V DC |
| Protection degree | IP30 |
| Housing main material | metal |
| Mounting type | DIN rail |
| EMC standards | EN 55032, EN 55024, CISPR 32 |
| Wireless LAN standards | IEEE 802.11 a/b/g/n |
| Max transmission rate | 300 Mbps |
| ETIM classification | EC000816 |
| ECLASS code | 19-17-05-01 |
