2464200100 - 10m Radox EM 104 M12 X-type Cat.6 A System Cable

2464200100 - 10m Radox EM 104 M12 X-type Cat.6 A System Cable

SKU: SKU: 2464200100 Download PDF

Variant:
  • 2464200100 - 10m Radox EM 104 M12 X-type Cat.6 A System Cable
Regular price Now $274.81
Regular price BEFORE   $0.00 Sale price Now $274.81
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

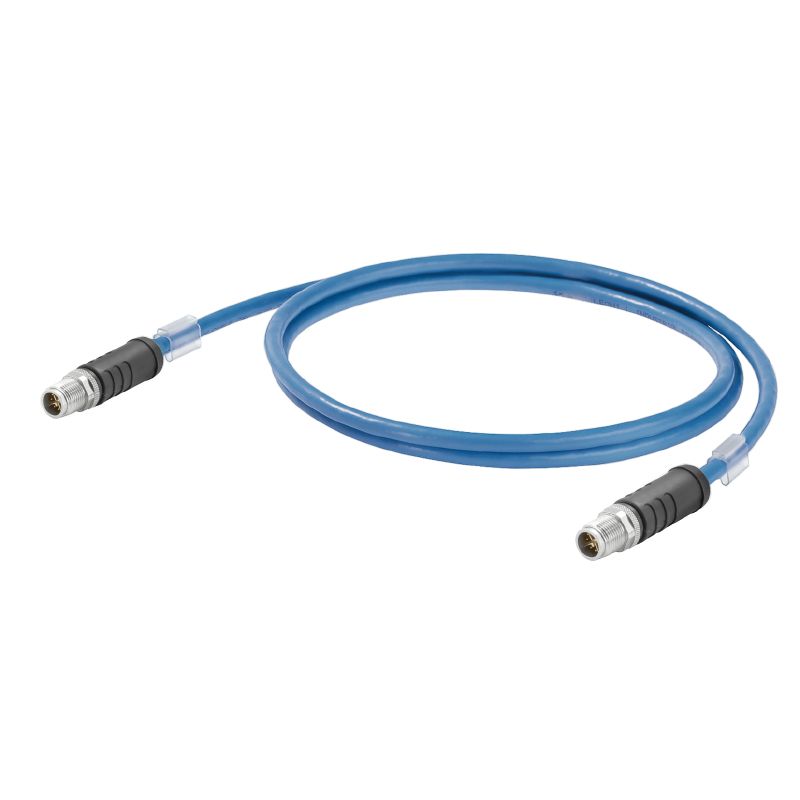

Introducing a robust system cable featuring dual M12 X-type IP 67 straight male connectors, specifically engineered for Cat6 A / Class E A applications in accordance with ISO/IEC 11801 2010 standards With a generous length of 10 meters, this cable is crafted from high-quality Radox EM 104 material, providing exceptional durability and reliable performance across various environmental settings It also meets RoHS compliance, making it an eco-friendly choice for your connectivity needs.

Features and Benefits:

    •Compliant with RoHS.

    •Operating temperature range from -50 °C to 70 °C.

    •Halogen-free insulation according to IEC 60754-2.

    •Very good abrasion resistance.

    •Impervious to smoke.

    •Available in blue sheath color.

    •Resistance to oils.

Specifications:

 Length 10 m
 Cross-section 4*2*AWG24/7 - 4*2*0.2 mm²
 Insulation cross-section 1.35 mm
 Sheath diameter, max. 8.6 mm
 Sheath diameter, min. 7.6 mm
 Shielding S/FTP
 Strands 7
 Category Cat.6 A / Class E A (ISO/IEC 11801 2010)
 Transmission rate 10 Gbit/s
 Min. bending radius, repetitive 4 x cable diameter
 Plug left M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded
 Plug right M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded
