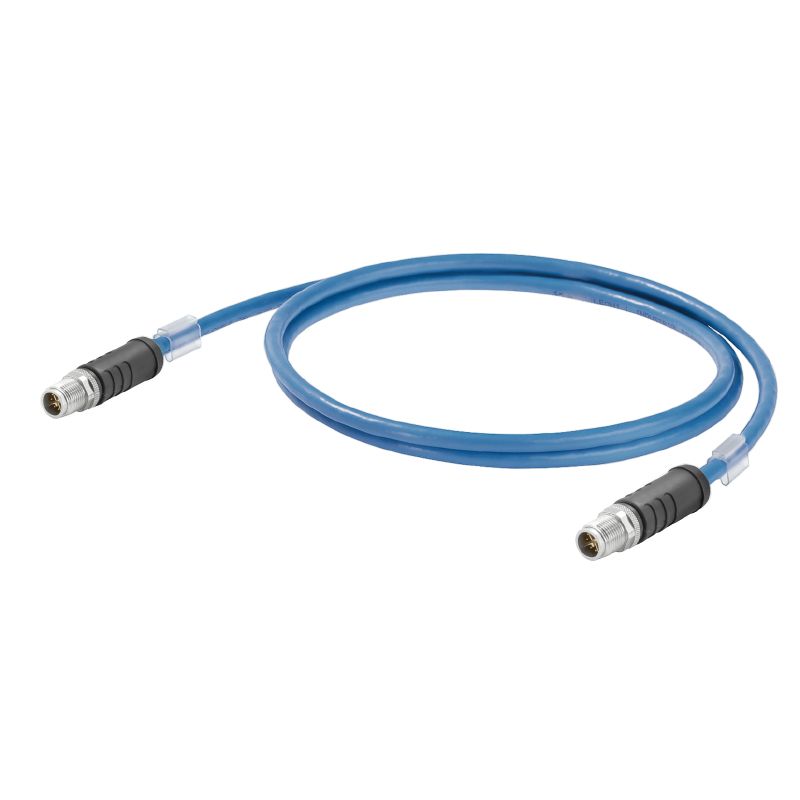

2464200006 - IP67 M12 X-Type Cable, 0.6m, Cat.6 A Certified

2464200006 - IP67 M12 X-Type Cable, 0.6m, Cat.6 A Certified

SKU: 2464200006 Download PDF

Variant:
  • 2464200006 - IP67 M12 X-Type Cable, 0.6m, Cat.6 A Certified
Now $100.46
BEFORE   $0.00 Now $100.46
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a high-performance system cable equipped with M12 X-type connectors on each end, engineered for environments rated IP 67 This cable meets the stringent Cat6 A / Class E A specifications in accordance with ISO/IEC 11801 2010 Measuring 06 meters in length, it also boasts ROHS compliance, making it a reliable choice for various applications.

Features and Benefits:

    •Complies with multiple safety and environmental standards such as EN 45545 for fire safety in railway vehicles.

    •Very good abrasion resistance and halogen-free material.

    •Shielded with S/FTP technology for enhanced performance.

Specifications:

 Length 0.6 m
 Operating temperature -50 °C...70 °C
 Cable structure 4*2*AWG24/7 - 4*2*0.2 mm²
 Insulation cross-section 1.35 mm
 Sheath diameter, max 8.6 mm
 Sheath diameter, min 7.6 mm
 Category Cat.6 A / Class E A (ISO/IEC 11801 2010)
 Resistance to oils Yes
 Min. bending radius, repetitive 4 x cable diameter
 Connector standard IEC 61076-2-109
