2421910000 - M12 5-Pole Connector, 6.75mm Height, IP67 Rated (Pack of 10)

Description:

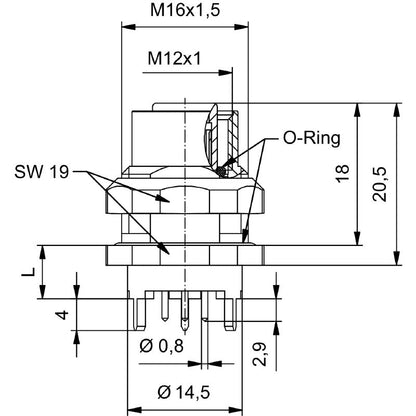

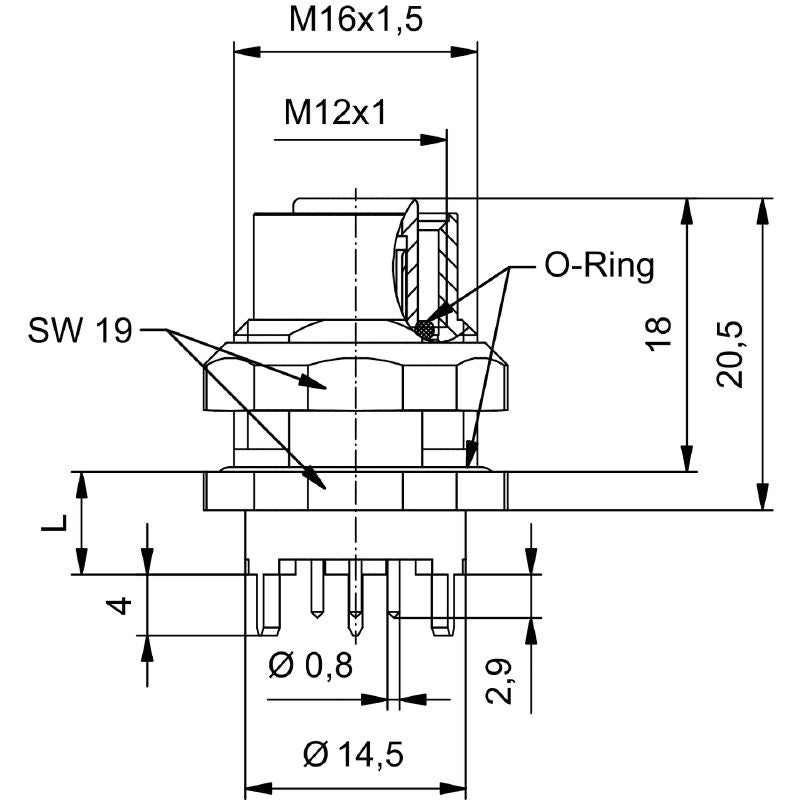

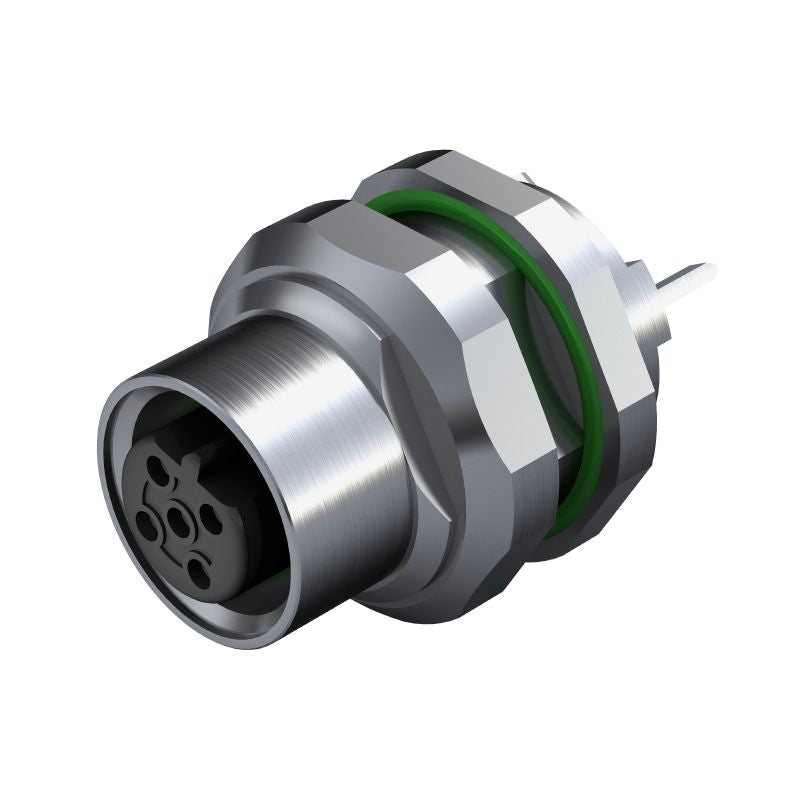

Discover the reliability of this built-in M12 connector, featuring a robust design with a mounting thread of M16 and 5 poles Crafted from nickel-plated CuZn, this connector not only meets RoHS compliance but also promises long-lasting durability Its compact installation height of 675 mm makes it easy to integrate, while it operates at a nominal voltage of 60 V This unit is versatile, supporting rated voltages of 250 V for 4-pole connections, 60 V for 5-pole configurations, and 30 V for 8-pole setups, with a maximum nominal current of 4 A.

With an IP67 protection rating, it is built for rear panel mounting, ensuring excellent resistance to dust and water Plus, it can withstand a temperature range of -30 to 80 °C, making it ideal for various environments.

Features and Benefits:

•Compliant with RoHS with exemptions.

•Nickel-plated housing surface for enhanced durability.

•Gold contact surface for reliable connections.

•Can withstand plugging cycles of at least 100 times.

•Insulation resistance of 100 MΩ.
