2421870000 - 4-Pole RoHS Compliant Connector with Built-In Plugs (Pack of 25)

SKU: SKU: 2421870000 Download PDF

Select a Variant:

2421870000 - 4-Pole RoHS Compliant Connector with Built-In Plugs (Pack of 25)

SET THE QTY:

Now $79.61 Web pricing policy

~~BEFORE $0.00~~ Now $79.61 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

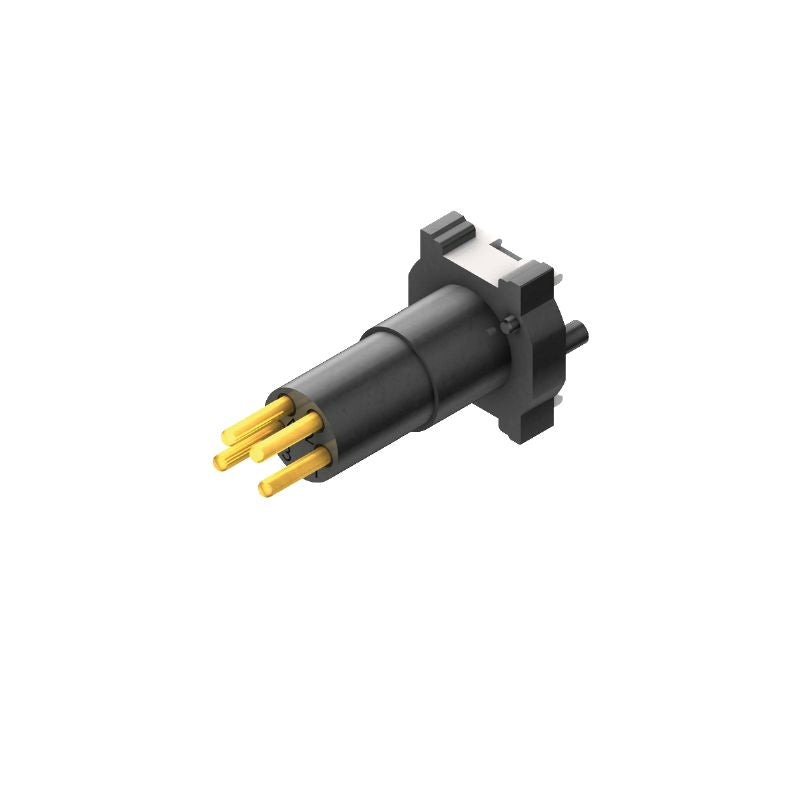

Introducing the SAID-M8S-4-SMT connector, engineered for optimal performance with integrated plugs and a secure mounting thread This connector features four poles and is conveniently packaged in sets of 25 With its RoHS compliance, rest assured that it meets all necessary regulations for safety and sustainability Weighing in at around 296 grams, this component is both lightweight and efficient for your electronic needs.

Features and Benefits:

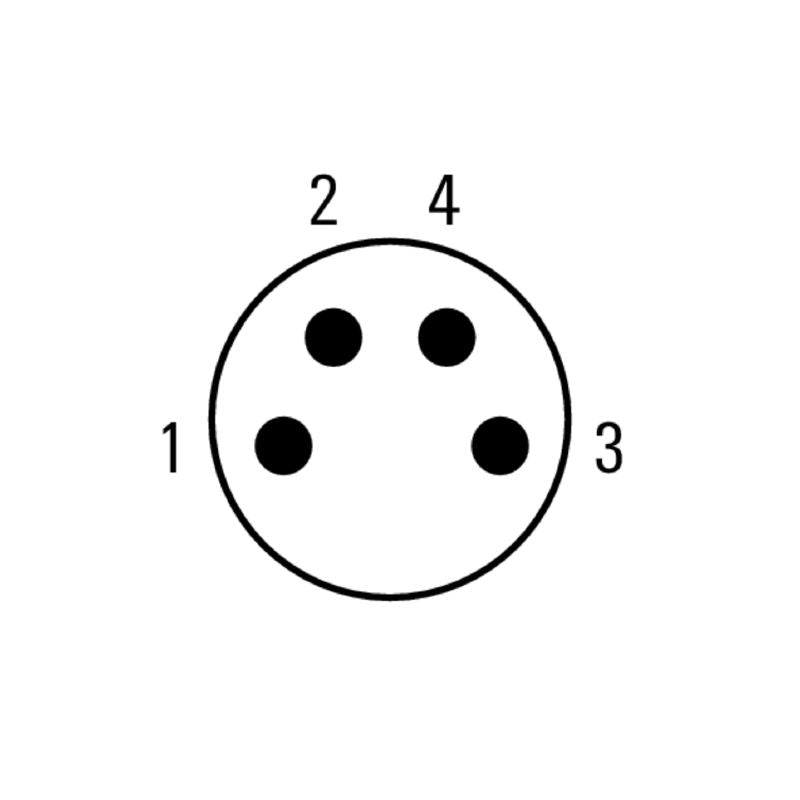

•4-pole configuration.

•Built-in plugs.

•RoHS compliant.

•Protection degree IP67.

•Suitable for a temperature range of -25 to 95 °C.

Specifications:

Coding	M8 = none
Housings	M8 pin
Shield connection	No
Nominal voltage	30 V
Rated voltage	60 V (3-pole) / 30 V (4-, 5- and 8-pole)
Nominal current	4 A
Rated current	4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range	-25…95 °C
Protection degree	IP67
Contact surface	Au (Gold)
Housing main material	LCP
Connection thread	M8
Tightening torque	M8: 0.5 Nm
Pollution severity	3 (2 within the sealed area)
Plugging cycles	≥ 100
Contact material	Cu-alloy
Lock nut material	Nickel-plated CuZn
Material of the flange-mounted housing	Nickel-plated CuZn
UL 94 flammability rating	V-0
