Description:

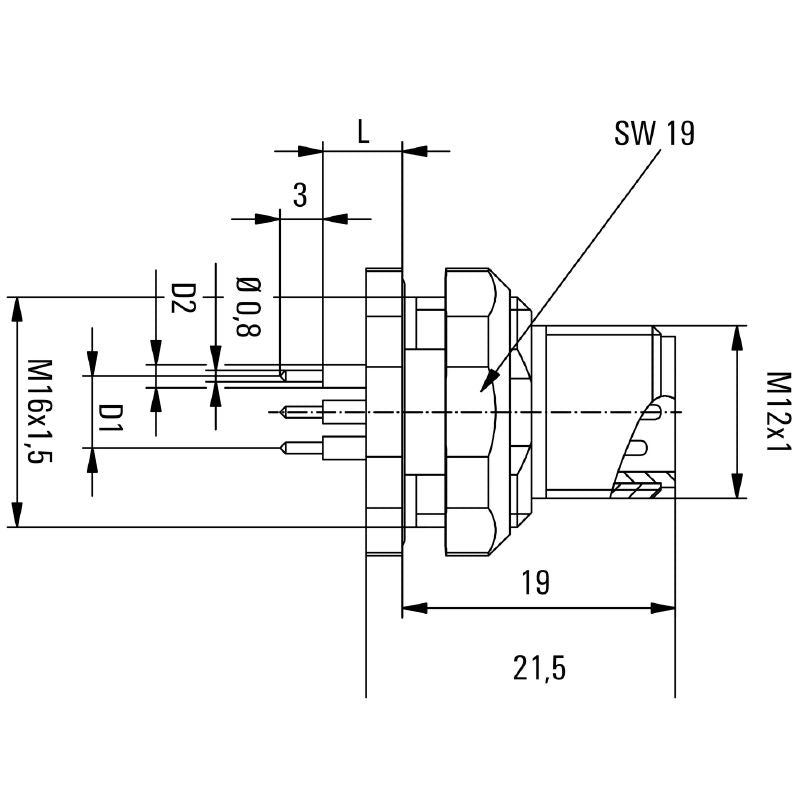

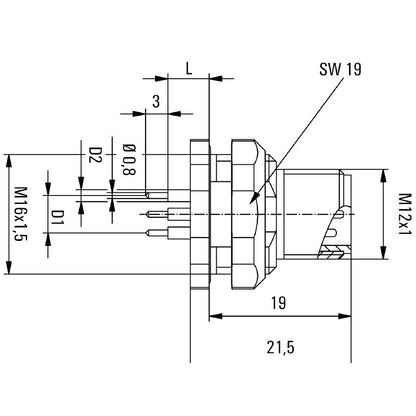

Experience reliable connectivity with this advanced component featuring integrated M12 standard plugs and an M 16 x 15 mounting thread Constructed with a five-pole configuration, it delivers exceptional electrical performance, with a voltage capacity reaching up to 250 V on four poles and 60 V on five poles, along with supporting a nominal current of 4 A Designed to withstand diverse environmental conditions, the robust IP67 protection rating ensures dependable operation.

The compact installation height of just 12 mm adds to its versatility, while the gold contact surface enhances longevity for steadfast connections.

Features and Benefits:

•Protection degree IP67.

•Rear panel mounting type.

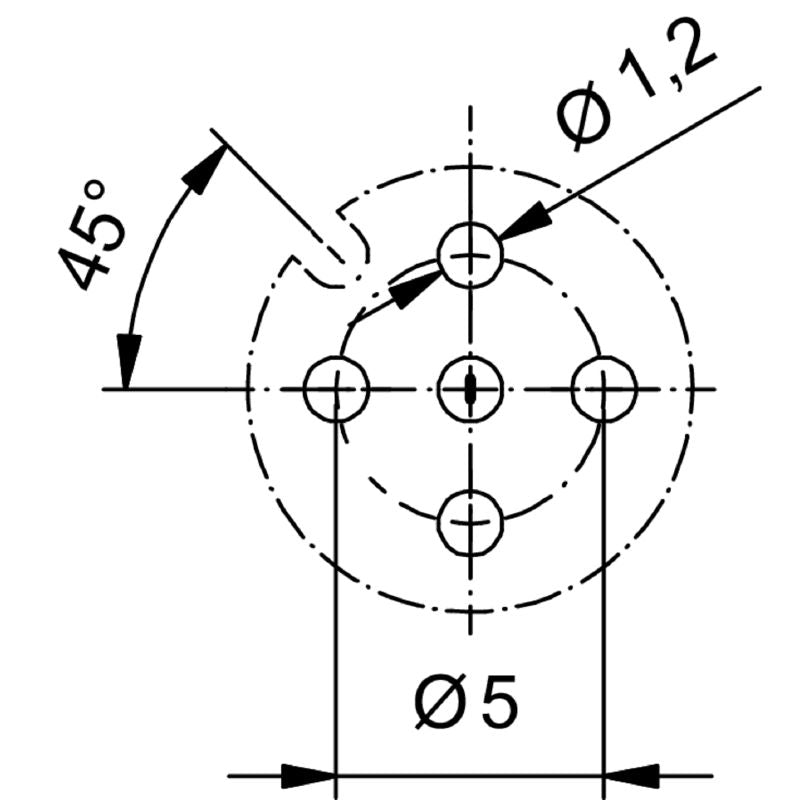

•A-coded housing configuration.

•Gold contact surface for enhanced conductivity.

•Temperature range from -30 to 80 °C.

•100 MΩ insulation resistance.

Specifications:

Number of poles	5
Nominal voltage	60 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Housing main material	CuZn, nickel-plated
Connection thread	M12
Contact material	Cu-alloy
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Tightening torque	M12: 0.8 Nm
Mounting torque max.	1.2 Nm
Pollution severity	3 (2 within the sealed area)
