2421850000 - IP67 M12 Connector with 8 Poles, 10mm Height (Pack of 10)

SKU: SKU: 2421850000 Download PDF

Select a Variant:

2421850000 - IP67 M12 Connector with 8 Poles, 10mm Height (Pack of 10)

SET THE QTY:

Now $116.91 Web pricing policy

~~BEFORE $0.00~~ Now $116.91 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

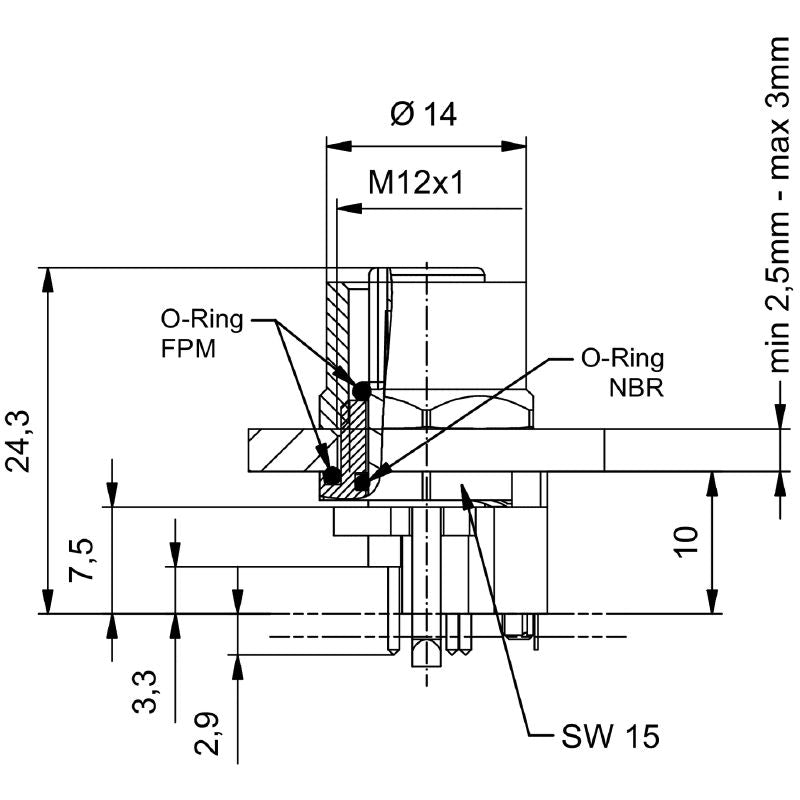

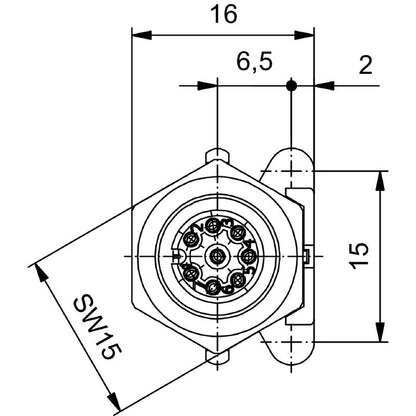

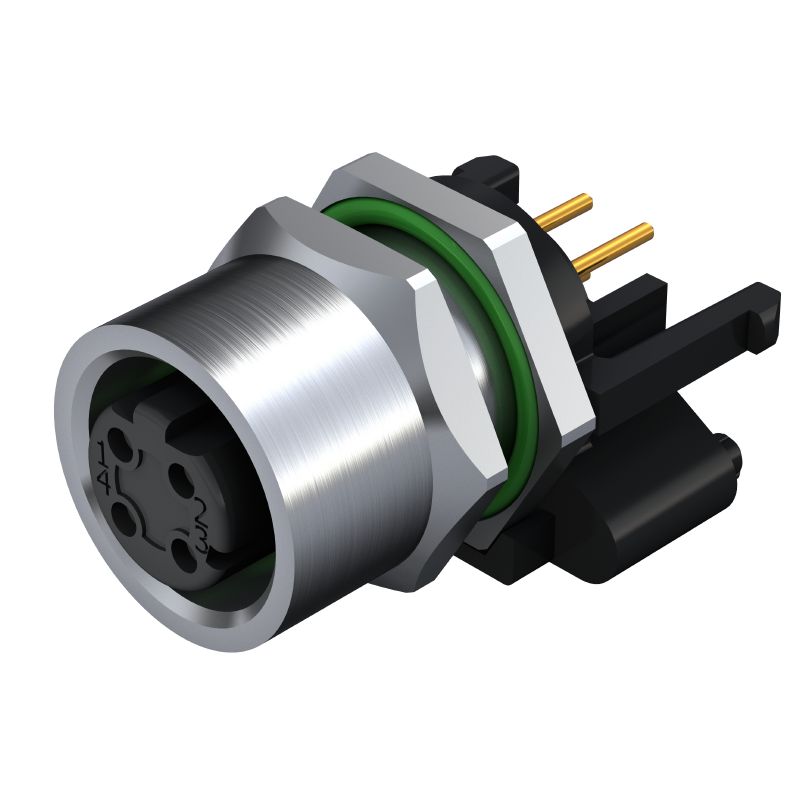

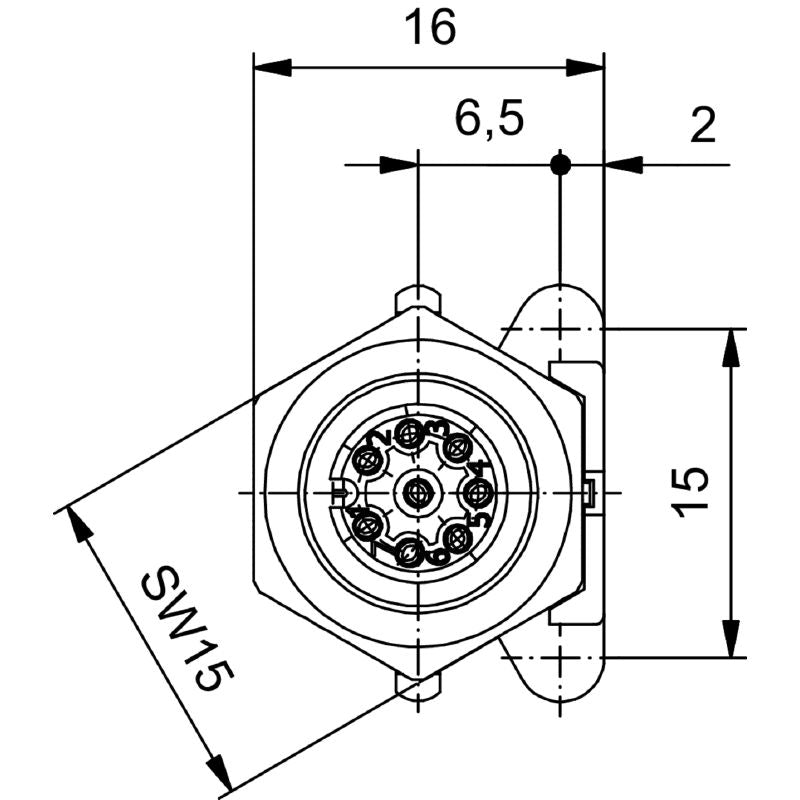

Introducing the SAIE-M12B-8S-H10TL, a reliable PCB plug-in connector that comes equipped with integrated M12 connectors This product boasts a mounting thread size of M12 and provides a configuration of 8 poles It features a compact installation height of 10 mm and is engineered to handle a nominal voltage of 30 V with a current rating of 2 A This connector is built to perform seamlessly in temperatures ranging from -30 °C to 80 °C.

With an impressive IP67 protection rating, it offers excellent resistance to both water and dust, making it a strong choice for various applications.

Features and Benefits:

•Compliant with RoHS regulations.

•A-coded for specific usage.

•Rear panel mounting type.

•Compatible with various plug cycles.

•High insulation resistance of 100 MΩ.

Specifications:

Housings	M12 socket
Mounting thread	M12
Temperature range	-30…80 °C
Contact surface	Au (Gold)
Housing main material	CuZn nickel-plated
Connection thread	M12
Tightening torque	M12: 0.8 Nm
Shield connection	Yes
Pollution severity	3 (2 within the sealed area)
Plugging cycles	≥ 100
Contact material	Cu-alloy
Lock nut material	Nickel-plated CuZn
Insulation resistance	100 MΩ
Number of poles	8
Protection degree	IP67
Nominal voltage	30 V
Nominal current	2 A
