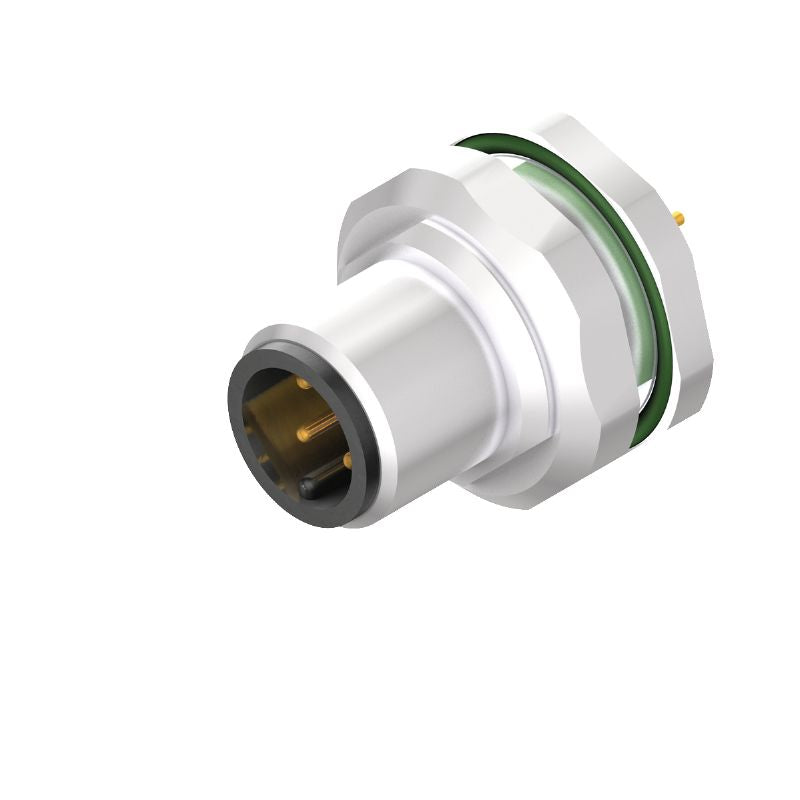

2421800000 - M16 8-Pole Connector with 5.5mm Installation Height (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIE-M12S-8-H55TL-M16 connector, expertly crafted with integrated plugs to streamline your connection needs Designed for an M16 x 15 mounting thread, this component features 8 poles and an A-coded pin housing for optimal performance Its installation height is a compact 55 mm, making it suitable for rear panel mounting This connector is compliant with RoHS standards and has successfully met regulatory exemptions, ensuring both safety and reliability in your projects.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Not shielded.

•Protection degree of IP67.

•Requires a minimum insulation resistance of 100 MΩ.

•Can endure ≥ 100 plugging cycles.

Specifications:
