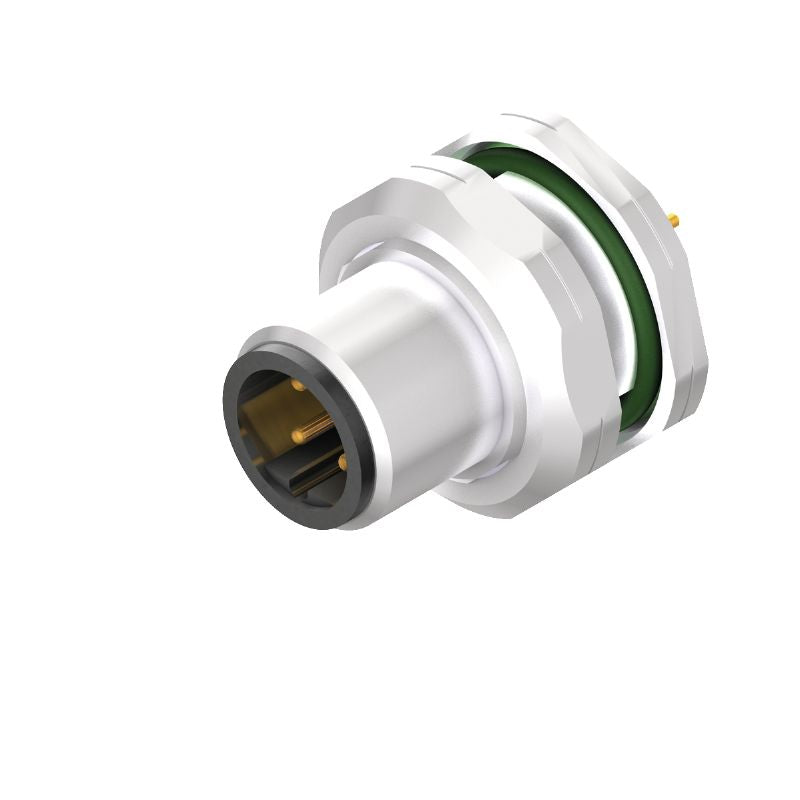

2421730000 - M12 Nickel-Plated Connector with 4 Poles and IP67 Rating (Pack of 10)

Description:

Introducing the M12 PCB plug-in connector, a reliable solution for your electrical connection needs across various settings This connector is designed with a built-in plug and features a PG9 mounting thread for secure installation With four poles and a compact installation height of just 12 mm, it offers versatility in tight spaces Crafted from nickel-plated material, this connector boasts an IP67 protection rating, ensuring it withstands challenging conditions.

It operates effectively at a nominal current of 4 A and a voltage of 250 V, withstanding temperatures from -30 to 80 °C, making it ideal for different environmental applications.

Features and Benefits:

•Coding: B-coded.

•Plugging cycles: ≥ 100.

•Rear panel mounting type.

•Insulation resistance: 100 MΩ.

•Protection degree: IP67.

•Housing main material: CuZn.

•Contact surface: Au (Gold).

•Connection thread: M12.

Specifications:
