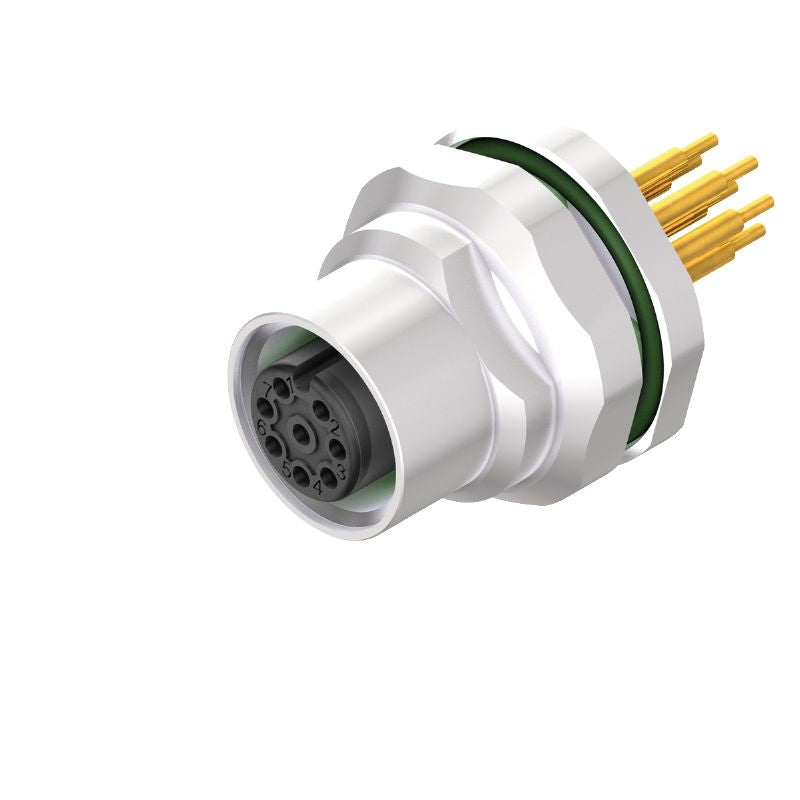

2421710000 - IP67 M12 Socket with 8 Poles and M16 Mounting Thread (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIE-M12B-8-H12TL-M16, a robust component featuring built-in plugs and an M12 socket with a threaded fitting of M16 x 15 This device supports a total of 8 poles and comes with a cable length tailored to meet specific installation requirements It adheres to RoHS regulations and has been assessed for REACH SVHC, particularly regarding its lead content With an IP67 protection rating, this product is designed to perform well in a wide range of environmental conditions.

Features and Benefits:

•Complies with RoHS requirements, with specific exemptions.

•A-coded connection for compatibility.

•Designed for rear panel mounting.

•Shield connection is not included.

•Constructed from nickel-plated CuZn material.

•Gold contact surface for better conductivity.

•Can withstand temperatures ranging from -30 to 80 °C.

•High insulation resistance of 100 MΩ.

•Able to handle a maximum tightening torque of up to 1.2 Nm.

•Durable plug with a minimum of 100 plugging cycles.

Specifications:
