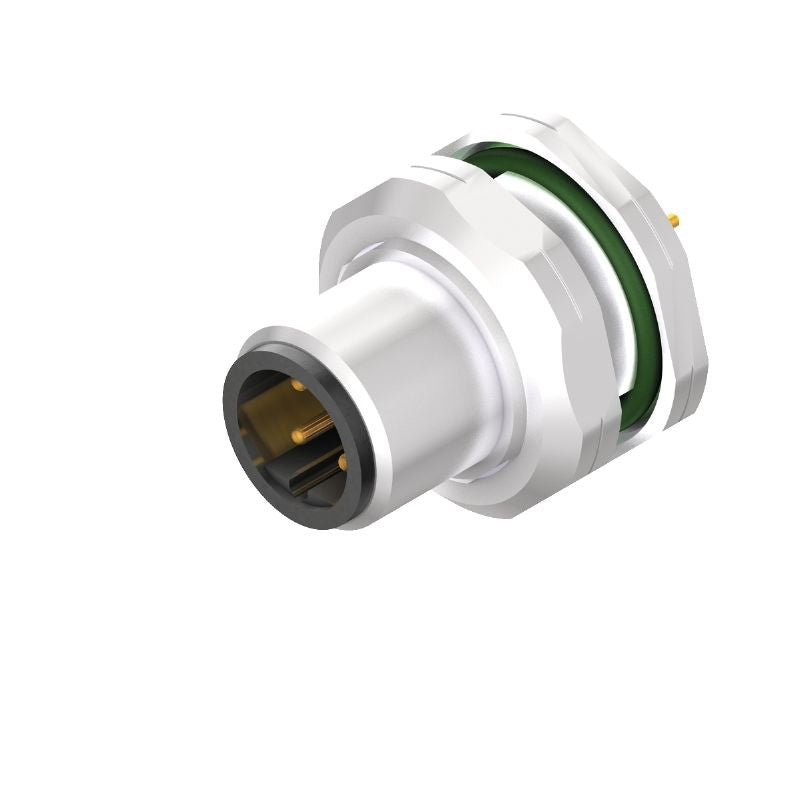

2421700000 - RoHS M12 Plug, 5.5mm Height, IP67 Protection (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 built-in plugs featuring a PG 9 mounting thread, equipped with 4 poles and designed for versatile installation These plugs are RoHS compliant and boast a compact installation height of just 55 mm Their robust nickel coating and CuZn housing provide durability and resistance against corrosion Capable of handling a voltage of 250 V and a nominal current of 4 A, these plugs are reliable in demanding environments with a temperature tolerance spanning from -30 to 80 degrees Celsius.

With an impressive IP67 rating for protection against dust and water ingress, they can withstand over 100 plugging cycles and offer excellent insulation resistance at 100 MΩ Perfect for a variety of applications, these plugs are engineered for both efficiency and longevity.

Features and Benefits:

•Nickel-plated housing.

•Rear panel mounting type.

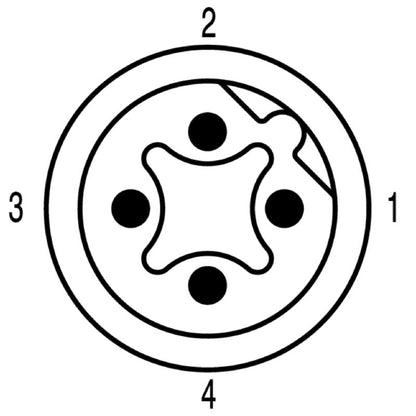

•B-coded coding.

•Protection degree IP67.

•High insulation resistance of 100 MΩ.

•Rated for over 100 plugging cycles.

Specifications:
