2421660000 - M12 4-Pole Component with M16 Thread, RoHS Compliant (Pack of 10)

SKU: SKU: 2421660000 Download PDF

Variant:

2421660000 - M12 4-Pole Component with M16 Thread, RoHS Compliant (Pack of 10)

Now $85.07

~~BEFORE $0.00~~ Now $85.07

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This component is equipped with integrated M12 plugs and is designed for mounting with a thread size of M16 x 15 It operates on a 4-pole system and complies with RoHS standards, including specific exemptions Weighing 20 grams, this product is engineered for durability and optimal performance across a variety of applications.

Features and Benefits:

•A-coded housing for the PCB plug-in connector.

•IP67 protection degree for dust and water resistance.

•Rear panel mounting type enhances stability.

•Rated for a nominal voltage of 250 V.

•Can handle a nominal current of 4 A.

Specifications:

Installation height	12 mm
Number of poles	4
Nominal voltage	250 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range	-30…80 °C
Shield connection	No
Contact material	Cu-alloy
Contact surface	Au (Gold)

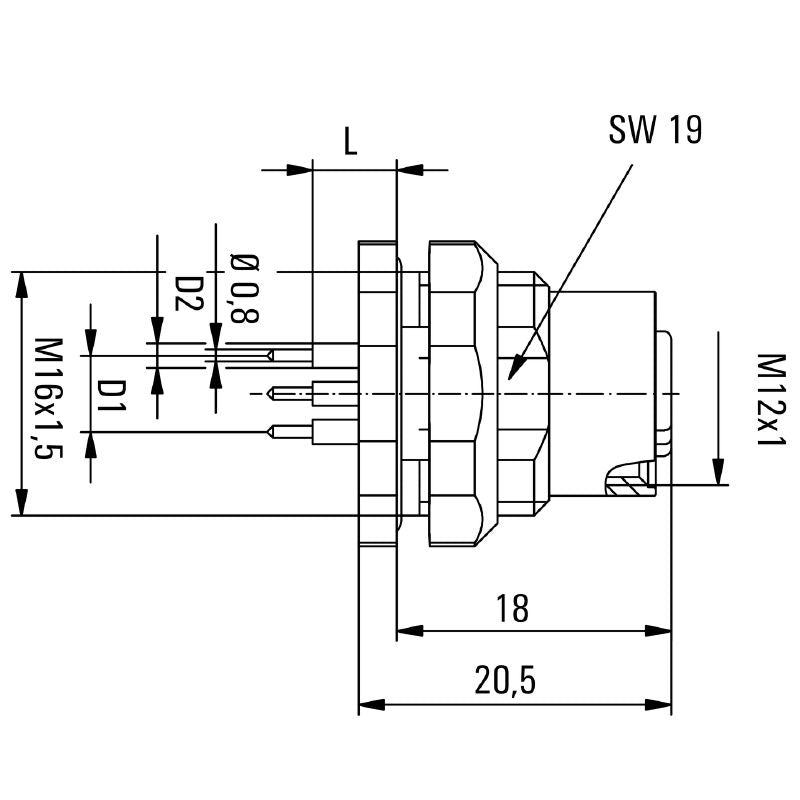

Mounting thread	M 16 x 1.5
Insulation resistance	100 MΩ
Plugging cycles	≥ 100
Tightening torque	M12: 0.8 Nm
Mounting torque max	1.2 Nm
Pollution severity	3 (2 within the sealed area)
