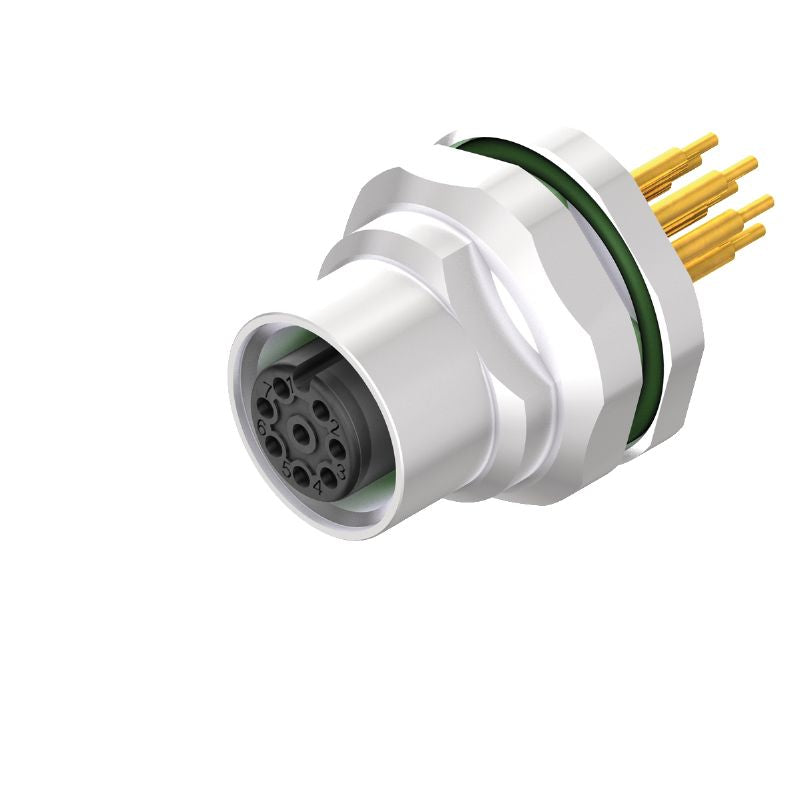

2421640000 - M12 8-Pole Connector, IP67, 5.5mm Height, Gold Contacts (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

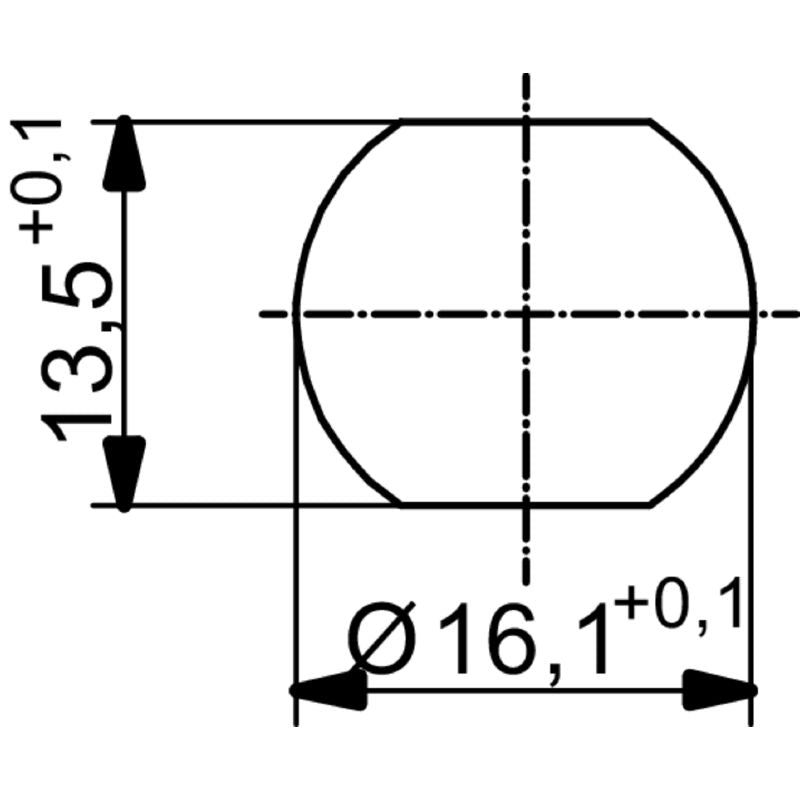

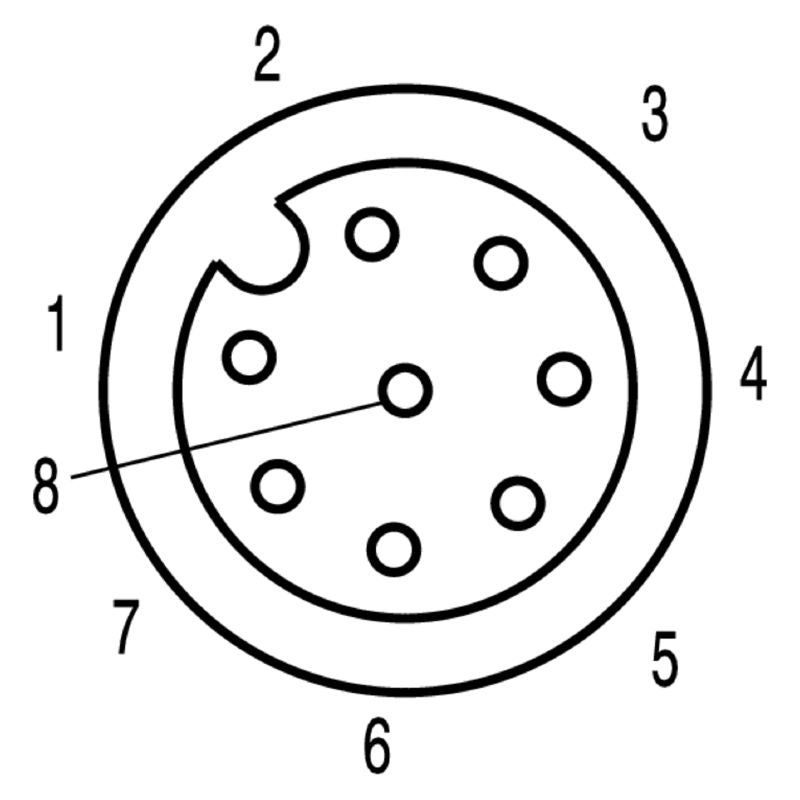

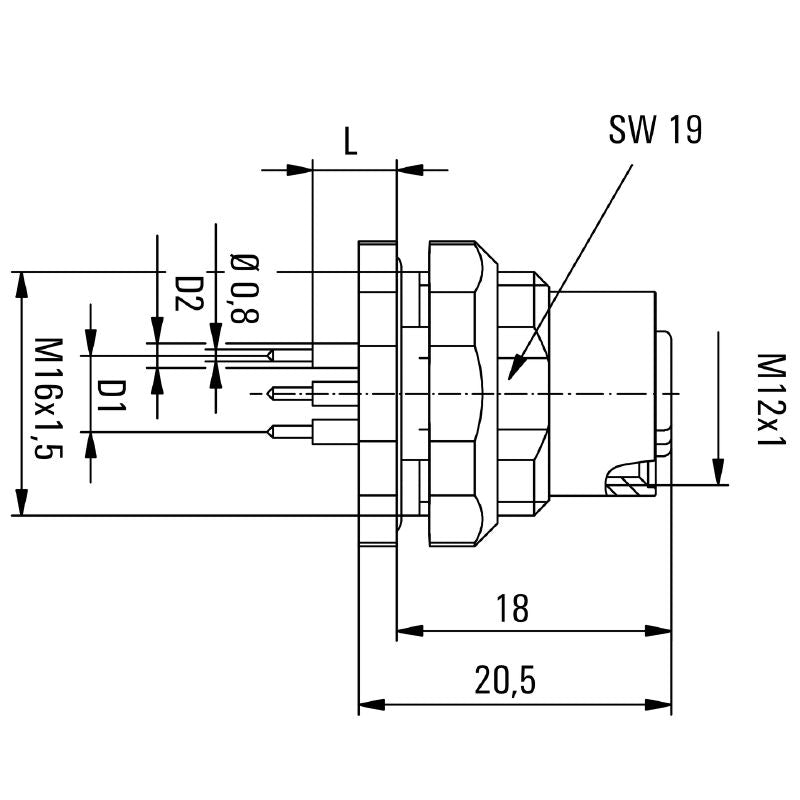

Discover the reliability of this M12 connector, equipped with built-in plugs and an M 16 x 15 mounting thread This component boasts 8 poles and is designed for an installation height of 55 mm It supports a nominal voltage of 30 V, with specific maximum voltage ratings of 250 V for 4-pole, 60 V for 5-pole, and 30 V for 8-pole configurations The nominal current capability is 2 A, while it can handle up to 4 A for 4- and 5-pole variants and maintain 2 A for the 8-pole setup.

Engineered to perform optimally in temperatures ranging from -30°C to 80°C, this connector is rated IP67 for protection against dust and water A gold (Au) contact surface ensures excellent conductivity, and the housing is made of durable nickel-plated copper-zinc (CuZn) The M12 connection thread features a tightening torque specification of 08 Nm, allowing for a maximum mounting torque of 12 Nm With an insulation resistance of 100 MΩ, it is suitable for level 3 pollution environments and is designed to withstand over 100 plugging cycles.

Features and Benefits:

•IP67 protection degree.

•Compatible with M12 connection thread.

•Plugging cycles rated at ≥ 100.

•Nickel-plated CuZn housing for durability.

•A-coded for easier identification.

Specifications:
