Product Information

Description:

Introducing a high-performance built-in connector with M12 plugs, featuring a robust mounting thread of M 16 x 15 This connector is equipped with 4 poles and weighs just 20 grams, making it a lightweight yet reliable choice It adheres to RoHS standards, including some exemptions, and does contain lead as a registered Substances of Very High Concern (SVHC) under REACH regulations Tailored for seamless rear panel installation, this connector operates efficiently within a voltage range of up to 250V.

Features and Benefits:

•A-coded connector.

•IP67 protection degree (dust and water resistant).

•Nickel-plated housing material for durability.

•High insulation resistance of 100 MΩ.

•Plugging cycles rated at ≥ 100, enhancing longevity.

Specifications:

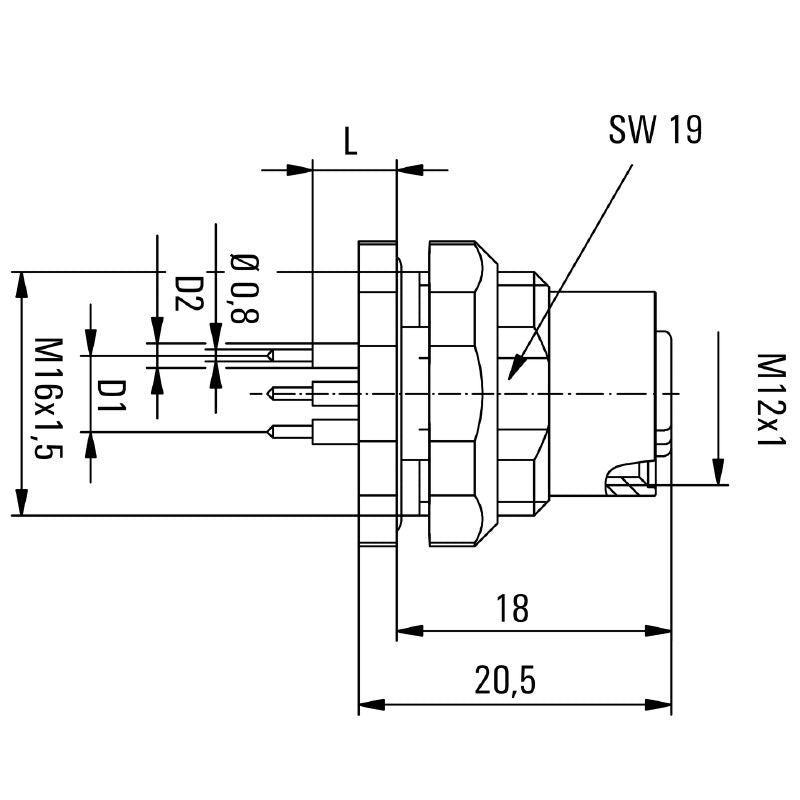

Mounting thread	M 16 x 1.5

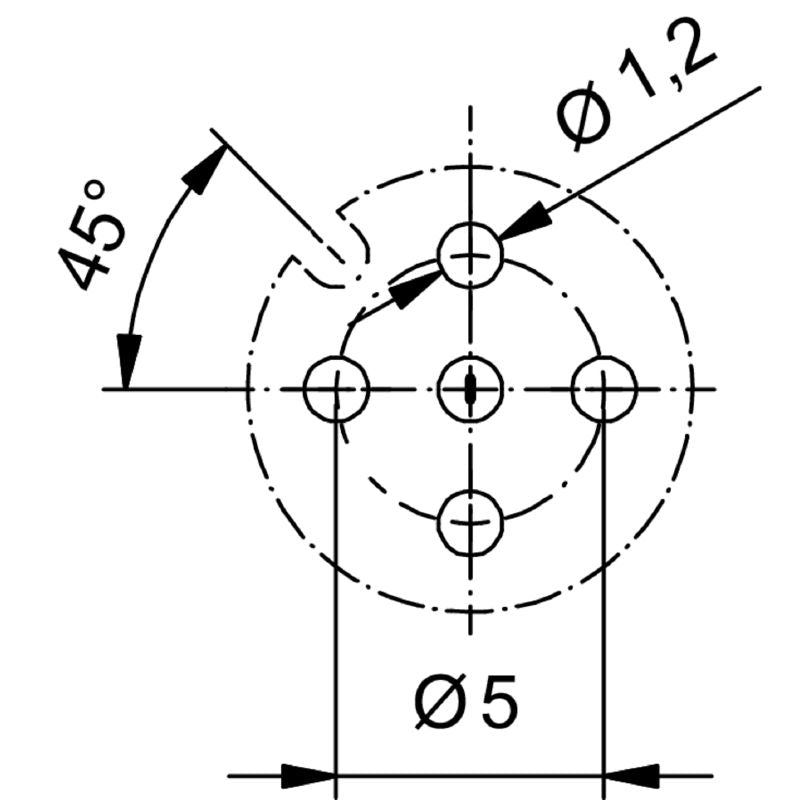

Number of poles	4
Nominal voltage	250 V
Rated voltage	250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Temperature range	-30…80 °C
Shield connection	No
Tightening torque	M12: 0.8 Nm
Mounting torque max.	1.2 Nm
Material of the flange-mounted housing	Nickel-plated CuZn
Contact material	Cu-alloy
Contact surface	Au (Gold)
Pollution severity	3 (2 within the sealed area)
