2421590000 - M8 5-Pole PCB Connector, IP67, RoHS Compliant, -30 to 80°C (Pack of 10)

2421590000 - M8 5-Pole PCB Connector, IP67, RoHS Compliant, -30 to 80°C (Pack of 10)

SKU: 2421590000   Download PDF

Select a Variant:
  • 2421590000 - M8 5-Pole PCB Connector, IP67, RoHS Compliant, -30 to 80°C (Pack of 10)
Qty:
Now $82.50   Web pricing policy
BEFORE   $0.00 Now $82.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

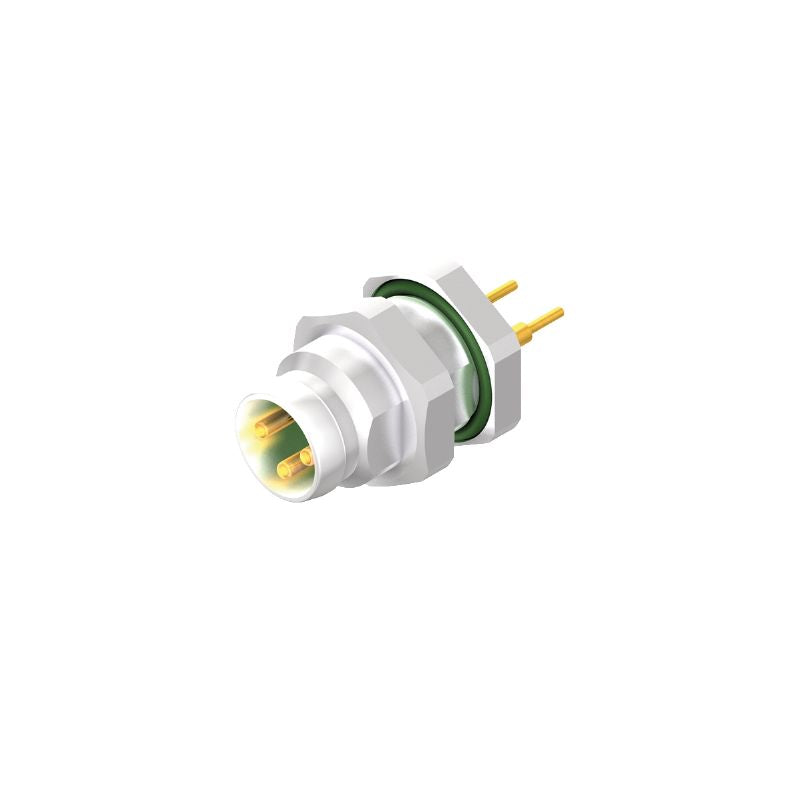

Introducing a versatile PCB plug-in connector designed with an M8 configuration This connector features a robust mounting thread of M8 and comes with 5 poles, making it ideal for a wide range of installations Compliant with RoHS standards and holding a RoHS exemption status of 6c, it meets modern environmental regulations It operates effectively within a temperature range of -30 to 80 degrees Celsius and is rated IP67 for protection, ensuring reliability even in tough conditions.

Weighing in at just 68 grams, it supports a nominal voltage of 30V with a rated voltage of 60V for 3 poles, and 30V for 4, 5, and 8 poles Built with a durable construction and gold contact surface, this connector guarantees long-lasting performance with an impressive lifespan of at least 100 plugging cycles.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Temperature range from -30 to 80 degrees Celsius.

    •Protection degree of IP67.

    •Gold-plated contact surface for enhanced conductivity.

    •Suitable for rear panel mounting.

    •Compatible with M8 threads.

Specifications:

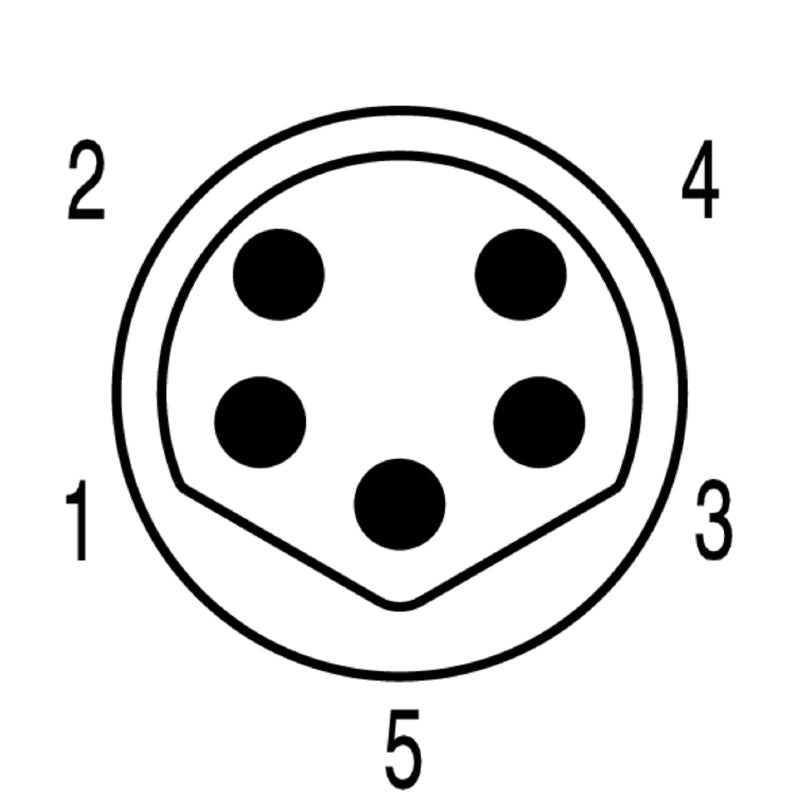

 Number of poles 5
 Installation height 5.5 mm
 Nominal voltage 30 V
 Rated voltage 60 V (3-pole) / 30 V (4-, 5-, and 8-pole)
 Nominal current 4 A
 Rated current 4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
 Shield connection No
 Connection thread M8
 Tightening torque M8: 0.5 Nm
 Mounting torque max 0.8 Nm
 Insulation resistance 100 MΩ
 Plugging cycles ≥ 100
 Contact material Cu-alloy
 Seal material NBR
 Material of the flange-mounted housing Nickel-plated CuZn
 Grouting material PUR
