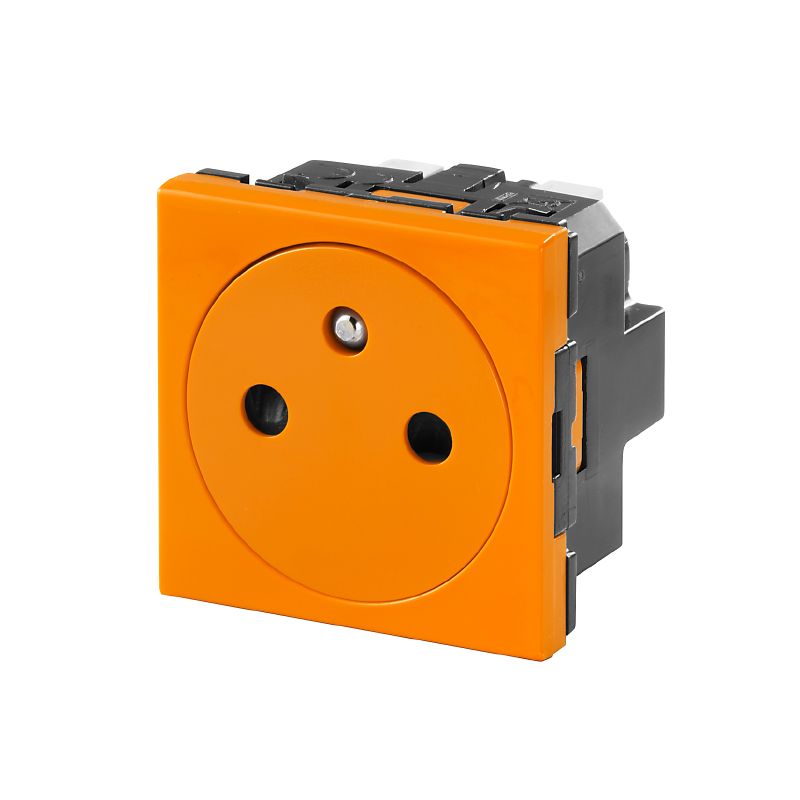

2007230000 - Type E Large Power Socket Connector, 16A, RoHS Compliant

2007230000 - Type E Large Power Socket Connector, 16A, RoHS Compliant

SKU: 2007230000   Download PDF

Select a Variant:
  • 2007230000 - Type E Large Power Socket Connector, 16A, RoHS Compliant
Qty:
Now $17.00   Web pricing policy
BEFORE   $0.00 Now $17.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the Type E large insert power socket connector, a reliable choice for your electrical needs This connector is RoHS compliant and operates without any exemptions It accommodates clampable conductors featuring flexible wire end ferrules with cross-sectional dimensions ranging from 15 mm² to 25 mm², making it versatile for various applications With a storage temperature capability from -10 °C to 70 °C, it functions best in conditions between -5 °C and 35 °C.

Crafted from durable polycarbonate (PC), this product supports a nominal current of 16 A at a rated voltage of 250 V and adheres to numerous classification standards for quality assurance.

Features and Benefits:

    •RoHS compliant.

    •Insert type is Insert Power large.

    •IP20 protection degree.

    •Push-in type of connection.

    •Accommodates a variety of conductor connection cross-sections.

Specifications:

 Storage temperature -10 °C...70 °C
 Operating temperature -5 °C...35 °C
 Fire load 840 kJ
 Stripping length 12 mm
 Nominal current 16 A
 Rated voltage (AC) 250 V
 Clampable conductors 1.5 ... 2.5 mm²
 Housing main material Polycarbonate PC
 ETIM Classification EC001121
 ECLASS Classification 27-44-03-90
