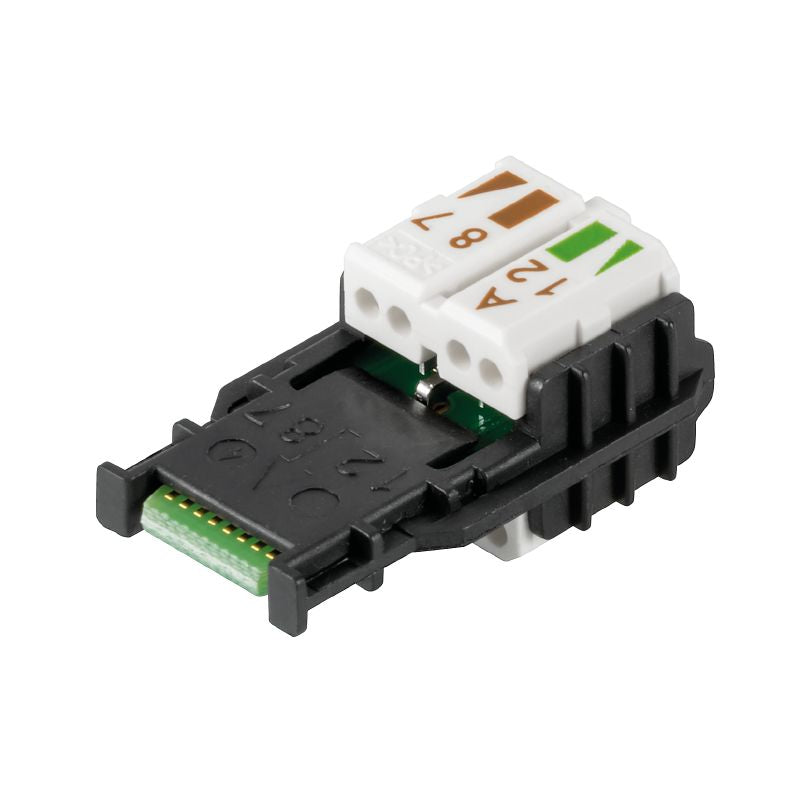

1992920000 - Cat.6 A RJ45 Wire Manager, RoHS Compliant, -40°C to 85°C (Pack of 30)

1992920000 - Cat.6 A RJ45 Wire Manager, RoHS Compliant, -40°C to 85°C (Pack of 30)

SKU: SKU: 1992920000 Download PDF

Variant:
  • 1992920000 - Cat.6 A RJ45 Wire Manager, RoHS Compliant, -40°C to 85°C (Pack of 30)
Regular price Now $337.79
Regular price BEFORE   $0.00 Sale price Now $337.79
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the IE-PI-RJ45-FH-A-11, your go-to solution for managing RJ45 connections This wire manager meets Cat6 A and Class E A standards as specified by ISO/IEC 11801 2010, ensuring reliable performance Environmentally conscious users will appreciate its compliance with RoHS regulations, as it contains no substances of very high concern (SVHC) exceeding 01 weight percent Built to withstand extreme conditions, this product functions effectively within a wide temperature range of -40 °C to 85 °C, making it a robust choice for any application.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Wiring standard complies with EIA/TIA T568 A.

    •IP20 protection degree.

    •Capable of being reconnected up to 4 cycles with the same cross-section.

    •Compatible with PoE / PoE+ standards conforming to IEEE 802.3at.

Specifications:

 Operating Temperature: -40 °C to 85 °C
 Insulation Cross-Section (min): 0.85 mm
 Insulation Cross-Section (max): 1.1 mm
 Connection Diameter (solid): 0.41 to 0.51 mm
 Conductor Connection Cross-Section (solid, AWG): AWG 26 to AWG 24
 Connection Diameter (flexible): 0.46 to 0.61 mm
 Conductor Connection Cross-Section (flexible, AWG): AWG 27 to AWG 24
 Contact Resistance: ≤ 20 mΩ
 Current-Carrying Capacity at 50 °C: 1 A
 Dielectric Strength (contact/contact): ≥ 1000 V AC/DC
 Dielectric Strength (contact/shield): ≥ 1500 V AC/DC
 Connector Standard: IEC 60603-7-51
 Certificate No. (cURus): E471884
