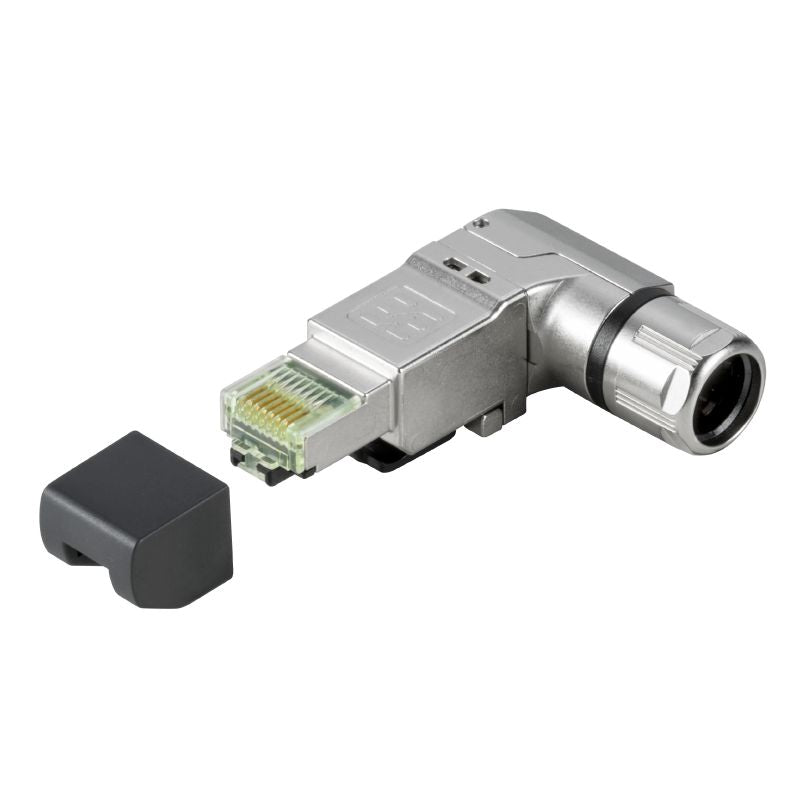

1992890000 - Angled Cat.6 RJ45 Plug with Piercing Contacts

SKU: SKU: 1992890000 Download PDF

Select a Variant:

1992890000 - Angled Cat.6 RJ45 Plug with Piercing Contacts

SET THE QTY:

Now $20.57 Web pricing policy

~~BEFORE $0.00~~ Now $20.57 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliable connectivity with this angled RJ45 plug, crafted specifically for Cat6 applications It boasts sharp piercing contacts and meets the ISO/IEC 11801 2010 as well as the EIA/TIA T568 B standards This plug is designed to perform in extreme conditions, operating efficiently in temperatures ranging from -40 °C to 85 °C Additionally, it complies with RoHS regulations, ensuring it is environmentally friendly without any exemptions.

Features and Benefits:

•Angled outlet direction for versatile installation.

•Constructed with a zinc diecast, nickel-plated housing.

•Contains piercing contacts for effective connectivity.

•Allows a connection with solid and flexible conductors.

Specifications:

Order No.	1992890000
GTIN (EAN)	4050118378122
Insulation cross-section, min.	1.1 mm
Insulation cross-section, max.	1.6 mm
Category	Cat.6 A / Class E A (ISO/IEC 11801 2010)
Connection diameter, solid	0.51...0.64 mm
Conductor connection cross-section, solid (AWG)	AWG 24...AWG 22
Connection diameter, flexible	0.46...0.76 mm
Conductor connection cross-section, flexible (AWG)	AWG 27...AWG 22
Conductor connection cross-section, extremely flexible	0.61...0.78 mm
Conductor connection cross-section, extremely flexible (AWG)	AWG 24...AWG 22
Sheath diameter, min.	5 mm
Sheath diameter, max.	9 mm
Shielding	360° all-round enclosure
Protection degree	IP20
Plugging cycles	750
Ability to reconnect	≤ 4 cycles (with the same cross-section)
Contact resistance	≤ 20 mΩ
Current-carrying capacity at 50 °C	1 A
Dielectric strength, contact / contact	≥ 1000 V AC/DC
Dielectric strength, contact / shield	≥ 1500 V AC/DC
Insulation resistance	≥ 500 MΩ
PoE / PoE+	conforming to IEEE 802.3at
General standards	{'Certificate no. (cULus)': 'E471884', 'Connector standard': 'IEC 60603-7-51'}
ETIM classification	EC001121
ECLASS classification	27-44-03-90
