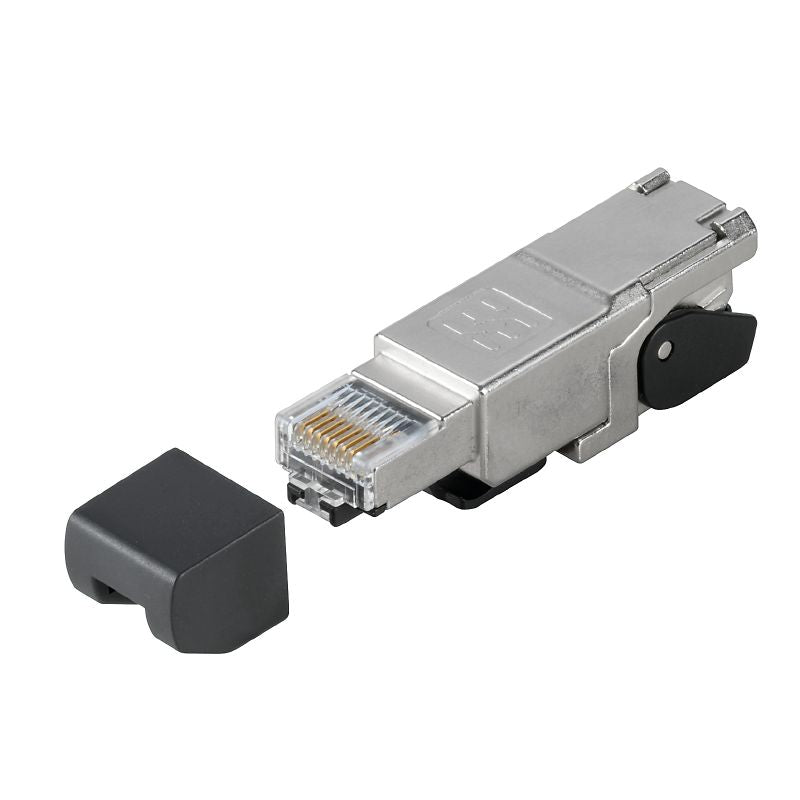

1992860000 - Cat.6A RJ45 Plug with Piercing Contacts, Straight Connection

1992860000 - Cat.6A RJ45 Plug with Piercing Contacts, Straight Connection

SKU: 1992860000   Download PDF

Select a Variant:
  • 1992860000 - Cat.6A RJ45 Plug with Piercing Contacts, Straight Connection
Qty:
Now $18.73   Web pricing policy
BEFORE   $0.00 Now $18.73 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Enhance your networking setup with this RJ45 plug, featuring advanced piercing contacts for reliable straight connections Compliant with Cat6A / Class EA standards as per ISO/IEC 11801:2010 and EIA/TIA T568 B, this plug guarantees excellent performance It also carries UL certification (file number E471884), ensuring a dependable and high-quality connection for all your networking needs.

Features and Benefits:

    •Operating temperature range from -40 °C to 85 °C.

    •RoHS compliant without exemption.

    •Able to accommodate solid conductors ranging from AWG 26 to AWG 24.

    •Able to accommodate flexible conductors ranging from AWG 27 to AWG 24.

    •Contact surface made of gold over nickel.

    •360° all-round shielding.

    •IP20 protection degree.

    •Ability to withstand up to 750 plugging cycles.

Specifications:

 Connection 1 RJ45
 Connection 2 Piercing
 Housing main material Zinc diecast, nickel-plated
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.1 mm
 Category Cat.6A / Class EA
 Connection diameter, solid 0.41...0.51 mm
 Connection diameter, flexible 0.46...0.61 mm
 Sheath diameter, min. 5 mm
 Sheath diameter, max. 9 mm
 Contact resistance ≤ 20 mΩ
 Current-carrying capacity at 50 °C 1 A
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 Insulation resistance ≥ 500 MΩ
 PoE / PoE+ conforming to IEEE 802.3at
 Connector standard IEC 60603-7-51
 ETIM 6.0 EC001121
 ETIM 7.0 EC001121
 ETIM 8.0 EC001121
 ETIM 9.0 EC001121
 ETIM 10.0 EC001121
 ECLASS 9.0 27-44-03-90
 ECLASS 9.1 27-44-03-90
 ECLASS 10.0 27-44-03-90
 ECLASS 11.0 27-44-03-90
 ECLASS 12.0 27-44-03-90
 ECLASS 13.0 27-44-03-90
 ECLASS 14.0 27-44-03-90
 ECLASS 15.0 27-44-03-90
