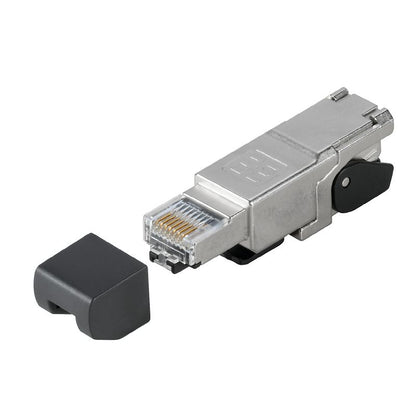

1992820000 - Cat.6 Straight RJ45 Plug, RoHS Compliant, -40°C to 85°C

1992820000 - Cat.6 Straight RJ45 Plug, RoHS Compliant, -40°C to 85°C

SKU: 1992820000   Download PDF

Select a Variant:
  • 1992820000 - Cat.6 Straight RJ45 Plug, RoHS Compliant, -40°C to 85°C
Qty:
Now $16.24   Web pricing policy
BEFORE   $0.00 Now $16.24 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing our RJ45 plug, specially crafted for Cat6 applications with innovative piercing contacts Adhering to the Class EA specifications from ISO/IEC 11801:2010 and EIA/TIA T568 A standards, this plug ensures high performance It is fully compliant with RoHS regulations without any exceptions With an operational temperature range between -40 °C to 85 °C, this product is adaptable to a wide variety of environments, making it a reliable choice for any networking needs.

Features and Benefits:

    •Straight outlet direction.

    •Connection 1 is RJ45 and connection 2 is Piercing.

    •Category classification as Cat.6 A / Class E A according to ISO/IEC 11801 2010.

    •Plugging cycles rated up to 750.

    •360-degree all-round enclosure for shielding.

    •IP20 Protection degree.

Specifications:

 UL File Number E471884
 Insulation cross-section, min. 1.1 mm
 Insulation cross-section, max. 1.6 mm
 Contact surface Gold over nickel
 Connection diameter, solid 0.51...0.64 mm
 Conductor connection cross-section, solid (AWG) AWG 24...AWG 22
 Connection diameter, flexible 0.46...0.76 mm
 Conductor connection cross-section, flexible (AWG) AWG 27...AWG 22
 Conductor connection cross-section, extremely flexible 0.61...0.78 mm, Approval of the cable by Weidmüller necessary
 Conductor connection cross-section, extremely flexible (AWG) AWG 24...AWG 22, Approval of the cable by Weidmüller necessary
 Sheath diameter, min. 5 mm
 Sheath diameter, max. 9 mm
 Contact resistance ≤ 20 mΩ
 Current-carrying capacity at 50 °C 1 A
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 Insulation resistance ≥ 500 MΩ
 PoE / PoE+ conforming to IEEE 802.3at
 Connector standard IEC 60603-7-51
